CONTROLLER
DZR-45
USER MANUAL
24-02-2016 version 1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DZR-45 and is the answer not in the manual?

Questions and answers

Related Manuals for Contronics DZR-45

Summary of Contents for Contronics DZR-45

  • Page 1 CONTROLLER DZR-45 USER MANUAL 24-02-2016 version 1.6...
  • Page 2 DZR-45 Contronics Engineering B.V., Ambachtsweg 8, 5492 NJ Sint-Oedenrode, The Netherlands, hereby declares that the product DZR-45, produced and delivered by Contronics Engineering B.V., are in accordance with the following CE directives: EMC-Directive : 2014/30/EU Directive for low-voltage electrical installation...

  • Page 3: Table Of Contents

    DZR-45 Table of content 1. PREFACE ��������������������������������������������������������������������������������������������������������� 4 2. INTRODUCTION ��������������������������������������������������������������������������������������������� 4 3. CONTENT OF THE DELIVERY �������������������������������������������������������������������� 4 4. DESCRIPTION OF THE CONTROLLER ���������������������������������������������������� 5 5. WALL-MOUNTING OF THE CONTROLLER ��������������������������������������������� 6 6. CONNECTIONS����������������������������������������������������������������������������������������������� 7 7. OPERATION ����������������������������������������������������������������������������������������������������� 8 8.

  • Page 4: Preface

    This user manual contains the operating and installation instructions for the DZR-45 model controller. 2. INTRODUCTION The DZR-45 is a hygrostat used to accurately regulate air humidity in rooms. The DZR-45 is fitted with the following as standard: - Graphic readout screen (multi-lingual).

  • Page 5: Description Of The Controller

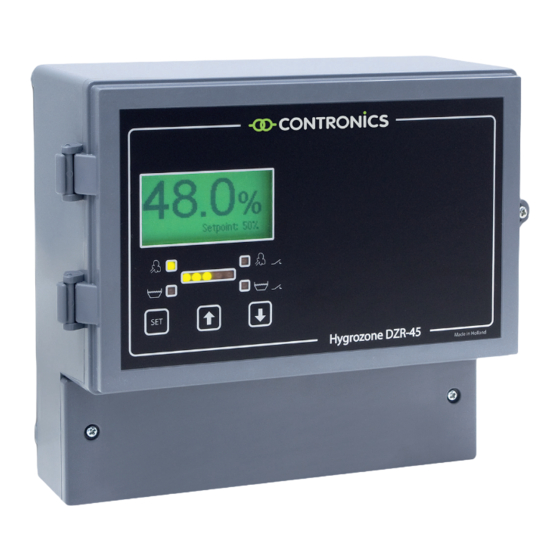

    DZR-45 4. DESCRIPTION OF THE CONTROLLER Hygrozone DZR-45 Made in Holland Figure 1. Description and connections A Readout window B Indication LEDs C Pushbuttons D Securing screw for the upper cover E On/Off switch F Holes for wall mounting G Perforated plate...

  • Page 6: Wall-Mounting Of The Controller

    At least 26 cm. Object or wall Eye level Hygrozone DZR-45 Made in Holland Figure 2. Installation of the controller The controller must be mounted on an interior wall, preferably in a clean room where the humidity level is not excessive. Do not mount the controller above a heating system or the like.

  • Page 7: Connections

    DZR-45 6. CONNECTIONS NC NO L’ L N Relay 1 Relay 4 Relay 3 Relay 2 Figure 4. Connections HS-91 connections Connection Colour Description Brown Sensor 2 – HS-91 +12V Grey Sensor 2 – HS-91 RH Yellow Sensor 2 – HS-91 temperature Green Sensor 2 –...

  • Page 8: Operation

    DZR-45 Relais connections Relay Function Humidification Dehumidification or humidification 2 Thermostat Alarm 230V connection Connect the incoming mains voltage to terminals L and N. When the main switch is set to ‘On’, L will be connected through to L’. It is then possible to connect, a humidifier to L’, for example.

  • Page 9: Screen Setting

    Press to leave the menu. Basic configuration for DZR-45 The DZR-45 has 3 different configurations, which can be selected via this menu. Single hygrostat Single hygrostat with 1 humidity sensor, 1 humidification output and 1 dehumidification output. For more data, see General Hygrostat Operation.
  • Page 10 DZR-45 Hygrostat with max. This hygrostat operates in the same manner as the single hygrostat, but with an additional sensor for maximum humidification. The additional sensor can be placed in an air channel in order to limit the maximum humidity.
  • Page 11 DZR-45 Block configuration The block configuration becomes active if Block mode is selected under DZR Configuration. This configuration makes it possible to use time or another external signal to operate the regulator in another manner. Firstly, the correct time needs to be set.
  • Page 12 DZR-45 Sensor settings Two HS-91 humidity sensors can be connected to the DZR-45. It is also possible to connect 1 HS-10 humidity sensor to sensor input 1, instead of an HS-91. Select the correct type of sensor as follows: Sensor settings menu -> sensor 1 -> sensor type setting.
  • Page 13 Output The hygrostat generates a 0-100% signal that corresponds to a 0-10V signal at the outputs of the DZR-45. Relay 1 switches on if Output 1 reaches 100% (10V), it switches off when Output 1 is below 95% (9.5V) again.

  • Page 14: Technical Data

    0 - 50 °C Dimensions: L 267 x W 225 x H 104 mm Housing protection class: IP-54 with closed cover. Accessories: HS-10: Relative humidity sensor ± 5%. HS-91: Relative humidity sensor ± 2%. HK-01: Connection cable for Contronics humidifier.

  • Page 15: Menu Overview

    DZR-45 10. MENU OVERVIEW Main screen DZR configuration Single hygrostat Hygrostat with max Double hygrostat Block mode Block settings Standard block Humidity setpoint Temperature setpoint Capacity Fluid type Dead zone Minimum humidification Maximum humidification Mode <<<--- Blok 1 Switch on...

  • Page 16: Factory Setting And Range

    DZR-45 11. FACTORY SETTING AND RANGE Para- Min. Max. Factory setting meter setting Configuration Single hygrostat Single hygrostat Hygrostat with max. Double hygrostat Block mode Hygrostat Humidity set point (1/2) / block X Dead zone 10,0 ˚C Humidification bandwidth Minimum...
  • Page 17 DZR-45 Para- Min. Max. Factory setting meter setting Flush Idle time Default 2 min Filling time Default 30 sec Thermostat Set point ˚C Sensor selection Sensor 1 Sensor 2 Mode Cooling Heating Hysteresis Alarm Minimum humidity Maximum humidity Minimum ˚C...
  • Page 18 DZR-45 NC NO L’ L N Relais 4 Relais 3 Relais 2 Relais 1 Network cable Electrical distribution HS-91 board HK-01 Figure 10. Connection diagram single hygrostat. NC NO L’ L N Relais 4 Relais 3 Relais 2 Relais 1...
  • Page 19 DZR-45 NC NO L’ L N Relais 4 Relais 3 Relais 2 Relais 1 Network cable HS-91 (Sensor 2) Electrical distribution HS-91 board (Sensor 1) HK-01 Figure 12. Connection diagram hygrostat with maximun control. NC NO L’ L N Network cable...
  • Page 20 DZR-45 NO NC L’ L N Relais 1 Relais 4 Relais 3 Relais 2 Network cable Electrical distribution HS-91 board HK-01 Figure 14. Connection diagram for optimization of energy and water consumption.

  • Page 21: Option Dzr-45Net

    DZR-45 12. DZR-45-NET MANUAL Introduction The DZR-45NET is equipped with a Ethernet interface for remote operation and monitoring. Network Application V2 can be used for remote access to the DZR. The old Network Application is replaced by the V2 version to support the latest DZR-45NET controllers.
  • Page 22 DZR-45 Click on “Manage devices” to add, edit and remove devices from the application. Figure 16. Manage devices. Check the “Active” checkbox of the devices on the network that need to be controlled from this application. Set the network properties of each device by selecting a device and clicking on the “Properties”...
  • Page 23 DZR-45 It is recommended to leave DHCP enabled. The name can be changed to something that is easy to refer to. The Ethernet module reboots after changing properties and becomes available again within 30 seconds. Figure 18. Manage devices. Manage devices shows a list of connected devices which can be added to the application by clicking on the “Ok”...
  • Page 24 The layout is saved on closing the application and restored when opened again. Operating The display and led’s on the DZR-45 are emulated in the application to give it the same look and feel. By clicking on the buttons on the right the user gets access to more information and settings.
  • Page 25 DZR-45 Figure 21. Graph. Each individual item can be enabled or disabled as desired. By selecting a different month, historical data can be shown in the graph. Updates The Network Application will check for updates each time the application is launched and the user can choose to download the new version.
  • Page 26 DZR-45...
  • Page 27 DZR-45 DISCLAIMER Contronics works continuously on the further development of its products. We therefore reserve the right to modify the design, construction and technology of the product at any time. For this reason, no claims can be made based on the data, illustrations and description in this user manual.
  • Page 28 DZR-45 P.O. Box 144 5490 AC Sint-Oedenrode The Netherlands Telephone: +31(0)413-487000 Telefax: +31(0)413-473903 Website: www.contronics.nl E-mail: info@contronics.nl...
