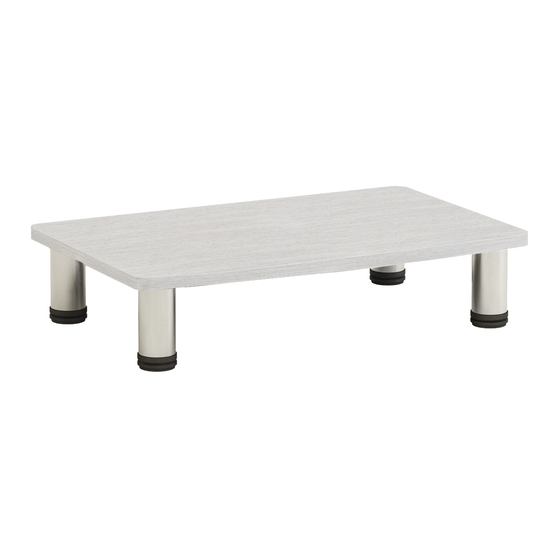

TV STAND
EN
ASSEMBLY INSTRUCTIONS
For:
FS051W
FS051B
v.16.3
Component Checklist
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.
If any parts are missing or faulty, telephone your local distributor for a replacement.
Top plate(1x)
A
40kg
(88lbs)
RATED
Screw (16x)
Support stand (4x)
C
B
1
Screw the support stands.
B
C
screw in
A
2
Flip over the mounted tv-stand.
3
Adjust the desired height (at all four support stands).
4
Done.
A x 1
B x 4
C x 16
10mm
