Summary of Contents for Boston Acoustics BA 200

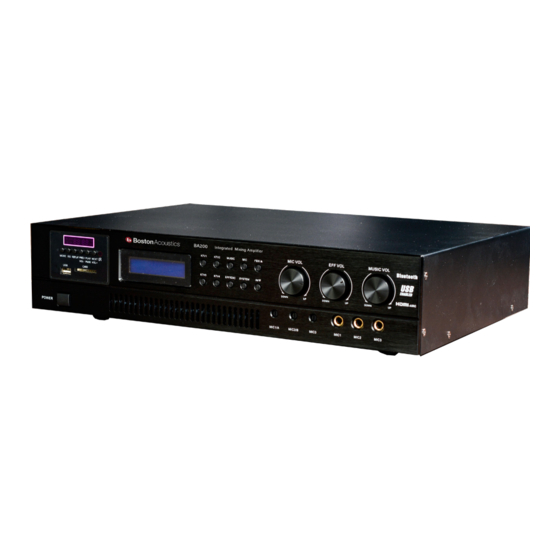

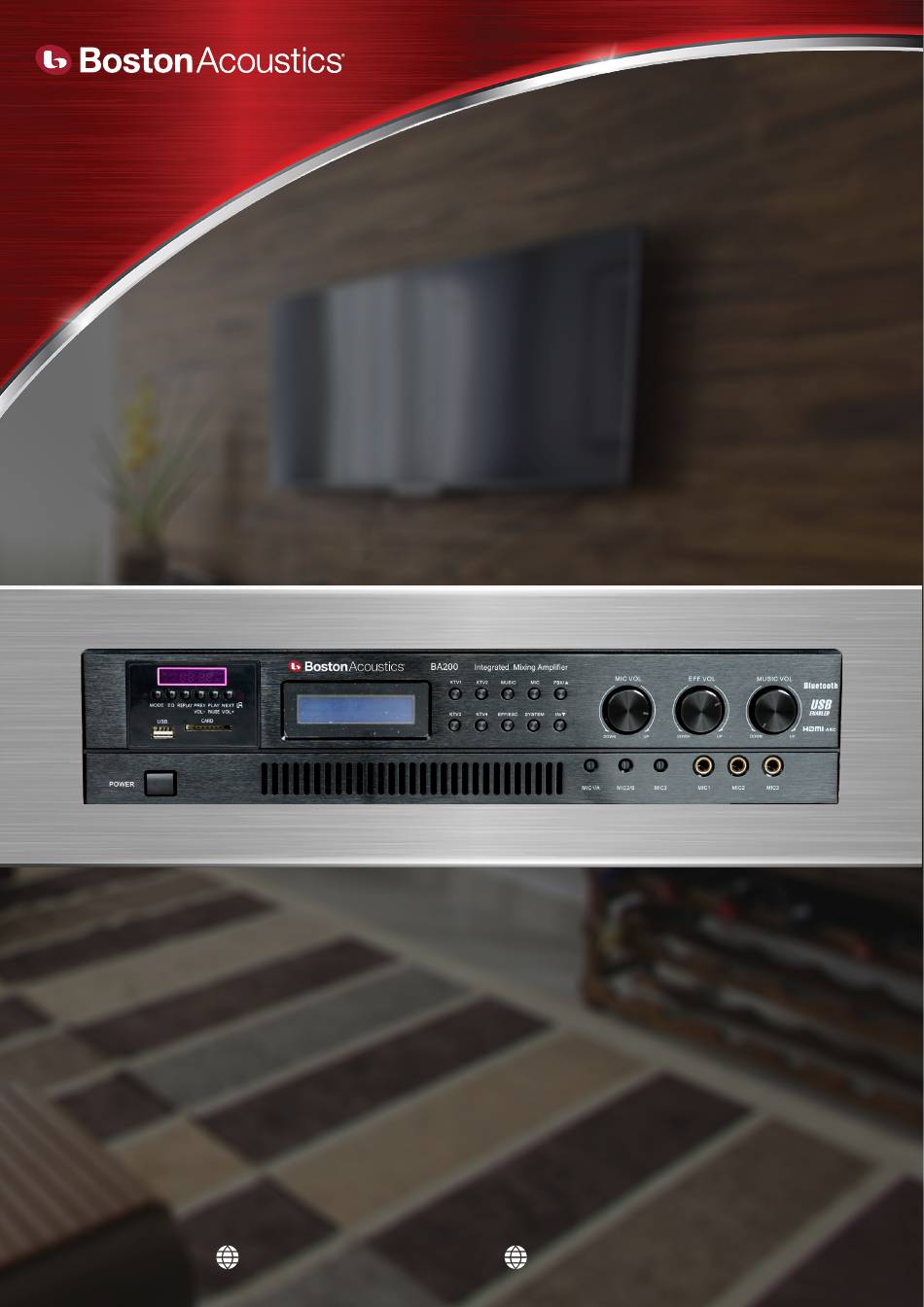

- Page 1 User Manual Boston Acoustics BA 200 Integrated Mixing Amplifier bostonacousticspro.com bostonacousticspro.vn...
- Page 2 INTRODUCTION Boston Acoustics BA series amplifiers use DSP technology with a 7-band equalizer to adjust music and a 11-band equalizer to adjust vocals. The product is equipped with the world’s top quality CPU and compo- nents for fast and accurate signal processing. BA series amplifiers also feature a variety of convenient audio inputs and an intuitively designed interface that makes it easy to make direct adjustments on the amplifier or by computer.
-
Page 3: Amplifier Front
AMPLIFIER FRONT 1. EFF VOL: Adjust the volume of effects. 2. KTV1 -> KTV4: 4 default factory pre-set effects modes combining Reverb and Echo to choose from for singing. 3. MUSIC: Set parameters for music when singing. After pressing this button, press the FBX (Up) and IN (Down) buttons to adjust Phase options (turn MIC VOL knob to select 0 °... -
Page 4: Amplifier Back Panel
AMPLIFIER BACK PANEL 1. MICA / MICB: Two-channel A / B microphone signal input port 2. BGM / AUX: 2-channel L / R Analog audio signal input port 3. SUB LINE: Subwoofer connection output port 4. SOFTWARE CONTROL: USB port for computer connection to adjust amplifier settings using software. 5. - Page 5 3 bands. Boston Acoustics BA series Amplifier has up to 10 savable presets (overwriting default modes: KTV1, 2, 3, 4 and additional modes: M4, 5, 6, 7, 8, 9). Making it easy to customize different profiles for different settings...
-
Page 6: Mic Section
MIC SECTION Navigate with the FBX (up) / IN (down) button, the mic customizations list features the following sections: Phase: phase adjustment 0 ° -180 ° .2. EQ BYPASS / ON/OFF: turn EQ on/off HPF FREQ / 10 - 300HZ: cut off excess low frequencies EQ 1 ->... - Page 7 EFF/ESC SECTION Press the EFF / ESC button to enter the effects customizations list. Hold this button for 3 seconds to return to the main screen. Navigate with the FBX (up) and IN (down) buttons, the effects customizations list features following sections: Echo: the echo of your voice Reverb: the reflection/repetition of your voice...
-
Page 8: Other Sections
OTHER SECTIONS Rev Vol (Reverb Volume): the volume of reverb Rev Pre Dly (Reverb Pre-Delay): is amount of delay before reverb starts, usually left at 0 because reverb does not need delay Rev Decay (Reverb Decay): the length of time the reverb continues TAP1 80 TAP2 85 TAP3 90... - Page 9 RECALLING YOUR SAVED CUSTOM PROFILE Press the SYSTEM button on the amplifier, the screen will display “Recall mode ...” then turn the MIC VOL knob to select one of the 10 modes (KTV1, 2, 3, 4, M4, 5, 6, 7, 8, 9). After selecting, click on SYSTEM. the screen will display “Mode ...
- Page 10 On the computer software for adjustment, in the SYSTEM section, you will see the following items: Music Init: The default volume level for music when the amplifier is turned on, turn the MIC VOL knob to adjust 0 -> 80 Music Max: Maximum volume limit for music, rotate the MIC VOL knob to adjust 0 ->...
-
Page 11: Specifications
SPECIFICATIONS Model BA200 Wattage RMS (8 Ohms) 200W / channel Microphone input sensitivity 10MV Frequency response range 20hz - 20kHz (-0.5dB) Total harmonic distortion 0.1% Wireless connection Bluetooth Analog input RCA x 2 Left / Right, microphone x 5 HDMI input Optical imput USB type A port for music SD card input...
