Rowlinson Garden Products Tenbury Arbour Manual

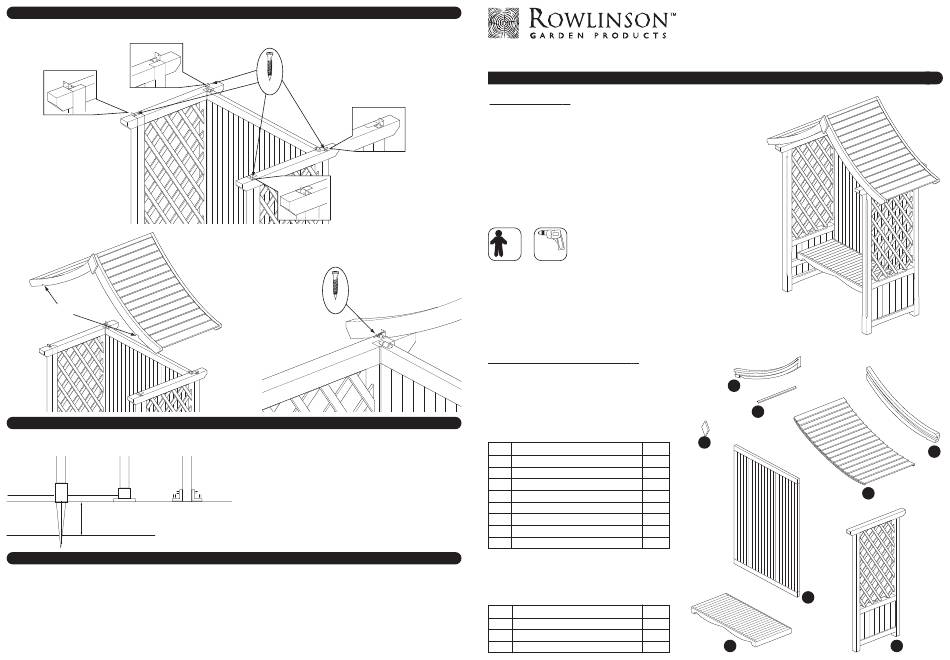

5. Roof assembly to uprights
Fix the L-brackets to the uprights using 2 x 40mm screws per bracket. Lift roof onto uprights so that rebates in the roof
rafters rest on the uprights. Secure roof to L-bracket using 2 x 40mm screws.
Rebates

6. Securing the posts

Place the arbour in the desired location. For a more permanent base fixture use a metal base fixing to secure the bottom
of the upright posts into the ground (1 & 2). If securing to decking or concrete base use metal L-brackets (3).
(1) (2)
If in doubt of any aspect regarding the assembly, use or safety of your arbour please contact us :
Help Line (Normal Office Hours) 01829 261 121
ROWLINSON GARDEN PRODUCTS LIMITED
Unit 2 Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
Tel : 01829 262 080
Fax : 01829 262 089
40mm
40mm
(1) Stake
(2) Flatbed
(3)
(3) L-Bracket
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
2006 © Rowlinson Garden Products Ltd
Tenbury Arbour
Assembly Instructions
Before assembly
•
We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide.The instruction sheet is only
a guide to the assembly.
Certain items may not be shown
to scale.
•
Check all components prior to assembly
•
This product should be assembled
by no less than 2 people
•
Drill all components where indicated
x 2
Drill
Recommended tools for assembly
•
Cross head screw driver
•
Drill with 4mm diameter
•
Step ladder
No. Components Qty.
1 Back Panel 1
2 Seat 1
3 Uprights 2
4 FR/BL* roof rafters 2
5 FL/BR* roof rafters 2
6 Roof slat sections 2
7 Roof coverstrip 1
8 Finials 2
*FR/BL = Front right/back left
FL/BR = Front left/back right
No. Fixing kit Qty.
9 40mm screws 68
10 Flat brackets 2
11 L-brackets 8
English SS068E
4
7
8
6
1
2
5
3
