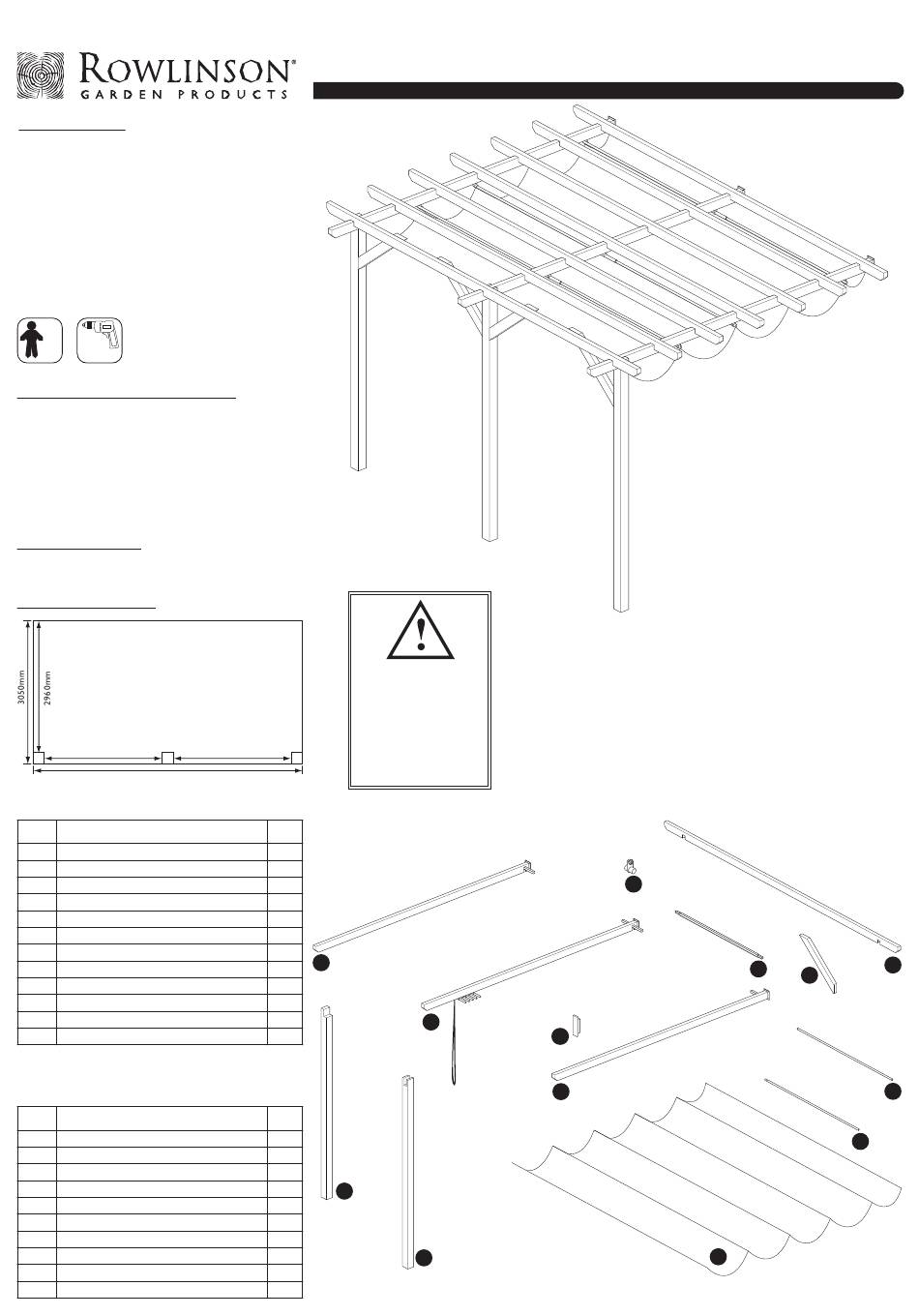

Rowlinson Garden Products SS229F Assembly Instructions

Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then
follow the easy step by step guide.
The instruction sheet is only a guide to
the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no
less than two people.
•
Never attempt to erect the assembly in
high winds.
•
Drill components where indicated.
x 2
Drill
Recommended tools for assembly
•
Spirit level
•
Step ladder
•
Drill
•
3mm dia. drill bit
•
10mm dia. wood drill bit
•
12mm dia. masonry drill bit
•
Screw driver
•
Spanner/socket set
•
Spray lubricant
Overall dimensions
•
H= 2540mm
•
W= 3900mm
•
D= 3330mm
Footprint dimensions
Posts section = 90x90mm
1560mm
3390mm
No. Components
1 Left-hand track
2 Right-hand track
3 Centre track and pulley mechanism
4 Outer Legs
5 Centre leg
6 Rafters
7 Corner braces
8 Square metal tubes
9 Fixed canopy tubes
10 Polyester canopy
11 Runners
12 Canopy tubes
No. Fixings
13 Cleat
14 115mm bolt
15 10mm washer
16 6mm washer
17 Nut
18 30mm bolt
19 12mm bolt
20 70mm screw
21 40mm black screw
22 Wall fixing
Timber Wall Mounted Canopy English SS229F
Assembly Instructions
Caution
When connecting
components that
use the spring
button. Please
ensure the button is
1560mm
properly located in
the hole.
Qty.
1
1
1
2
1
7
4
1
2
2
1
10
10
Qty.
1
6
6
4
4
6
4
4
33
2
12
3
13
2
5
11
8
10
6
7
9
12
