Introduction

The Maxi GX is a member of

the GX product

family.

Intended for systems with many MPPT Solar Chargers with a VE.Direct port, it has a fast CPU and 25 VE.Direct ports.

Inside the steel enclosure is a power supply, a GX controller board, and various other components. This picture

shows the complete insides.

2.1.

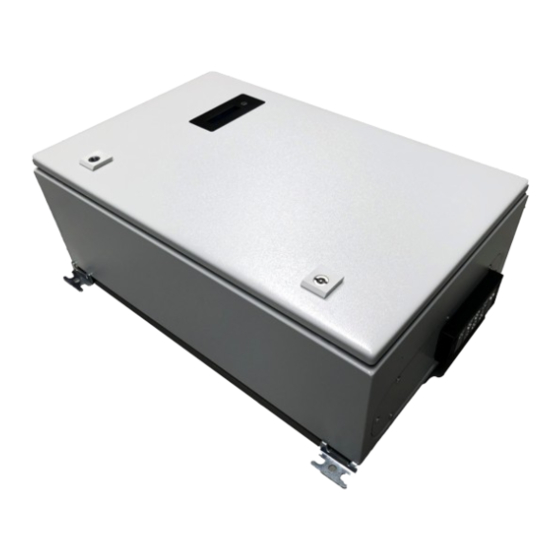

The Maxi GX is a steel IP67 enclosure made by Rittal, part number AE 1038.500.

Mount the unit using the four brackets.

1 / 5

Table of Contents

Do you have a question about the GX Series and is the answer not in the manual?

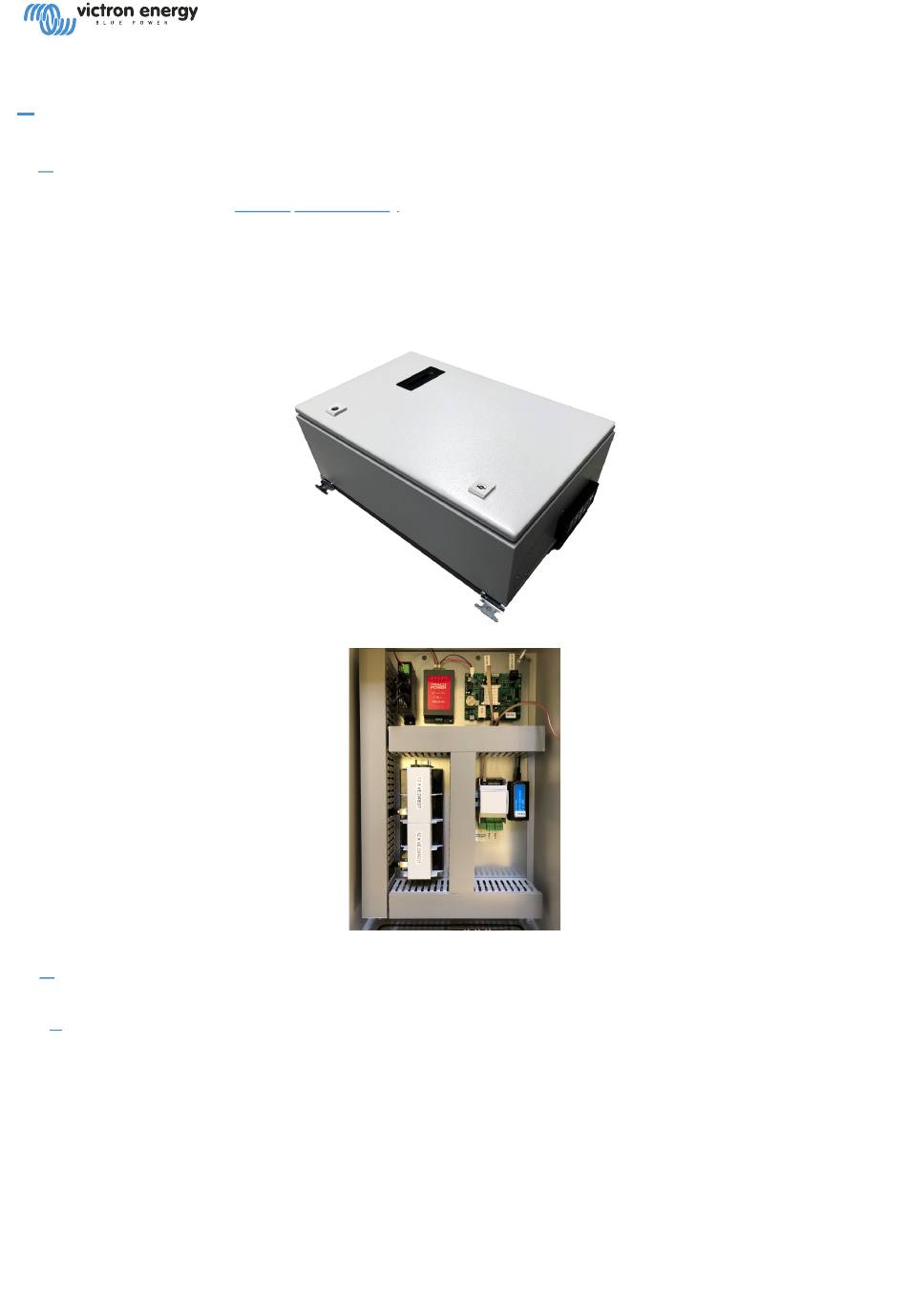

Page 1 gx/maxi-gx Maxi GX manual Introduction The Maxi GX is a member of the GX product family. Intended for systems with many MPPT Solar Chargers with a VE.Direct port, it has a fast CPU and 25 VE.Direct ports. Inside the steel enclosure is a power supply, a GX controller board, and various other components. This picture shows the complete insides.
Page 2 gx/maxi-gx Wire all the cabling through the water tight feed-through at the bottom. Open that feed-through by unlatching the top with a screw driver. It is not necessary to unscrew it. 2.2. Power Connect the battery to -Vin and +Vin on the bottom of the power supply.
Page 3 gx/maxi-gx For both, the connector can be pulled free for easy wiring, and then re-insterted. 2.4.2. Digital inputs The Maxi GX has four digital inputs. The operate at 3v3 levels, and can withstand up to 5V input. Each input has an internal 10k pull-up resistor to 3v3.
Page 4 gx/maxi-gx Relay 2 Accessing the device In an installation with internet available; the simplest method is to connect the Maxi GX to the local network using an UTP cable; then verify on the front-display that it has been assigned an IP address (its default conﬁgured for DHCP). And then on a computer with internet go to our VRM Portal and follow the instructions in...
Page 5 gx/maxi-gx red power LED on the controller board (on the right) red power LED on the USB hub LEDs per USB connection on the USB hub For other possible issues, refer to the CCGX Manual. 5 / 5...
