    L-H300 Door Lock User Manual Content Product Description Preparing for installation Door Lock Installation APP Installation and operation guide Door lock Usage Troubleshooting Daily Care and Maintenance Specifications Appendix...
  • Page 2: Product Description

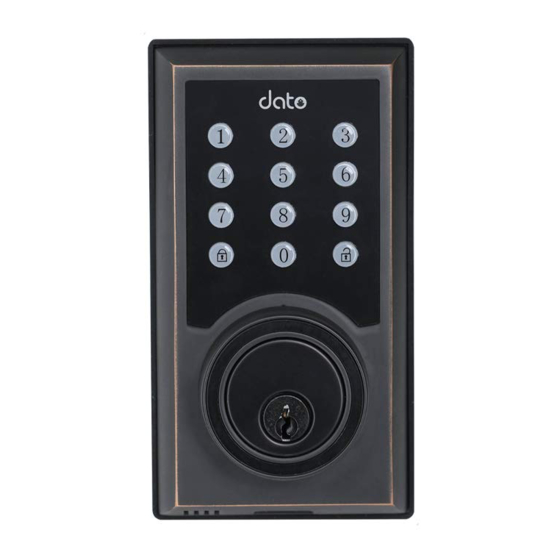

    The L-H300 deadbolt smart lock supports unlocking through smartphone app(Bluetooth-connection), mechanical key, and numerical password. It can facilitate remote password transmissions, user management, password use-limit, guest-user invitation, unlock-history (APP Bluetooth users), and more. All while ensuring safety and convenience. Product Description...
  • Page 3 2, Installation tools a M4 Phillips screwdriver if mounting holes are ready. 3, Inspection of door specifications 3-1,Door Thickness suggestion: 32~50mm. 3-2,Door lock mounting hole diameter range(single round hole):40-65mm 3-3,Distance from the center of the lock mounting hole to the door profile (60 or 70mm)
  • Page 4: Door Lock Installation

    3-4,Confirm the door opening direction according to the instructions below (leftward or rightward, inward or outward) Door Lock Installation Install the deadbolt...
  • Page 5 Insert deadbolt into lock bolt hole. Make sure the“UP”marker is facing upwards 1-1, The face plate of the bolt should align with the edge of the door, as shown on the picture blow. 1-2, The lock spindle hole should be close to the lower center of the lock mounting hole.If there is too much space behind the bolt, or if the bolt protrudes from the door, adjust it.
  • Page 6 1-3, Fix the bolt with 2 wood screws (screw A) Remind again:The lock spindle hole should be close to the lower center of the lock mounting hole. 2, Installation of indoor and outdoor section Installation Precautions: (1) Please check whether your door thickness is within the limit door thickness before installation.
  • Page 7 b, For left hand door and left hand reverse door, make the bolt tongue in locking position,adjust the spindle to the vertical direction as shown below 2-2, Combine outside section with lock bolt as shown below (Pay attention to the wire) 2-3,Rotate the lock spindle while holding the outside section, make sure the bolt tongue could smoothly switch between the lock/unlock position.
  • Page 8 2-4 Installation the plate as shown below by using 3x 25mm screws (Screw B), then do the same test as section 2-3...
  • Page 9 Below is the installation complete physical map 2-5 Installation the inside section a, Door setting for right/left hand door b, Two parts aligned (outside section and inside section), as shown below...
  • Page 10 Before fixed with screws, install the battery, test 3 ways of lock/unlock : thumb turn, key and keypad. Keypad lock: any key weak up the keypad then press lock button directly; keypad unlock: any key weak up the keypad then press 123456 plus unlock button. Please confirm that the lock tongue is in the correct position under any circumstances.
  • Page 12: App Installation And Operation Guide

    Inner section installation completion real map d, Check after installation Install the battery, test 3 ways of lock/unlock : thumb turn, key and keypad. Keypad lock: any key weak up the keypad then press lock button directly; keypad unlock: any key weak up the keypad then press 123456 plus unlock button.
  • Page 13 a. Scan the above QR-code to download the Android system or iOS app. b. Alternatively, you can download the Android app on Google Play store. Just search for “DatoHome” and download our app. c. Alternatively, you can download the iOS app from Apple App Store by searching “DatoHome”.
  • Page 15 3.App User Management (maybe named Key management) The first user of the App, who successfully adds a lock, will become administrator with the highest degree of authority for the lock. The administrator can send Bluetooth keys through email and customize key limits. New app users who receive permission can add this lock automatically according to corresponding permissions.
  • Page 16: Door Lock Usage

    Administrators can send passwords to others through their email accounts. Passwords can be of three types: 1) time-limited password. 2) One-time password. 3) Permanent password. Door Lock Usage 1, Unlocking Methods 1-1 Unlocking through App and Bluetooth (1) Open the app, and start the Bluetooth connection on your phone. Stand near the lock and select the corresponding door in the app (Hint: try to stand close to the lock for smooth connection between phone and lock) (2) Click the unlock-button on the app.
  • Page 17 2-1, To change administrator password by using door lock keypad: (factory reset password: 123456) Keyboard Input Feedback after successful input (make sure: lock the door and backlight is off)Any Keyboard backlight is on, waking up the keyboard Administrator password Long beeping sound, motor rotating + unlocking key (Within 3 seconds after beeping)1+unlocking key Short beeping sound...
  • Page 18 Within 10 seconds you can add / delete user Upon no operation within 10 seconds, the door lock passwords goes to sleep Note: When Entering 6-digit add / delete- user administrator password, if the door lock has no such password, the password is added. If the password already exists within the door lock, the input password will be deleted.
  • Page 19: Troubleshooting

    ( 2 )Press and hold One long beep should sound, signaling successful initialization button for initialization. The product will return to factory 5 seconds settings and any fingerprint can unlock the door. ① ( 1 )Turn on your phone’s Bluetooth and The nearby door will be chosen.
  • Page 20: Daily Care And Maintenance

    Use a power bank to connect to the ①Battery is dead or emergency microUSB port, or open the door incorrect polar. 3. Keypad has no reaction by key and replace the batteries. Replace the batteries, or disassemble the lock ②Faulty cable connection and check the cable connection.
  • Page 21: Specifications

    2. The door handle is very important, and a “key part” of the door. Its’ state directly affects the use of the door. DO NOT hang objects on the handle! 3. If the door is damaged such that it compromises the insertion of the deadbolt or latch bolt into the doorframe, the door buckle should be adjusted or the door changed.
  • Page 22 Emergency power USB 5V supply Administrator password: 1 Password Capacity Common User Password: 20 Temporary password: 300 Card Capacity No IC card support Power supply DC 6V Low power alarm 4.8V Dynamic current 250mA (for motor) Static current ≤60uA Unlock time ≤1.5 seconds Operating -20℃---70℃...
