BASIC PLAYBACK

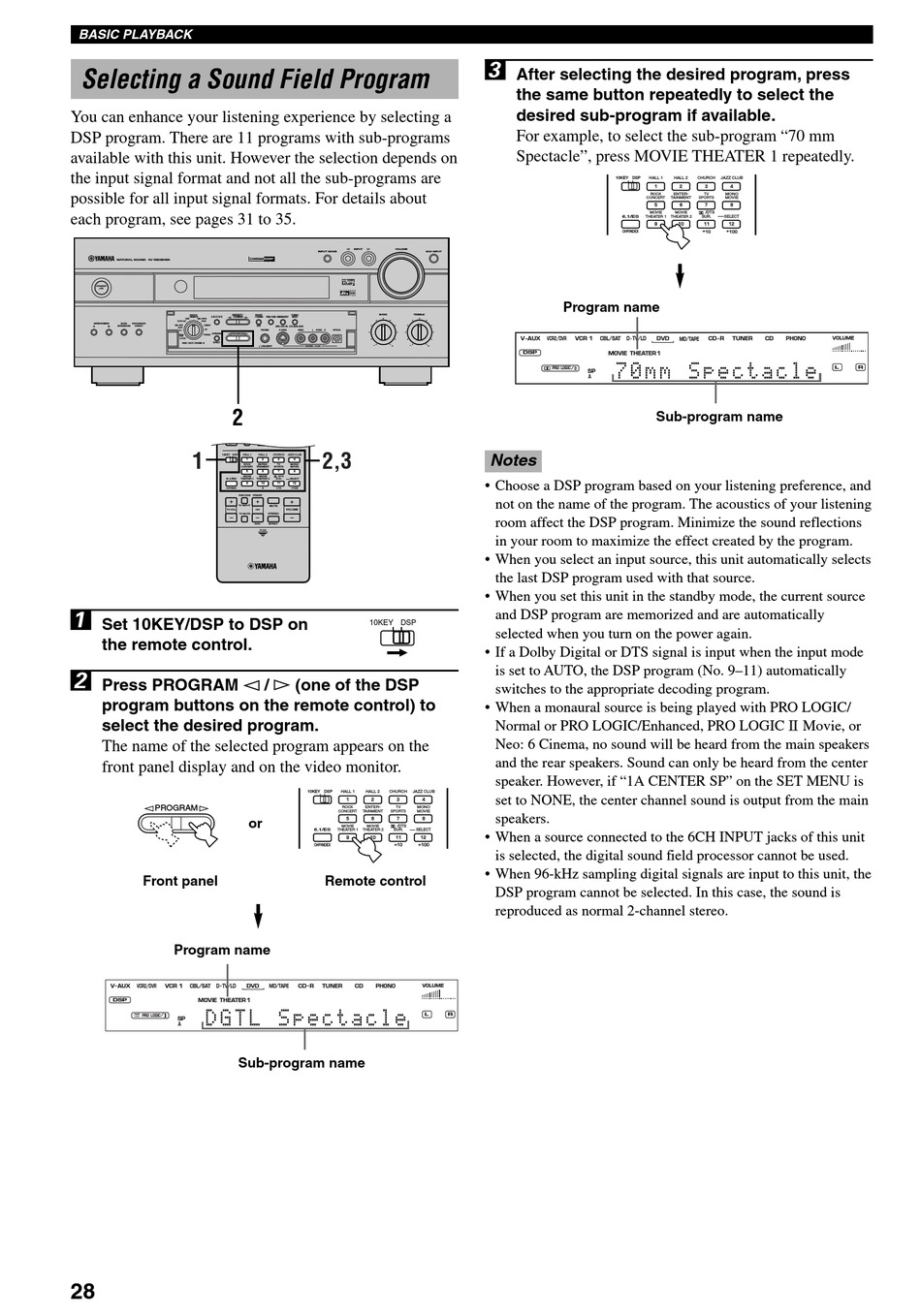

Selecting a Sound Field Program

You can enhance your listening experience by selecting a
DSP program. There are 11 programs with sub-programs
available with this unit. However the selection depends on
the input signal format and not all the sub-programs are
possible for all input signal formats. For details about
each program, see pages 31 to 35.
NATURAL SOUND AV RECEIVER
STANDBY
/ON
SOURCE PRESET/
/REMOTE A/B/C/D/E TUNING
DVD MD/TAPE
D-TV/LD CD-R
SPEAKERS BASS PROCESSOR
EXTENSION DIRECT CBL/SAT TUNER
A B
VCR1
CD
STEREO PROGRAM
VCR2 PHONO
/DVR
V-AUX
EFFECT
REC OUT/ZONE 2
2
1
10KEY DSP HALL 1
ROCK
CONCERT
MOVIE
6.1/ES THEATER 1
CHP/INDEX
A/B/C/D/E
TV INPUT
TV VOL
TV MUTE
1
Set 10KEY/DSP to DSP on
the remote control.
2
Press PROGRAM l / h (one of the DSP
program buttons on the remote control) to
select the desired program.
The name of the selected program appears on the
front panel display and on the video monitor.
PROGRAM
Front panel
Program name
V AUX VCR 1 / TV / LD
VCR2/DVR CBL SAT D
DSP
MOVIE THEATER 1
PRO LOGIC /
SP
A
Sub-program name
28
INPUT VOLUME
INPUT M0DE
D I G I T A L
PRO LOGIC
BASS TREBLE
PRESET TUNING
/TUNING FM/AM MEMORY MODE
EDIT MAN'L/AUTO FM AUTO/MAN'L MONO
PHONES S VIDEO VIDEO L AUDIO R OPTICAL
– + –
SILENT VIDEO AUX
2,3
HALL 2 CHURCH JAZZ CLUB
1 2 3 4
ENTER- TV MONO
TAINMENT SPORTS MOVIE
5 6 7 8
MOVIE /DTS
THEATER 2 SUR. SELECT
9 10 11 12
0 + 10 + 100
PRESET
MUTE
CH VOLUME
STEREO
DISC EFFECT
10KEY DSP
10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB
1 2 3
ROCK ENTER- TV MONO
CONCERT TAINMENT SPORTS MOVIE
5 6 7
or
MOVIE MOVIE /DTS
6.1/ES THEATER 1 THEATER 2 SUR. SELECT
9 10 11
+ +
CHP/INDEX 0 10
Remote control
DVD / CD R TUNER CD PHONO
MD TAPE
3
After selecting the desired program, press
the same button repeatedly to select the
desired sub-program if available.
For example, to select the sub-program "70 mm
Spectacle", press MOVIE THEATER 1 repeatedly.
6CH INPUT
Program name
V AUX VCR2/DVR VCR 1
+
DSP
PRO LOGIC /
SP
A
Notes
• Choose a DSP program based on your listening preference, and
not on the name of the program. The acoustics of your listening
room affect the DSP program. Minimize the sound reflections
in your room to maximize the effect created by the program.
• When you select an input source, this unit automatically selects
the last DSP program used with that source.
• When you set this unit in the standby mode, the current source
and DSP program are memorized and are automatically
selected when you turn on the power again.
• If a Dolby Digital or DTS signal is input when the input mode
is set to AUTO, the DSP program (No. 9–11) automatically
switches to the appropriate decoding program.
• When a monaural source is being played with PRO LOGIC/
Normal or PRO LOGIC/Enhanced, PRO LOGIC
Neo: 6 Cinema, no sound will be heard from the main speakers
and the rear speakers. Sound can only be heard from the center
speaker. However, if "1A CENTER SP" on the SET MENU is
set to NONE, the center channel sound is output from the main
4
speakers.
8
• When a source connected to the 6CH INPUT jacks of this unit
12
100
is selected, the digital sound field processor cannot be used.
• When 96-kHz sampling digital signals are input to this unit, the
DSP program cannot be selected. In this case, the sound is
reproduced as normal 2-channel stereo.
VOLUME
L R
10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB
1 2 3 4
ROCK ENTER- TV MONO
CONCERT TAINMENT SPORTS MOVIE
5 6 7 8
MOVIE MOVIE /DTS
6.1/ES THEATER 1 THEATER 2 SUR. SELECT
9 10 11 12
+ +
CHP/INDEX 0 10 100
CBL / SAT D TV / LD DVD MD / TAPE CD R TUNER CD
MOVIE THEATER 1
Sub-program name
PHONO VOLUME
L R
Movie, or
