Summary of Contents for SP Jetwash SP250P

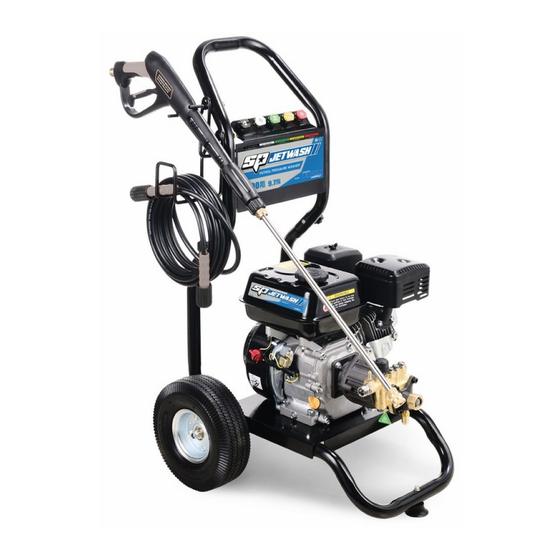

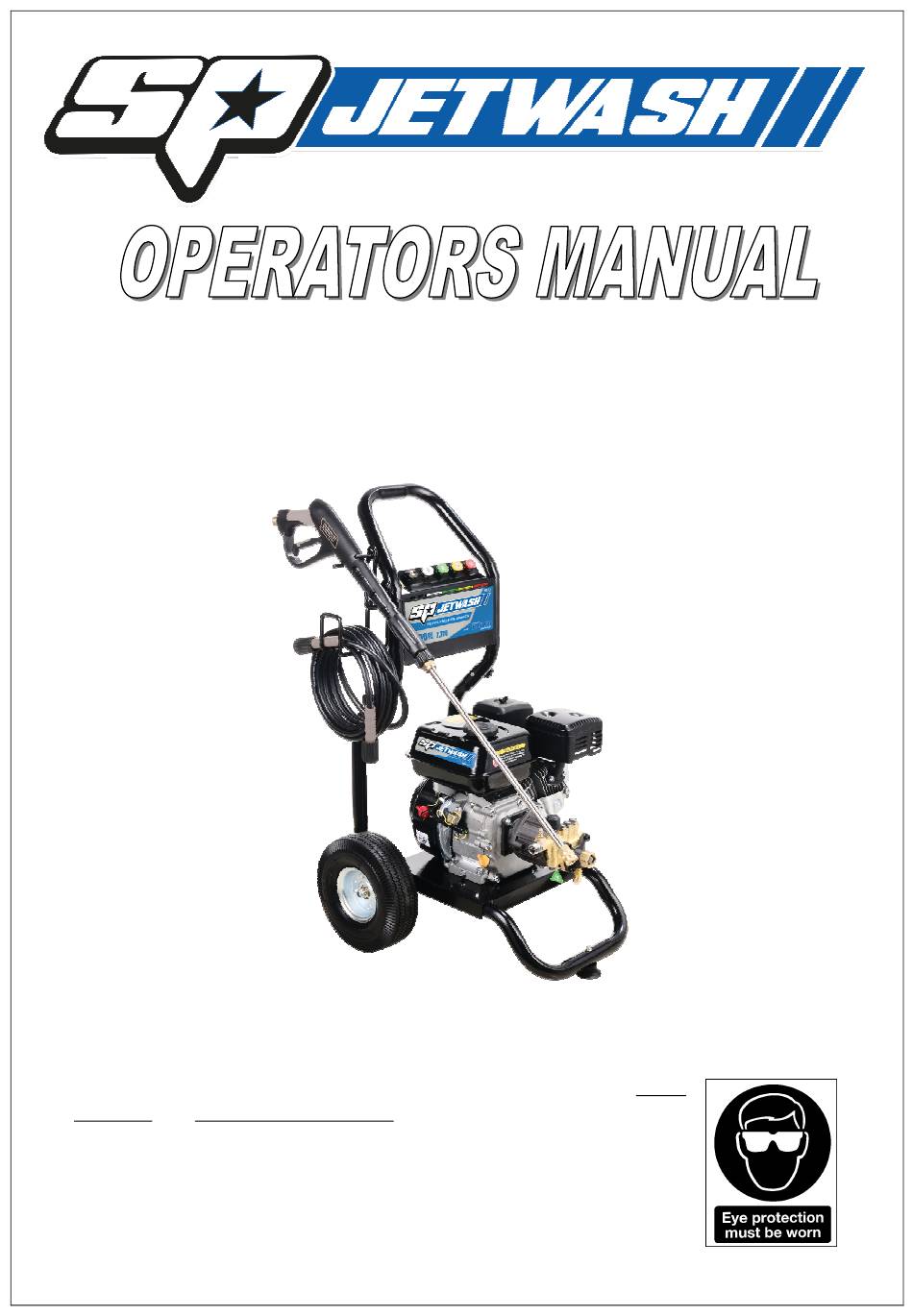

- Page 1 SP250P Do not operate equipment until you have read this Owner’s Manual for Safety, Operation, and Maintenance Instructions.
-
Page 2: Table Of Contents
CONTENTS Page Index -------------------------------------------------------------------------- General Components ----------------------------------------------- Technical Specifications -------------------------------------------- Safety Guidelines ----------------------------------------------- Operating Procedures Assembly ---------------------------------------------------------------- Getting Started ------------------------------------------------------------ High Pressure Operation ----------------------------------------------- Detergent Operation ----------------------------------------------------- Pump Maintenance Nozzle Cleaning ---------------------------------------------------------- Water Inlet Screen Cleaning -------------------------------------------- Long-term Storage ------------------------------------------------- Engine Instructions Engine Maintenance ------------------------------------------------------... -
Page 3: General Components
Components: 1. Nozzle cleaner 2. Quick releases nozzles 3. Variable lance assembly 4. Trigger gun assembly 5. High pressure hose 6. High pressure outlet connector 7. Pressure adjustment knob 8. Chemical injector 9. Detergent pickup hose 10. Water inlet filter & connector 11. -
Page 4: Technical Specifications
Technical Specifications: ENGINE Torini Engine Model TORINI Type Forced Air Cooling, OHV 4 Stroke BPR4ES Spark Plug SAE 30 (SAE 10W30 for cold climates) Engine Oil Lubrication Engine oil was drained at the factory for shipping Oil Quantity Engine Oil Capacity 600ml Power Max Output power &... -
Page 5: Safety Guidelines
SAFETY GUIDELINES-----DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections. - Page 6 HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT Unsafe operation of your pressure Become familiar with the operation washer could lead to serious injury or and controls of the pressure washer. death to you or others. Keep children away from the pressure The spray gun/wand is a powerful washer at all times.
- Page 7 HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT Contact with hot surfaces, such as During operation, touch only the engine’s exhaust components, could control surfaces of the pressure washer. result in serious burns. Keep children away from the pressure washer at all times. They may not be able to recognize the hazards of this product.
-
Page 8: Assembly
Assembly: Unpacking Pressure Washer • Set carton on a rigid, flat surface. Remove all loose parts and packing. Leave pressure washer in carton. • Using a box cutter carefully open the carton completely by cutting the four corners, allowing the sides to lay flat. -
Page 9: Getting Started
Getting started PRE START CHECKLIST Once you reach this point ensure you have done the following: • All safety instructions read and understood • All hose connections are tightened and hoses free of kinks • Adequate amounts of lubrication and fuel have been added to the engine •... -
Page 10: High Pressure Operation
HIGH PRESSURE OPERATION Never pull the hose to move the unit. This could damage hose and/or pump inlet. Never allow pump to run with water hose turned off or kinked. Shutting off the water supply to the pump while it is operating may cause serious pump damage. Do not let hoses contact HOT engine muffler during or immediately after use, as this will damage the hose. -
Page 11: Detergent Operation
Pressure Adjustment: The maximum working pressure is pre-set at the factory and can not be overridden. By turning the pressure adjustment knob anti-clockwise you can reduce both the pressure and water volume being supplied from the pump. Low Pressure Detergent Operation: The Black Tip –... -
Page 12: Nozzle Cleaning
MAINTENANCE: WHEN DOING MAINTENANCE, YOU MAY BE EXPOSED TO HOT SURFACES, WATER PRESSURE, MOVING PARTS, OR FIRE WHICH MAY RESULT IN SERIOUS INJURY OR EVEN DEATH. BEFORE PERFORMING ANY MAINTENANCE OR REPAIR, LET THE ENGINE COOL DOWN COMPLETELY AND RELEASE ALL WATER PRESSURE. THE ENGINE CONTAINS FLAMMABLE FUEL. DO NOT SMOKE OR WORK NEAR OPEN FLAMES WHILE PERFORMING MAINTENANCE. -
Page 13: Long-Term Storage
LONG-TERM STORAGE: Before you store the pressure washer, make sure you do the following: 1. Remove fuel from engine or add fuel stabilizer, such as “Sta-Bil” to the gasoline to prevent gumming, and operate unit normally for five minutes. 2. If adding stabilizer, connect water supply and high pressure hose to pump. 3. - Page 14 ENGINE TROUBLE SHOOTING GUIDE When the engine will not start: Is there fuel in Refill the fuel tank the tank? Is there oil in the Add the recommended engine? oil. Is there a spark Take the engine to Replace the from the spark authorised Still no spark...
-
Page 15: Trouble Shooting
PROBLEM CAUSE CORRECTION No or low pressure 1. Low pressure nozzle in lance. 1. Change to High Pressure nozzle. (initial use) 2. No nozzle in lance 2. Fit HP nozzle (Not Black) 3. Low water supply. 3. Ensure at least 15ℓ @ 20 PSI. 4. -
Page 16: Limited Warranty Policy
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. * SP Jetwash and Torini are brand names of products distributed by Austech Industries Note... -
Page 17: Limited Extended Engine Warranty Policy
36 Month or 3 year Limited Extended Engine Warranty: The 36 Month, Limited Extended Engine Warranty applies only to the original purchaser of Torini Engines distributed by Austech Industries. The Limited Extended Engine Warranty period commences from the date of purchase and runs in conjunction with the standard 12 months Limited Warranty for the pressure washer.
