Connect Your System

01
IP Camera
Power supply TV Monitor
1. Connect Your System

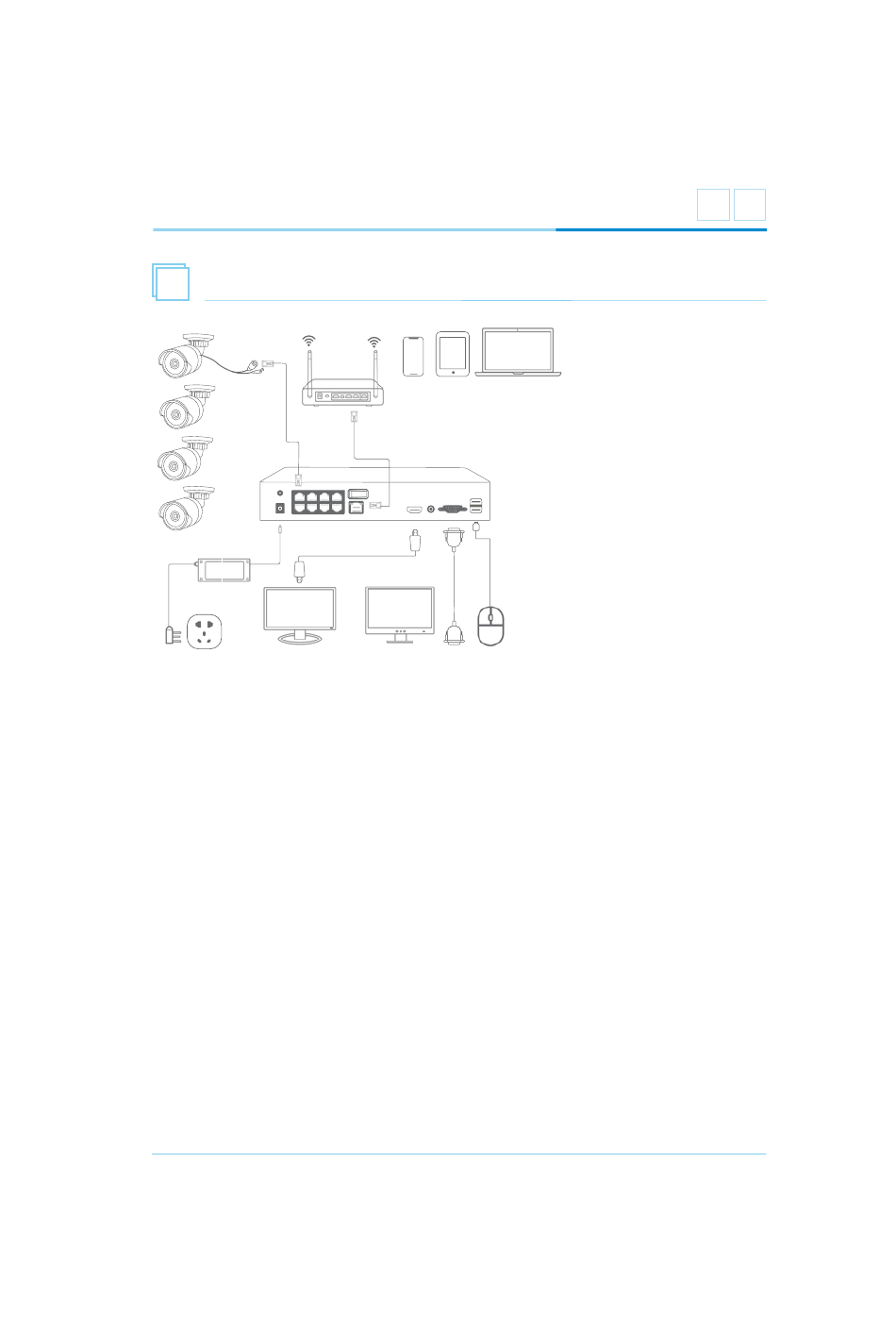

1.1 Connect the PoE cameras to their ports with Ethernet cables in the security kit.
1.2 Plug the mouse (included) into the USB port at the rear panel of the NVR.
1.3 Connect the LCD Display to the NVR and power it on.
1.4 Connect the NVR to the router with the Ethernet cable.
1.5 Plug the power adapter cable into the NVR DC port. Then plug power adapter into power
strip. There is only one power adapter in the system which is DC48V or above and for
the NVR only.
1.6 Turn on the NVR power switch.
All the PoE Cameras in the kit have already been programmed into the NVR after you power on
the NVR. There will be live video images shown on the monitor in seconds.
2. Connect the NVR to Internet
After steps above, the system is on and the video images shown up,you can right click the
mouse, choose the "start wizard" and follow it. In the step for "Network Test", it may show
you "Test Gateway . . . . ERR", click "Network" to do the network settings and enable the "DHCP",
Display Device for Remote View
Router
NVR
