Summary of Contents for Techage PoE AI Camera System
- Page 1 support@techage.com...
- Page 2 User Guide PoE AI Camera System Security Expert for Your Home and Business www.techage.com...
-
Page 3: Table Of Contents
Security Expert for Your Home and Business Table of Contents 01. Connect Your System 02. View on Smartphone 03. View on PC Client Software 04. Video Record 05. View on PC via IE 06. Video Playback 07. Video Backup 08. Unique Features... - Page 4 Your Home and Business for Your Home and Business Preface Thank you for purchasing Techage PoE AI security camera system. Techage is committed to providing customers with high quality and reliable security products and solutions for home and business.
- Page 5 Security Expert for Your Home and Business PoE AI Camera 1. DC Power Port: Power Input 12V 1A. 2. RJ45 Port: Ethernet cable for video transmit and 48V DC Power Supply from NVR. 3. Speaker： For two way talk, alert voice play and broadcast 4.
-
Page 6: Connect Your System
Security Expert for Your Home and Business Connect Your System Display Device for Remote View Router IP Camera HDMI Power supply TV Monitor TV Monitor Mouse 1. Connect Your System 1.1 Connect the PoE cameras to their ports with Ethernet cables in the security kit. 1.2 Plug the mouse (included) into the USB port at the rear panel of the NVR. - Page 7 Security Expert for Your Home and Business then click “OK”. And then click “Retry”, it will show all ok. And that means the NVR is connect to internet successfully. 3. Add an Additional PoE Camera to the NVR When you need to add an additional PoE camera Add a new additional PoE camera to your NVR system.
- Page 8 Security Expert for Your Home and Business How to add an additional camera. Use the Ethernet cable to connect the PoE Camera into the NVR camera ports or to the parts of PoE switch that connect to the same router with the NVR. Click ”+”...
-
Page 9: View On Smartphone
Security Expert for Your Home and Business Connect cables and power on NVR After wiring, connect the Ethernet cables into each cameras and the NVR to the router. Plug in the power supply for NVR and power on the system and you will get the live videos images and enjoy the video surveillance. - Page 10 Security Expert for Your Home and Business Step 2: Run the app and add the device After you download the app, create an account and then scan the device’s serial No. QR code to add the device.You can do some changes make your own profile. 1.
- Page 11 Security Expert for Your Home and Business 2. Playback on Mobiles In the XMEye app, choose the channel of the video you want to playback , click and then change the time frame to choose the time of the video you want to playback. Tips: Videos in playback are HD and real time which requires very good network conditions.
-
Page 12: View On Pc Client Software
Your Home and Business View on PC Client Software Step 1: Download VMS software from http://techage.com/download.php After opening the VMS software, click on Login directly. Step 2: Choose Device Manager>IP4 search, then find your NVR and choose it , click “Add”. - Page 13 Security Expert for Your Home and Business View on PC via IE 1. When your PC is in the same LAN as the NVR (normally it means they are connected to the same router). Step 1: Find the IP address and Web port of your NVR (IP address can be found in Main Menu>Network).
- Page 14 Security Expert for Your Home and Business User Name: Enter the NVR’s User Name (default: admin) Password: Enter the NVR’s Password set (default: No password required, just leave blank.) 2. When your PC is not in the same LAN as the NVR (For example, in the case that you want to remotely view your home camera on your office computer.) Step 1: Open your Internet Explorer (IE) browser and visit www.xmeye.net Step 2: Input NVR’s series No., Username and Password to login.
-
Page 15: Video Record
Security Expert for Your Home and Business Video Record 1. HDD Install The system may not include HDD if you did not select the kit with HDD. The system can work with 3.5” or 2.5” SATA Hard Drive. ① Unplug your NVR from power, unscrew and remove the top cover. ②... -
Page 16: Video Playback
Security Expert for Your Home and Business Video Playback Go to the Main Menu>Playback ,you can choose the way you want to playback on the left bottom. Choose intelligent retrieval. select the date and then you can watch the video clips you want to playback after double clicks. -
Page 17: Video Backup
Security Expert for Your Home and Business Video Backup Go to the Main Menu>System>Backup , you can choose the video clips that you want to backup and choose the backup format to be MP4 , then click “Start” to backup the video. Unique Features 1. - Page 18 Security Expert for Your Home and Business All the AI cameras in the system are with flood light, right click on the video images , you can got to the “IPC Parameter” settings, in the IPC Parameter you can choose different light modes to turn on/off the flood light.
- Page 19 Your Home and Business 4. Expand Your NVR’s Channels. Our latest Techage PoE NVR system can be expanded. 4ch ones can be expanded to 8ch and 8ch ones can be expanded to be 16ch. You can do the changes on NVR Main Menu>>...
- Page 20 Your Home and Business All rights reserved. No part of this publication may be reproduced by any means without written permission from Techage. The information in this publication is believed to be accurate in all respects. Techage cannot assume responsibility for any consequences resulting from the use thereof.
Need help?
Do you have a question about the PoE AI Camera System and is the answer not in the manual?
Questions and answers
Здравствуйте, как отключается светодиоды камеры ?
To turn off the LEDs on the Techage PoE AI Camera System, set the light mode to "Normal." In this mode, only the IR light will be on at night, and the white light will remain off both day and night.
This answer is automatically generated

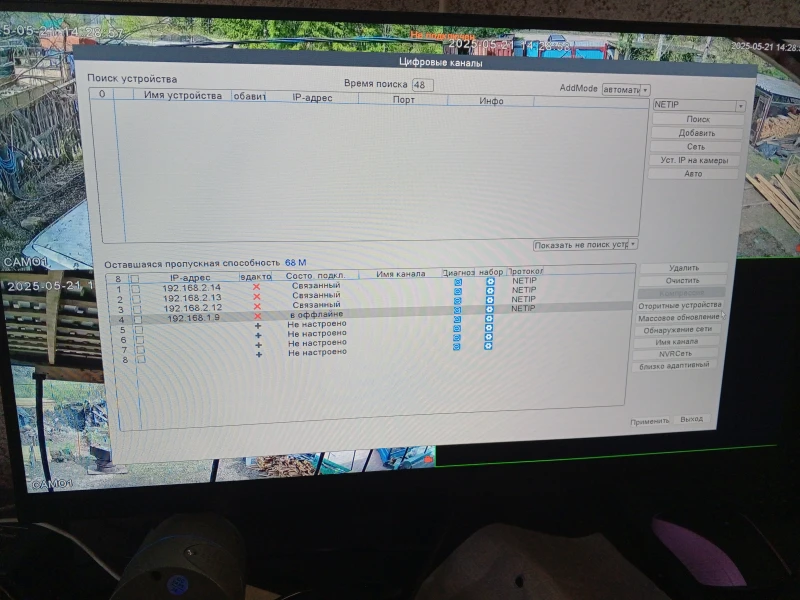

Не подключается камера , в чем может быть причина? Приставка камеру не видит почему то.
