Summary of Contents for gofanco USBCMST2HDMI

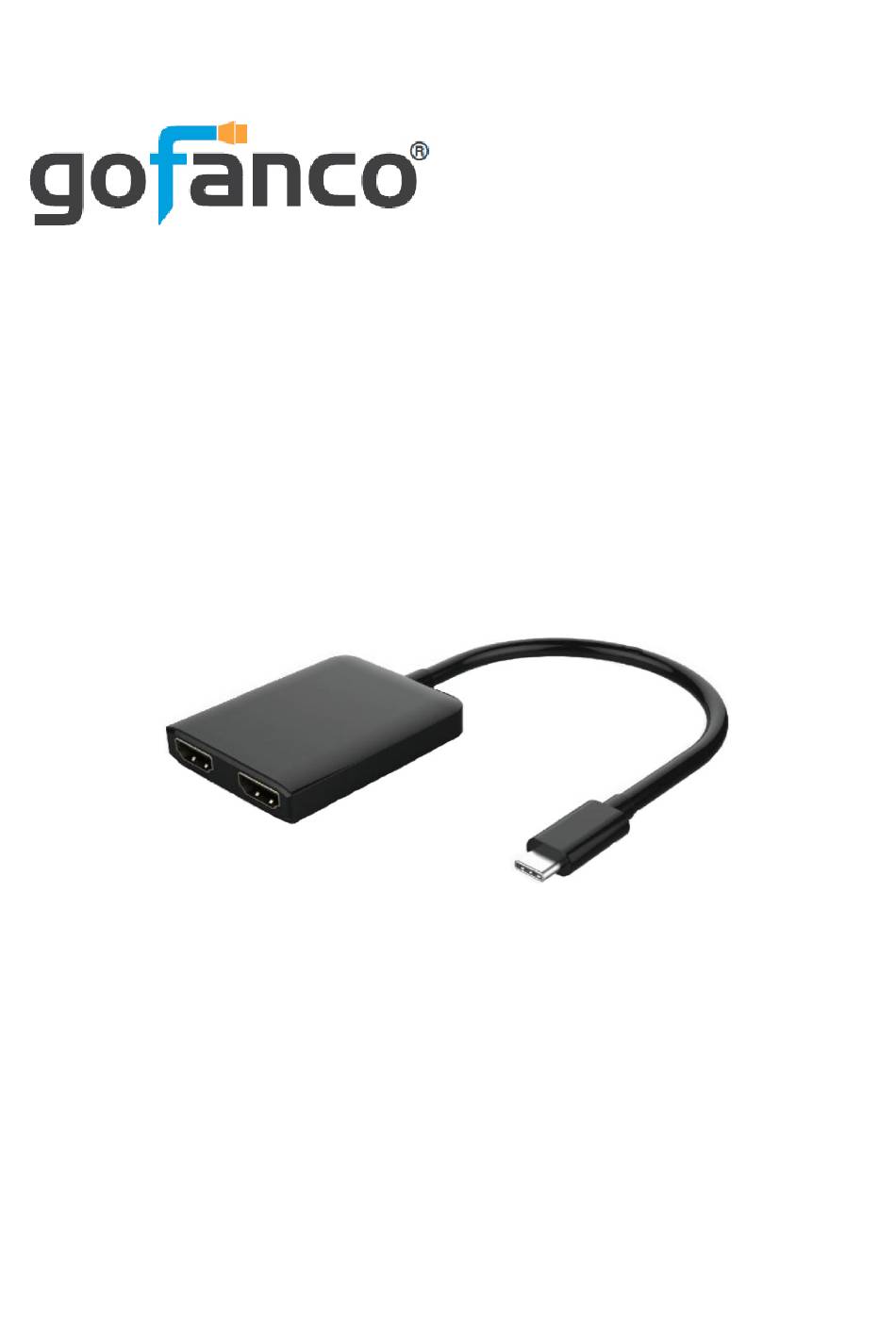

- Page 1 USB-C MST Hub to 2x HDMI User's Guide P/N: USBCMST2HDMI G4-0061A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.

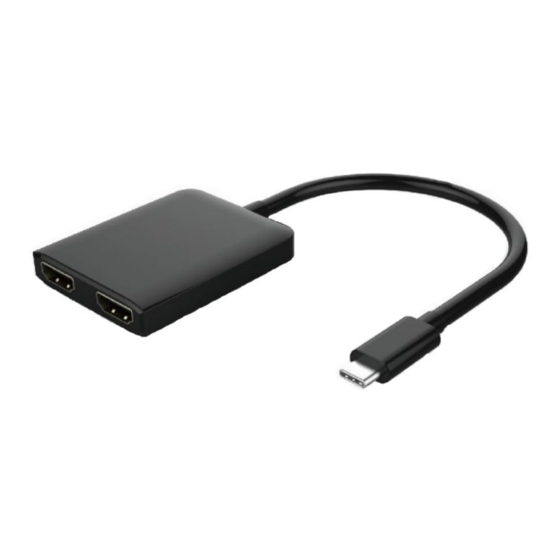

- Page 3 Introduction gofanco USB-C MST Hub to 2x HDMI enables you to connect with 2 external monitors to your USB-C enabled computer for multitasking. Features Supports Mirror mode with identical content • displayed on each display, Extended mode with individual content displayed on each...
- Page 4 System Requirements PC with an available USB-C with • DisplayPort Alternate mode or Thunderbolt 3 port Windows 10 / 8.x / 7 (32-/64-bit) • ® Product Layout HDMI Output (x2) USB-C Input Figure 1: Layout USB-C Input: Connect to PC's USB-C port •...
- Page 5 Hardware Installation Important: The source USB-C output must support DisplayPort Alternate (DP Alt) mode or Thunderbolt 3 technology for this hub to work properly. Please verify DisplayPort Alternate mode over USB-C or Thunderbolt 3 with your computer manufacturer. Power off all devices you plan to connect to the unit.
- Page 6 AMD Eyefinity / Nvidia Surround Video Cards Advanced MST graphics technology is supported by AMD Eyefinity or Nvidia Surround graphics adapters. For Mirror mode, Extended mode, and advanced display setup such as video wall, refer to your graphics card's menu for more details. Specifications Signal DisplayPort (DPAlternate mode)
- Page 7 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 8 Thank you for choosing gofanco www.gofanco.com...
