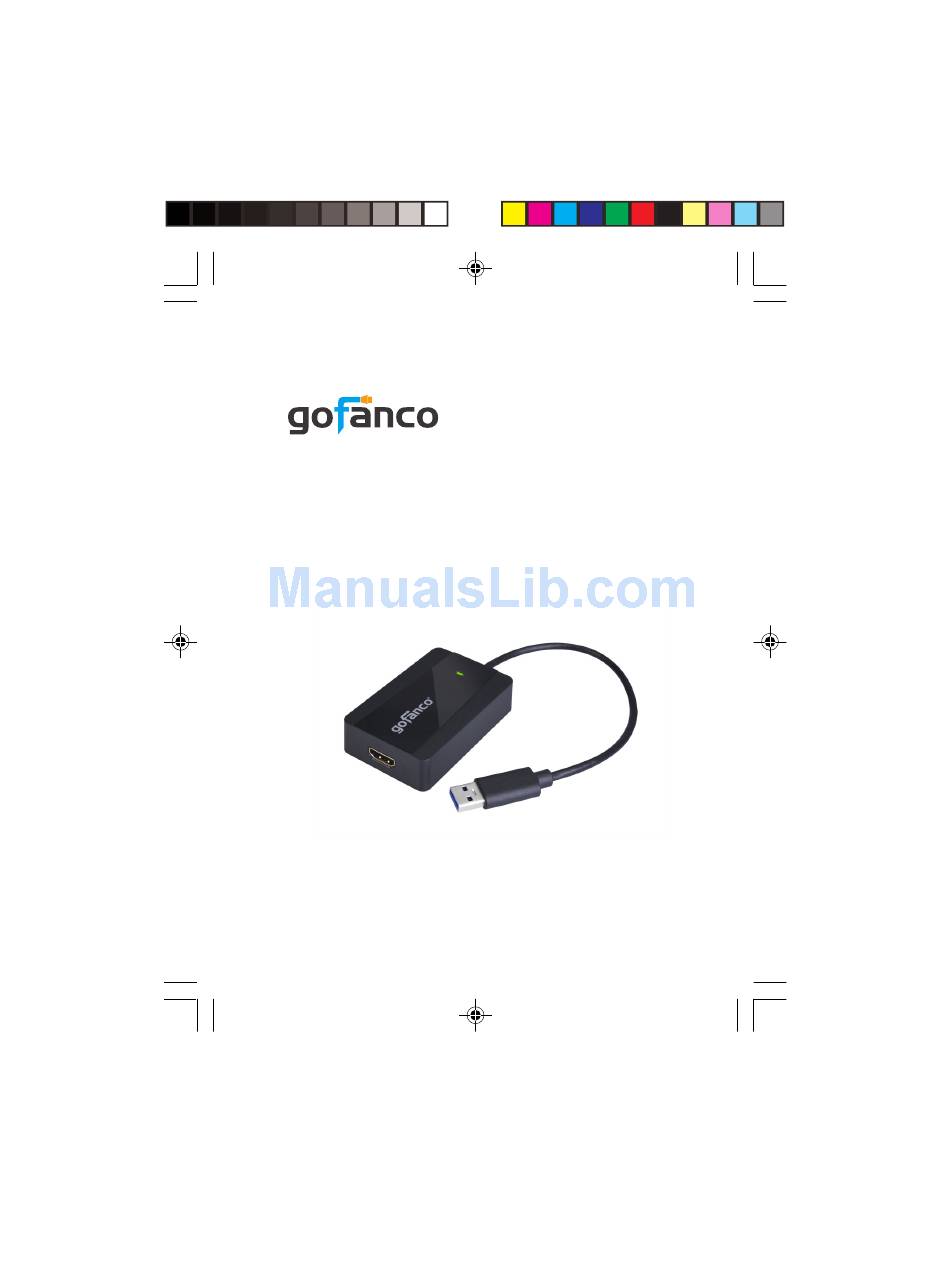

- Page 1 ® USB 3.0 to HDMI/DVI Video Adapter - Black P/N: USB3HDMI G4-0011A...
- Page 2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: System Requirements

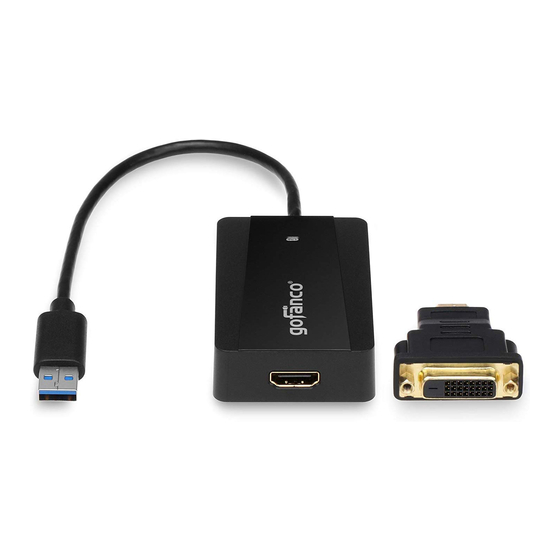

Introduction gofanco USB 3.0 HDMI/DVI Video Adapter - Black (part# USB 3HDMI) allows you to add an external HDMI or DVI (with included adapter) video output to your USB-enabled system. System Requirements • PC or Mac system with an available USB port (USB 3.0 recommended) •... - Page 4 Layout Power LED HDMI USB Type-A Figure 1: USB 3.0 to HDMI/DVI Video Adapter - Black Figure 2: HDMI to DVI adapter...
-
Page 5: Windows Installation
Windows Installation Note: Make sure the proper driver for your system's graphics card is installed. gofanco USB 3.0 Display Adapter is not designed to work with Windows' Standard VGA Graphics Adapter driver. Important: Do not plug the video adapter into the computer until instructed to do so. -
Page 6: Viewing Modes
To Verify Windows Installation 1. Right click This PC / Computer / My Computer on the desktop, then click Manage. 2. Click Device Manager, expand USB Display Adapters, and USB Display Adapter should be displayed. Windows Display Utility After successful driver installation, the utility icon will appear in the taskbar. - Page 7 • Extend to: Right - Extends the display to the right of the main display. Left - Extends the display to the left of the main display. Above - Extends the display above of the main display. Below - Extends the display below the main display. •...
- Page 8 WDP allows you to rotate, duplicate or extend screens as well as modify screen resolution. Position the mouse anywhere on the Windows Desktop. For Windows 10: Right click and select Display settings. For Windows 8 / Windows 7: Right click and select Screen Resolution.
-
Page 9: Windows Shortcut
• Multiple displays: Duplicates these displays - Reproduces the main display on the second display. Extend these displays - Extends the main display onto the secondary display. Show (Desktop) only on 1 - The display marked 2 becomes blank. Shows (Desktop) only on 2 - The desktop appears on the display marked 2. -
Page 10: Mac Os Driver Installation
Mac OS Driver Installation 1. Connect your second monitor to the video adapter (use the included adapter if needed) and turn it on, then plug the video adapter into the computer. 2. Insert the driver CD, then double click Driver CD icon on the Desktop. - Page 11 To Verify Driver Installation 1. Click the Apple logo from the top menu bar. 2. Click About this Mac, More Info..., then System Report. 3. Under Hardware/USB, USB Display Adapter will be displayed. Mac Display Utility Click the utility icon in the taskbar to change the modes/ resolutions, or click System Preferences, the Displays icon, then select the Arrangement pane.
- Page 12 Rotating a Display Configure the orientation using the Rotation drop down list, see Figure 3. Select the appropriate angle of rotation to match your display's set up. Setting the Display to Mirror/Extend Mode Check Mirror Displays box on the Arrangement pane to enable the mirror mode.
- Page 13 To Uninstall Mac Driver 1. Insert the driver CD, then double click Driver CD icon on the Desktop. 2. Choose the Mac folder according to your OS. 3. Double clickDisplayLink_Mac_..dmg. 4. Double click DisplayLink Software Uninstaller, then click Uninstall. 5. Type in your system password, click OK. 6.
-
Page 14: Frequently Asked Questions
Frequently Asked Questions Q1: Why won't my DVD video play when I move it over to the extended display? A1: Some DVD playback software packages do not support playing on a second display adapter. Q2: There are lines running up and down my screen or the screen is distorted A2: This is due to a low or unsupported refresh rate. -
Page 15: Supported Display Resolution
Supported Display Resolution - Wide Screen Display Aspect Ratio Resolution 16:9 2560 x 1440 (50Hz) * 16:9 2048 x1152 16:10 1920 x 1200 16:9 1920 x 1080 16:10 1680 x 1050 16:9 1600 x 900 16:10 1440 x 900 16:9 1366 x 768 16:10 1280 x 800... - Page 16 ® Thank you for choosing gofanco www.gofanco.com...
