Wi-SUN module for B-Route, Enhanced HAN
BP35C0-J11 Start up manual
Version 1.0.2
Introduction
This manual describes the operation confirmation procedure using the serial communication software (Tera Term) for the Wi-SUN
module BP35C0-J11.
BP35C0-J11-T01
© 2020 ROHM Co., Ltd.
BP35C1-J11-T01
1/21
User's Guide
BP35C2-J11-T01
No. 63UG011E Rev.002
JUN.2020
Advertisement
Table of Contents
Related Manuals for Rohm BP35C0-J11
Summary of Contents for Rohm BP35C0-J11
- Page 1 User’s Guide Wi-SUN module for B-Route, Enhanced HAN BP35C0-J11 Start up manual Version 1.0.2 Introduction This manual describes the operation confirmation procedure using the serial communication software (Tera Term) for the Wi-SUN module BP35C0-J11. BP35C0-J11-T01 BP35C1-J11-T01 BP35C2-J11-T01 © 2020 ROHM Co., Ltd.
-
Page 2: Table Of Contents
BP35C0-J11 Start up manual User’s Guide Contents Contents ......................................2 About downloading related documents and software ........................3 What you can do with BP35C0-J11 ............................... 4 Setup the evaluation environment ..............................5 4.1. [STEP1] Hardware setup ................................ 5 4.1.1. Adapter Board BP35C0-J11-T01 ............................. 7 4.1.2. -
Page 3: About Downloading Related Documents And Software
2. About downloading related documents and software The documents associated with this manual are listed at the beginning of each chapter. Please read it according to your needs. Hardware documentation is available for download on the ROHM’s Wi-SUN support page. ROHM Wi-SUN Support page: https://www.rohm.com/products/wireless-communication/specified-low-power-radio-... -
Page 4: What You Can Do With Bp35C0-J11
BP35C0-J11 Start up manual User’s Guide 3. What you can do with BP35C0-J11 The following communication and functions can be realized in the module BP35C0-J11. Each function can be operated concurrently in the same network. Name Features Wi-SUN B-route Communication Ideal for communication with smart meters. -
Page 5: Setup The Evaluation Environment
The evaluation environment uses the following hardware: [In case of using BP35C1-J11-T01] The evaluation environment uses the following hardware: * Reference information: The following cable has been used as a USB cable in ROHM. - “U2C-M05BK (mini-B type)” made by ELECOM © 2020 ROHM Co., Ltd. - Page 6 The relevant documentation for the hardware is listed below. Please refer it according to your needs. Download URL:https://www.rohm.com/products/wireless-communication/specified-low-power-radio-modules/bp35c0-j11- product/documents Name (filename) Contents BP35C0-J11 Datasheet Describes the hardware specifications of the BP35C0-J11. (bp35c0-j11_datasheet_v***e.pdf) BP35C1-J11-T01 Evaluation Board Describes the hardware specifications of the BP35C1-J11-T01. (bp35c1-j11-t01_evaluationboard_v***e.pdf) BP35C2-J11-T01 Evaluation Board Describes the hardware specifications of the BP35C2-J11-T01.
-
Page 7: Adapter Board Bp35C0-J11-T01

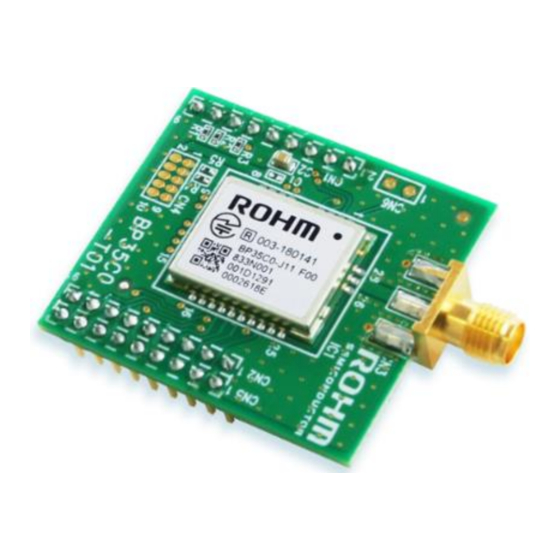

Adapter Board BP35C0-J11-T01 4.1.1. In this document, BP35C0-J11 module is used in the evaluation board (BP359C), with the BP35C0-J11 Mounted Adapter Board (Use BP35C0-J11-T01). This board is evaluation board that can be connected to the BP359C with BP35C0-J11. BP35C0-J11-T01 pin outs are as follows: ”... -
Page 8: Evaluation Board Bp359C
BP35C0-J11 Start up manual User’s Guide Evaluation Board BP359C 4.1.2. The evaluation board BP359C is designed to evaluate various types of wireless modules. For internal schematics and pin layout, please refer to “BP359C Evaluation Board”. The terminal connector names of each part are listed below. -
Page 9: Adapter Board Bp35A7A
BP35C0-J11 Start up manual User’s Guide When the DIP switch (SW5) is normal operation check, set it all to low as below: Adapter Board BP35A7A 4.1.3. Solder the pin header to the through-hole of both ends of BP35A7A as follows: Please be careful not to implement a pin header by mistaking the front and back of BP35A7A when you implement a pin header. -
Page 10: Connecting To Boards And Pcs
Connecting to boards and PCs 4.1.4. [In case of using BP35C0-J11-T01] Insert BP35C0-J11-T01 into BP359C from the top as shown in the figure below. [In case of using BP35C1-J11-T01] Insert BP35C1-J11-T01 and BP35A7A into BP359C from the top as shown in the figure below. - Page 11 PC. After connection, the Evaluation Board will be automatically recognized by Windows. * In the figure, BP35C0-J11-T01 is used, but the process is the same when using BP35C1-J11-T01. * BP359C uses FTDI to convert USB to UART. Depending on the environment of the PC, you may need to install the driver, download the driver if necessary (2See 2).
- Page 12 BP35C0-J11 Start up manual User’s Guide [In case of using BP35C2-J11-T01] Insert the BP35C2-J11-T01 into the USB connector of your PC. © 2020 ROHM Co., Ltd. No. 63UG011E Rev.002 12/21 JUN.2020...
-
Page 13: Step2] Software Setup
LED near SW1 lights-up green. After powering ON, activate Tera Term and follow the below procedure. * In the figure, BP35C0-J11-T01 is used, but the process is the same when using BP35C1-J11-T01. [In case of using BP35C2-J11-T01] After inserting the BP35C2-J11-T01 into the USB connector, activate Tera Term and follow the below procedure. - Page 14 BP35C0-J11 Start up manual User’s Guide Screen Operation Details Tera Term starts up Select "File" -> "New Connection". Check the "Serial" in the window, select COM port (USB Serial port) you want to use, and click OK. The COM port is the number assigned when the USB is inserted into the PC.
- Page 15 BP35C0-J11 Start up manual User’s Guide Select “Setup” -> “General”. Select “English” for the language item in the window. Click OK after Selection. Important: If you do not perform this operation, the binary data will not be able to communicate properly.
-
Page 16: Step3] Running Test Macros
BP35C0-J11 Start up manual User’s Guide [STEP3] Running test macros 4.3. In order to confirm the operation, you can try to test sample macros. If you need it, please contact ROHM sales or distributor. Name (filename) Contents Sample macro It is a macro to realize the communication of Wi-SUN Enhanced (TeraTerm macro.zip) - Page 17 BP35C0-J11 Start up manual User’s Guide If you want to use your own macro, make the following statement first in the macro, if necessary: Tera Term Macro command Contents Set echo 1 Enable local echo. Set debug 2 Displays the display mode in hexadecimal.
-
Page 18: Fw Update
* Indicates version information and bank number. BP35C0-J11 is compatible with OTA (Over-The-Air: Via radio) update. We have released the FW (firmware) for the OTA update, so please perform an OTA UPDATE if there is a FW update. The version of FW that is being written can be checked by getting version information (Command code: 0x006B). -
Page 19: Appendix
The actual connection between the D-Sub connector and the AC adapter is as follows. * In the figure, BP35C0-J11-T01 is used, but the process is the same when using BP35C1-J11-T01. * Please use a plug with an external diameter of 5.5 mm, internal through Φ 2.1 mm, and a length of 9.5 mm. Also, please use the output voltage of 5V products. -
Page 20: Connect Uart Directly From Through Hole
Through-hole 2, it is possible to take out the UART terminal from BP35C0-J11 without switching the JP1. It is also possible to connect the BP35C0-J11 to the host MCU and the through-hole by the wiring as follows. Please try to evaluate using the MCU without using Tera Term etc.,... -
Page 21: Revision History
7. Revision history Ver. Date Contents Revised by 1.0.0 2019/03/01 Created new ROHM 1.0.1 2020/05/22 Modify format ROHM (Rev.001) 1.0.2 2020/06/01 Change the URL of ROHM Wi-SUN support ROHM (Rev.002) page © 2020 ROHM Co., Ltd. No. 63UG011E Rev.002 21/21 JUN.2020... - Page 22 Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM or any other parties. ROHM shall have no responsibility whatsoever for any dispute arising out of the use of such technical information.
