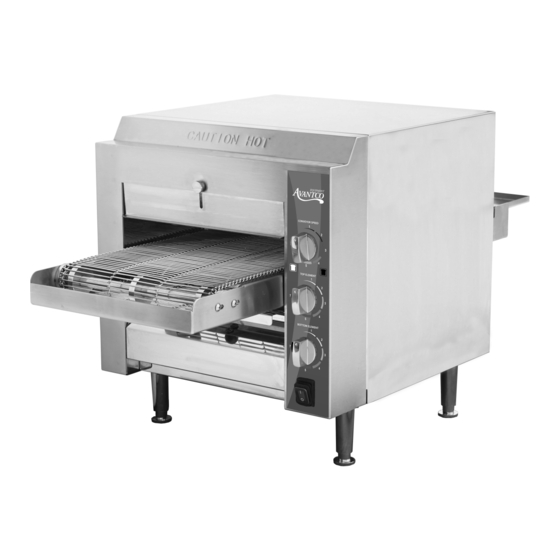

- Page 1 05/2020 USER MANUAL Adjustable Speed Conveyor Toasters 177CNVYOV14B - 208V 3500W (14”wide belt) 177CNVYOV14D - 240V 3600W (14”wide belt) 177CNVYOV10A - 120V 1700W (10.5”wide belt) 177CNVYOV10B - 208V 2800W (10.5”wide belt) 177CNVYOV10D - 240V 2800W (10.5”wide belt)
-
Page 2: Table Of Contents
INDEX Important Safety Informa ..Circuit Diagram ....... Before Using Your Oven....Conveyor O v e n ..Conveyor Oven ..Using Your Oven ..... Cleaning & Maintenance ....Limited Warranty.......... - Page 3 SAFETY When using electrical appliances, basic safety pr ways be followed, including the following: refully and completely. For commercial use only. DO NOT touch hot surfaces. Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids. Unplug this unit when not in use and before cleaning.
-
Page 4: Circuit Diagram
ADJUSTABLE THERMOSTAT TOP ELEMENTS ADJUSTABLE THERMOSTAT BOTTOM ELEMENTS (M1) L2 E CIRCUIT DIAGRAM 208V or 240V CONVEYOR OVEN 60Hz 177CNVYOV14B-208V 177CNVYOV14D-240V DESCRIPTION LEGEND MAIN SWITCH E1 / E2 TOP ELEMENT - 900W / 120V OR 875W / 100V E3 / E4... -
Page 5: Conveyor Oven
CIRCUIT DIAGRAM L2 E CIRCUIT DIAGRAM 120V CONVEYOR OVEN 60Hz 177CNVYOV10A-120V DESCRIPTION LEGEND MAIN SWITCH TOP ELEMENT - 420W / 60V E1 / E2 E3 / E4 BOTTOM ELEMENT - 420W / 60V CONVEYOR MOTOR 120V COOLING FAN 120V CONVEYOR SPEED CONTROL ADJUSTABLE THERMOSTAT TOP ELEMENTS ADJUSTABLE THERMOSTAT BOTTOM ELEMENTS (M1) -
Page 6: Using Your Oven
40 inches above the appliance. The appliance is to be mounted on floors than 12 inches beyond the equipment on all sides. Note: Model 177CNVYOV14B is for use on an individual branch circuit only. BEFORE USING Y OUR CONVEYOR OVEN... - Page 7 DIMENSIONS MODEL : CONVEYOR OVEN 177CNVYOV10A-120V 177CNVYOV10B-208V 177CNVYOV10D-240V 177CNVYOV14B-208V 177CNVYOV14D-240V 510 (20”) 14” MODEL 435 (17”) 10.5” MODEL 929 (36.5”) 452 (17.8”) 850 (33.4) Model Height Width Depth Belt width 177CNVYOV10A-120V 19.3” 17” 36.5” 10.5” 177CNVYOV10B-208V 19.3” 17” 36.5” 10.5”...
-
Page 8: Cleaning & Maintenance
CLEANING & MAINTENANCE CAUTION: THIS APPLIANCE SHOULD NOT BE IMMERSED IN WATER. U SE ONLY A DAMP CLOTH OR SPONGE DIPPED IN SOAPY WATER. DO NOT USE STEEL WOOL AS IT WILL DAMAGE THE BRIGHT STAINLESS STEEL FINISH. EXTERIOR & CRUMB TRAY Unplug the power cord from the wall outlet. -
Page 9: Limited Warranty
Avantco reserves the right to approve or deny the repair or replacement of any part or repair request. The warranty is not transferable. Avantco Equipment installed in/on a food truck or trailer will be limited to a period of 30 days from the original date of purchase.
