SIIG AV-GM0993-S1 Manual

3g/hd/sd-sdi pattern generator with serial control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

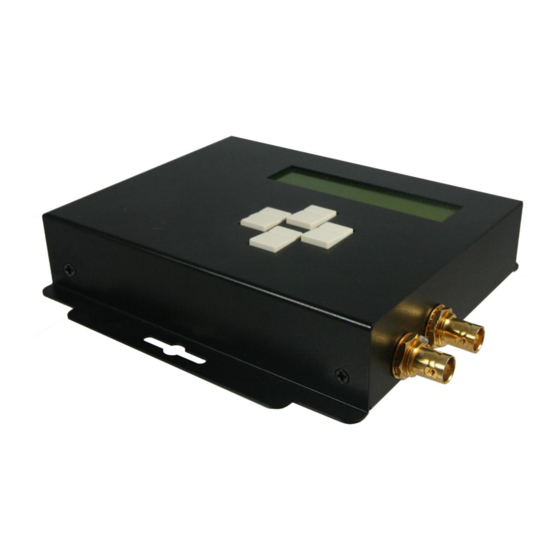

3G/HD/SD-SDI Pattern Generator
with Serial Control
P/N: AV-GM0993-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM0993-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG AV-GM0993-S1

Summary of Contents for SIIG AV-GM0993-S1

  • Page 1 3G/HD/SD-SDI Pattern Generator with Serial Control P/N: AV-GM0993-S1...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the AV-GM0993-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 (SMPTE-291M) are also provided. AV-GM0993-S1 can support up to 8 channel AES compliant audio with 48KHz sample rate. Another attractive feature of AV-GM0993-S1 comes from bypassing HDMI input and allows users with more testing patterns for connected display or treats AV-GM0993-S1 as an advanced HDMI to SDI converter with 3G capability.

  • Page 4: Specifications & Package Contents

    660g [1.5 lbs] Weight Package 1260g [2.8 lbs] Fixedness Interlocking power supply Power supply 5V 4A DC Power consumption 10 Watts [max] Operation temperature 0~40C [32~104F] Storage temperature -20~60C [-4~140F] Relative humidity 20~90% RH [no condensation] Package Contents 1x AV-GM0993-S1 1x AV-GM0973-S1...
  • Page 5 1x 5V power supply unit 1x 5V power supply unit 1x User manual 1x User manual The measurement results are from Tektronix WFM-7120 with SDI through 1m (3.3ft) long Belden 1694A.

  • Page 6: Menu Operation

    Menu Operation Menu Items 01 Format Resolution NTSC 720p 1080p 1080i Frequency 59.94 29.97 23.98 Output YCbCr 422 02 Video Patterns SMPTE Bar 100% Bar Check Field 1 Check Field 2 Check Field 3 Gradient R1 Gradient G1 Gradient B1 Gradient R2 Gradient G2 Gradient B2...
  • Page 7 40% Gray Black Noise Circle 1 Circle 2 Moire H Stripe R H Stripe G H Stripe B V Stripe R V Stripe G V Stripe B Chess 1 Chess 2 Sequence Text On-White On-Black Timer On-W/B On-B/W 03 Audio Mode Group Level...
  • Page 8 Square 2 2 Squares Square Inv Data Speed 05 ANC SMPTE-352M Data 06 System Status No Change Factory Now Save Version V1.00...

  • Page 9: Top View

    Panel Descriptions Top View Button Function Menu Trigger the menu operation Enter Enter the menu item Choose the last menu item Down Choose the next menu item Side View 1. SDI OUTPUT A: Connect to a SDI device for SDI, HD-SDI, or 3G-SDI signal output either from the chosen pattern or the converted HDMI source signal 2.

  • Page 10: Dip Switch

    The operation is shown in the EDID learning section. 1. Turn off AV-GM0993-S1 and set the pin 4 of DIP switch of AV-GM0993-S1 to OFF []. 2. Connect the HDTV to the HDMI port on the AV-GM0993-S1, and then turn on AV-GM0993-S1.
  • Page 11 Notice 1. In HDMI bypass mode, users must be aware of that the jitters coming from HDMI sources, such as DVD players, may be much higher than typical requirement according to SMPTE request on HD-SDI signals. This will result in SDI output with high jitters or even no SDI outputs! 2.

  • Page 13: Serial Commands

    Serial Command S Set Format Resolution Function Description: Set Resolution Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x11 Command 0x01 01 : 720p Parameter 1 02 : 1080i 03 : 1080p...
  • Page 14 Check Sum 0xad/0x58 Example Command: 0x08 0x50 0x47 0x33 0xff 0x11 0x01 0xe3 Acknowledgement: 0x03 0xaa 0xad...
  • Page 15 Set Format Frequency Function Description: Set Frequency Frequency Support : 720p : 50Hz, 59.94Hz, 60Hz 1080i : 50Hz, 59.94Hz, 60Hz 1080p : 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz NTSC : 59.94Hz : 50Hz Command Byte Name Value Comment Command Length 0x08 Check Code 1...
  • Page 16 Command Length 0x03 Acknowledgement 0xaa/0x55 Check Sum 0xad/0x58 Example Command: 0x08 0x50 0x47 0x33 0xff 0x12 0x01 0xe4 Acknowledgement: 0x03 0xaa 0xad...
  • Page 17 Set Video Pattern Function Description: Set Pattern Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x21 Command 0x01 01 : HDMI Bypass Parameter 1 02 : SMPTE Bar 03 : 100% Color Bar 04 : 75% Color Bar...
  • Page 18 1b : Gra Level Black->White 1c : 100% Red 1d : 100% Green 1e : 100% Blue 1f : 100% White 20 : 70% Gray 21 : 40% Gray 22 : Black 23 : Noise 24 : Circle 1 25 : Circle 2 26 : Moire 27 : V Stripe R 28 : V Stripe G...
  • Page 19 Acknowledgement: 0x03 0xaa 0xad Set Video TEXT Function Description: Set TEXT Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x22 Command 0x01 01 : OFF Parameter 1 02 : On/W 03 : On/B...
  • Page 20 Set Video Timer Function Description: Set Timer Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x23 Command 0x01 01 : OFF Parameter 1 02 : On-W/B 03 : On-B/W Check Sum...
  • Page 21 Set Audio Mode Function Description: Set Mode Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x31 Command 0x01 01 : OFF Parameter 1 02 : On Check Sum unsigned char chksum=0;...
  • Page 22 Set Audio Group Function Description: Set Group Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x32 Command 0x01 01 : 1+2 Parameter 1 02 : 3+4 Check Sum unsigned char chksum=0;...
  • Page 23 Set Audio Level Function Description: Set Level Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x33 Command 0x01 01 : Random Parameter 1 02 : Silence 03 : -42dB 04 : -36dB...
  • Page 24 Set Audio Mask Function Description: Set Mask Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x34 Command 0x01 01 : Off Parameter 1 02 : CH 1 03 : CH 2 04 : CH 3...
  • Page 25 0x03 0xaa 0xad Set Motion Function Description: Set Motion Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x41 Command 0x01 01 : No Motion Parameter 1 02 : Square 1 03 : Square 2...
  • Page 26 Set Motion Speed Function Description: Set Speed Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x42 Command 0x01 01 : 1 Parameter 1 02 : 2 03 : 3 04 : 4...
  • Page 27 0x03 0xaa 0xad Set ANC Data Function Description: Set SMPTE_352M On/Off Command Byte Name Value Comment Command Length 0x08 Check Code 1 0x50 Check Code 2 0x47 Check Code 3 0x33 Device ID 0xff Command ID 0x51 Command 0x01 01 : Off Parameter 1 02 : On Check Sum...

  • Page 28: Limited Warranty

    Limited Warranty The SELLER warrants the AV-GM0993-S1 3G/HD/SD-SDI Pattern Generator with Serial Control to be free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order...
