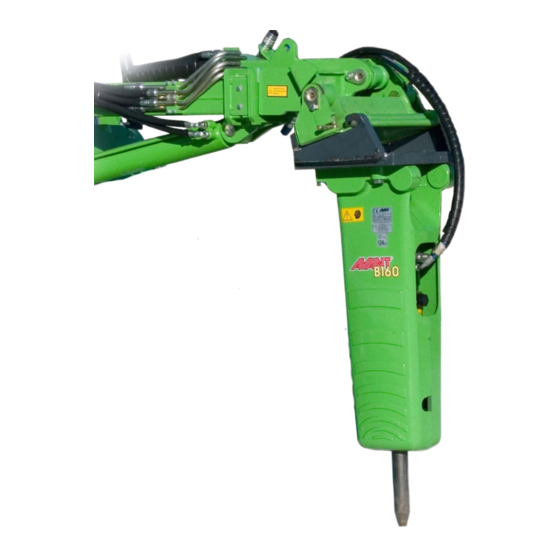

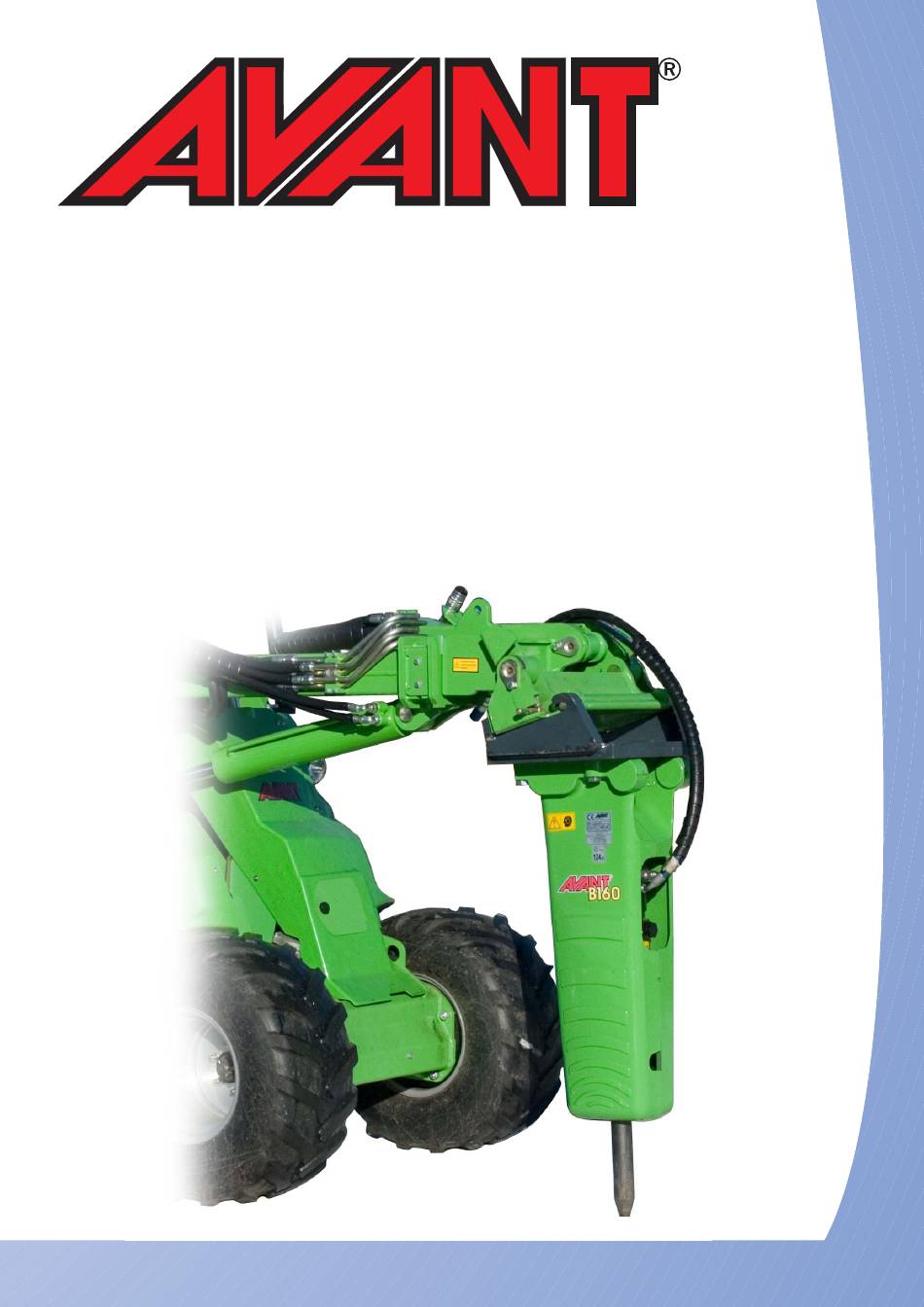

- Page 1 Hydraulic Breakers AVANT B70 Silent AVANT B110 Silent AVANT B160 Silent Operator’s Manual 2008-...
- Page 2 Table of contents hydraulic breaker TABLE OF CONTENTS OPERATION ........................3 1.FOREWORD................................4 1.1 IMPORTANT SAFETY INFORMATION ......................4 1.2 WARRANTY ..............................5 1.3 SPARE PART ORDERS............................5 2. MACHINE NUMBERS ............................6 2. 1 MODEL AND SERIAL NUMBER........................6 3. PRODUCT INTRODUCTION ..........................7 3.1 OVERVIEW ................................7 3.2 REMOVAL FROM PACKAGE ..........................7 3.3 LIFTING INSTRUCTIONS ..........................7 3.4 MAIN PARTS..............................9...
- Page 3 hydraulic breaker Operation...
- Page 4 Foreword hydraulic breaker Basic safety precautions are outlined in the "Safety" section of this manual and in the description of operations where hazards exist. Warning labels have also been put on the machine to provide instructions and to identify specific hazards which if not observed could cause bodily injury or death to you or other persons.
- Page 5 hydraulic breaker Warranty A complete warranty claim for a hydraulic breaker attachment includes at least the following information. Model and serial number Carrier model Working hours and service history Application Providing this information makes it easy to handle the warranty claim prop- erly and swiftly.
- Page 6 Machine numbers hydraulic breaker The equipment serial number is stamped on the valve body. The model and serial number are also located on the CE marking. Check that the model cor- responds to the one given on the cover of this manual. It is important to make correct reference to the serial number of the attach- ment when making repairs or ordering spare parts.
- Page 7 Product introduction The product is a hydraulically operated breaker. It can be used on all AVANT-carriers which meet the necessary hydraulic and mechanical installation re- quirements. The unit functions by repeatedly raising a steel piston and driving it down onto the head of a removable breaking tool.
- Page 8 Product introduction hydraulic breaker Lifting devices must safely carry the working weight of the product. See “Hammer specifications” on page 46. Place chains or slings, as shown by the illustration, to lift the product. Below are some common safety instructions concerning lifting operations. In addition to this, the local, national standards for machines and lifting-tack- les must always be strictly observed.
- Page 9 hydraulic breaker Product introduction The main parts of the hammer are shown below. A. Side plates B. Mounting flange C. Accumulator D. Hammer mechanism E. Hose connections F. Grease nipples G. Tool and tool bushing retaining mechanism...
- Page 10 Safety hydraulic breaker All mechanical equipment can be hazardous if operated without due care or correct maintenance. Most accidents involving machine operation and maintenance are caused by failure to observe basic safety rules or precau- tions. An accident can often be avoided by recognizing potentially hazard- ous situations before an accident occurs.
- Page 11 hydraulic breaker Safety Study also the operating and maintenance manual of your carrier before op- erating the attachment. All the time you are working with the product, take care and stay alert. Al- ways be alert for hazards. The possibility of a serious or even fatal accident is increased when you are intoxicated.
- Page 12 Safety hydraulic breaker Work sites can be hazardous. Inspect the site before working on it. Check for potholes, weak ground, hidden rocks etc. Check for utilities (elec- tric cables, gas and water pipes etc.). Mark the positions of underground ca- bles and pipes if you will be breaking the ground.
- Page 13 hydraulic breaker Safety Wear ear protection against high noise level to prevent personal injury. Operating the product beyond its design limits can cause damage. It can also be dangerous. See “Hammer specifications” on page 46. Do not try to enhance the product's performance by unapproved modifica- tions.
- Page 14 Safety hydraulic breaker Hydraulic fluid at system pressure can injure you. Before disconnecting or connecting hydraulic hoses, stop the carrier engine, operate the controls to release pressure trapped in the hoses. During the operation, keep people away from the hydraulic hoses. There might be pressurized oil trapped inside the product even if it is discon- nected from the carrier.
- Page 15 hydraulic breaker Safety Defective equipment can injure you or others. Do not operate equipment which is defective or has missing parts. Make sure the maintenance procedures in this manual are completed be- fore using the product. Do not try to do repairs or any other maintenance work you do not under- stand.
- Page 16 Operation hydraulic breaker The hammer is designed to be used in breaking concrete, road surface or asphalt, hard or frozen ground. It is also suitable for light trenching and benching applications or in ground compacting. It can be also used in break- ing small and soft boulders.
- Page 17 hydraulic breaker Operation To increase the hammer's working life, pay particular attention to correct working methods and how to choose the correct tool for the job. There are essentially two ways of breaking with a hydraulic hammer. Penetrative breaking (or cutting) In this form of breaking a moil point or chisel tool is forced inside the mate- rial.
- Page 18 Operation hydraulic breaker 1. Set the engine speed to the recommended engine RPM for correct amount of oil supply. 2. Carefully operate the carrier controls to place the hammer and boom into the breaking position. Quick and careless boom movements could result in damage to the hammer.
- Page 19 hydraulic breaker Operation 7. A safety screen is recommended to protect the operator from flying debris. Keep the cabin windows and doors closed during operation. 8. Note: Listen to the hammer's sound when you are using it. If the sound becomes weaker and the impact less efficient, the tool is misaligned with the material and/or there is not enough down force on the tool.
- Page 20 Operation hydraulic breaker 13. Stop the hammer quickly. Do not allow the hammer to fall down and make idle strokes when an object breaks. Frequent idle strokes have a deteriorating effect on the hammer. If the hammer falls through, the housing wears out more quickly.
- Page 21 hydraulic breaker Operation 20. Do not use the hammer or hammer tools for lifting. (see picture 8) 21. The tool shank must be well greased during operation. Regular visual in- spections during operation are recommended. An unlubricated tool shank requires more frequent greasing intervals. A tool shank covered with excessive grease requires less frequent greasing intervals.
- Page 22 Operation hydraulic breaker Stage 1: • Lift up the two locking pins on both sides of the attachment coupling plate and turn them backward so that they remain in the up position • Make sure that the pins remain in the up position, otherwise you cannot couple the attachment properly! Stage 2: •...
- Page 23 hydraulic breaker Operation The transportation and parking positions are shown below. When moving with the hammer, ensure that the hammer is not too close to the ground. Also make sure that you see the tip of the tool at all times. 1.
- Page 24 Operation hydraulic breaker In case of special conditions of use, please consult your local dealer for in- structions. Observe the following points when the hammer is stored. In this way the vital parts of the attachment are protected from rust and the machine is ready to be used whenever necessary.
- Page 25 hydraulic breaker Lubrication...
- Page 26 Hammer tool greasing hydraulic breaker l FUCHS Meisselpaste l KENDALL Tough TAC l KLÜBER Crafloscon C-SG 0 Ultra l LE 3751/3752 Almagard varipurpose lubricant l SHELL Kuggfett l SHELL Albida HLS 2 l WYNNS GS80 1. Tool shank must be well lubricated before installing tool. 2.
- Page 27 hydraulic breaker Hammer tool greasing Insufficient greasing or improper grease may cause: l Abnormal wear of tool bushing and tool l Tool breakage 1. Position the hammer standing upright resting on the tool on firm surface. 2. Stop carrier engine and wait 10 minutes for oil pressure to drop inside hammer.
- Page 28 The machine must be moved to bring the oil tem- perature above 0 °C before hammering can start (viscosity 1000 cSt or 131 °E). AVANT Recommends: Shell tellus TX46 in normal conditions. Shell tellus TX68 when ambient temperature exceeds 35 °C.
- Page 29 hydraulic breaker Carrier hydraulic oil Table below shows hydraulic oils recommended for hammer use. The most suitable oil is selected in such a way that the temperature of the hydraulic oil in continuous use is in the ideal area on the chart and the hydraulic system is used to best advantage.
- Page 30 35 °C. The correct hydraulic oil viscosity is thus ensured. Make sure that the AVANT carrier is equipped with an oil cooler before installing the hammer.
- Page 31 hydraulic breaker Maintenance...
- Page 32 Routine maintenance hydraulic breaker This product is a precision made hydraulic machine. Therefore great care and cleanliness should be taken when handling any of the hydraulic compo- nents. Dirt is the worst enemy in hydraulic systems. Handle the parts carefully and remember to cover any cleaned and dried parts with clean lint-free cloth.
- Page 33 hydraulic breaker Removal of tool Model B110 B160 Tool diameter (worn out) 34 mm 40 mm 48 mm Tool and tool retaining pins Tool grease 1. Set the hammer on level ground. 2. Make sure the carrier's transmission is in neutral and the parking brake is engaged.
- Page 34 Removal of tool hydraulic breaker 6. Remove tool. Use lifting device if necessary. See “Tool specifications” on page 48. 1. Clean all parts carefully. 2. Measure the tool diameter (X) from the area marked on the illustration. Replace tool if necessary. 3.
- Page 35 hydraulic breaker Lower tool bushing Model B110 B160 Tool bushing inner diameter (worn out) 38 mm 44 mm 52 mm Contact surfaces of front head Thread grease 1. Remove tool.
- Page 36 Lower tool bushing hydraulic breaker 2. Remove lower tool bushing. 3. Remove seal from lower tool bushing. 1. Clean all parts carefully. 2. Measure the bushing inner diameter (marked Y). Replace bushing if necessary. 3. Install seal. 4. Lubricate the contact surfaces of the front head. 5.
- Page 37 Adjust the relief valve in carrier hydraulic circuit according to carriers specification. Measure the high pressure in the hammer inlet line. Check the installation. Check the installation. Check the pump and the other hydraulic components on the carrier. The hammer must be serviced in an authorized Avant service shop.
- Page 38 Troubleshooting hydraulic breaker The hammer must be serviced in an authorized Avant service shop. Check the installation. Check the relief valve operation on the carrier. Adjust the relief valve in carriers hydraulic circuit according to carriers specification. Measure the high pressure in the hammer inlet line.
- Page 39 Measure the high pressure in the hammer inlet line. Contact your local dealer for more information. Check the installation. Check the pump and the other hydraulic components. The hammer must be serviced in an authorized Avant service shop. The hammer must be serviced in an authorized Avant service shop.
- Page 40 Check hydraulic oil. See “Requirements for hydraulic oil” on page 28. Check the installation. Check the pump and the other hydraulic components on the carrier. The hammer must be serviced in an authorized Avant service shop. Check the installation. Refer to recommended use and to correct working methods. See “Operating instructions”...
- Page 41 If further assistance is required, please prepare to answer the following questions before calling your dealer. l Breaker model and serial number l Breaker working hours and service history l AVANT carrier model l Installation: Oil flow, operating pressure and return line pressure if known l Application...
- Page 42 Troubleshooting hydraulic breaker...
- Page 43 hydraulic breaker Specifications...
- Page 44 Hammer specifications hydraulic breaker Model AVANT B70 AVANT B110 AVANT B160 Working weight 80 kg 120 kg 160 kg Impact rate 1300...2500 bpm 1600...2600 bpm 1000...2000 bpm Operating pressure 100...120 bar 120...140 bar 120...140 bar Pressure relief, min 150...170 bar 170...190 bar...
- Page 45 Hammer specifications AVANT B70 AVANT B110 AVANT B160...
- Page 46 Tool specifications hydraulic breaker Chisel (A) A33841 360 mm 2,7 kg 36 mm Moil point (B) A33842 360 mm 2,6 kg 36 mm Wedge (C) A33843 380 mm 3,2 kg 100 mm Wedge (D) A33844 380 mm 3,2 kg 100 mm Chisel (A) A33845 405 mm...
- Page 47 Tel. +358 3 347 8800 www.avanttecno.com Fax +358 3 348 5511 e-mail: sales@avanttecno.com AVANT has a policy of continuing improvement, and retains the right to change specifications without notice. © 2008 AVANT Tecno Oy. All rights reserved. Printed in Finland...
