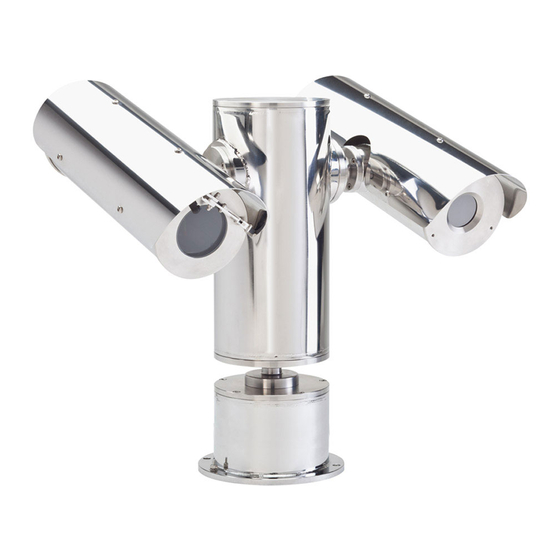

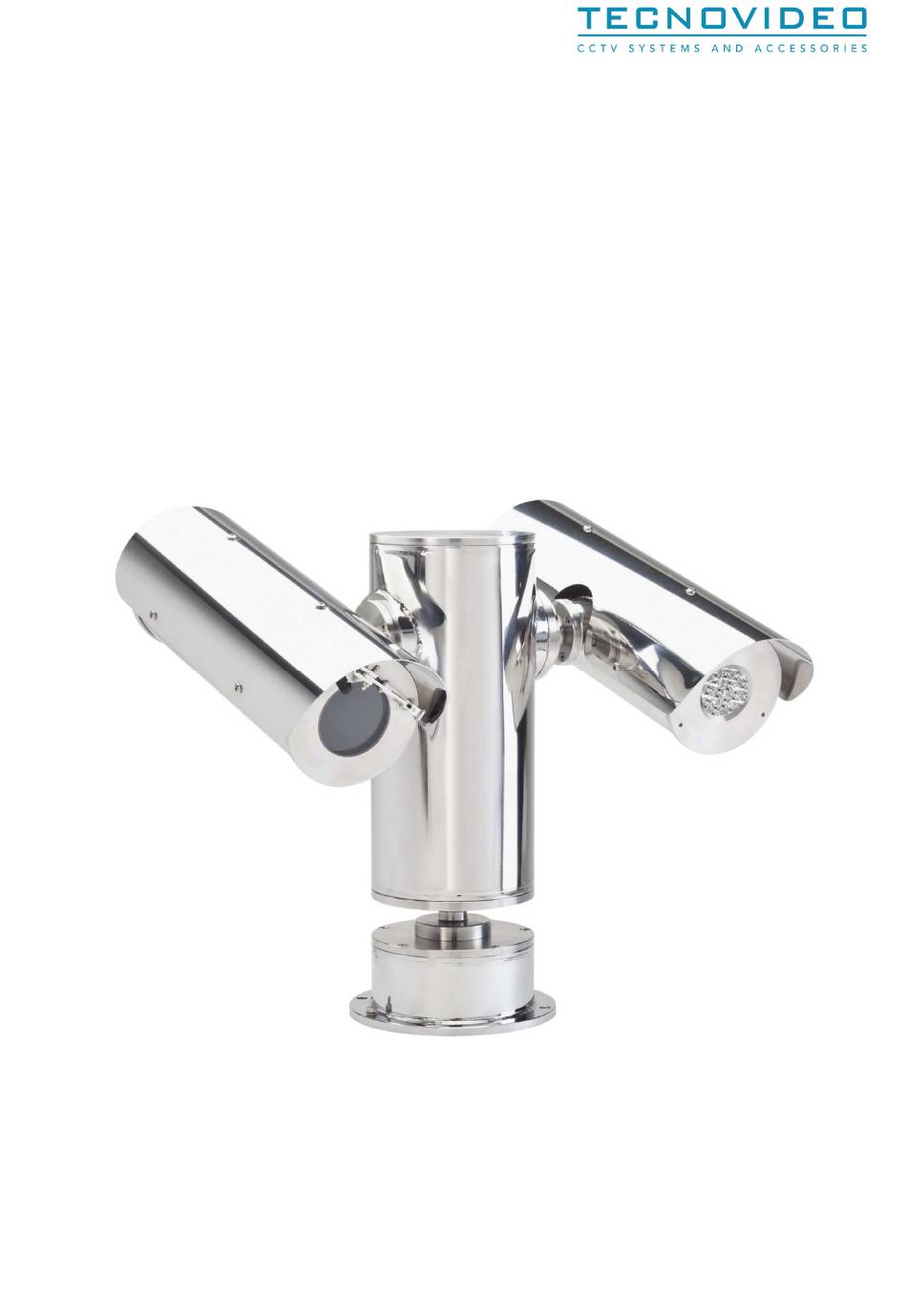

- Page 1 PTZ250D-CRLED with Stainless Steel PTZ Camera Station integrated IR LED illuminator Installation manual Issue 20200115...
- Page 2 TABLE OF CONTENTS Page INSTALLING THE UNIT CERTIFICATIONS IR LED ILLUMINATOR ELECTRICAL CONNECTIONS IR LED calibration and settings SETTING THE UNIT ADDRESS PERFORM PTZ ELECTRICAL CONNECTIONS Auxiliary functions (available on CR versions only) Password and reset button (available on CR versions only) Default limits Changing the default limits Preset...
- Page 3 INSTALLING THE UNIT Prior to installation and operation, read carefully all instructions in this manual and heed all warnings. Unpack this equipment and handle it carefully. If the package appears to be damaged, notify the shipper immediately. Use the original packaging to transport the unit. Disconnect power supply before moving it. In case of returning the equipment, the original packaging must be used.
- Page 4 IR LED ILLUMINATOR ELECTRICAL CONNECTIONS Connector Connector Not connected 24V~/V⎓ (V2/-) Not connected 24V~/V⎓ (V1/+) +12V⎓ AUX IR LEDs (V+) 0V⎓ AUX IR LEDs (V-) IN cmd START C+ or Dry contact Light sensor photocell C + IN cmd START E- or Dry contact Light sensor photocell E - OUT Day&Night_COM photorelay OUT Day&Night_NO photorelay...
- Page 5 Open the base junction box and perform the connections on the MF_RTX interface board. Connections through the plug-in blocks are made by Tecnovideo, while screw terminal blocks are used for the field installation. It must be noted that each plug-in connector is different in shape and/or colour to avoid any wrong connection.
- Page 6 10A T 250V~ 5x20 All the fuse must be T type (time lag). Different supply voltage can be supplied and may require different fuse values. In such cases, please contact Tecnovideo. Auxiliary functions (available on CR versions only) The unit has 8 auxiliary functions, as described below: Aux1 is used for Wiper activation only (this function will activate the wiper for approx.
- Page 7 Default limits The unit is set with default values to achieve the following angles: +/- 90° Pan (left/right); +/- 90° Tilt (up/down). CR versions do not have default pan limits. Factory limits are about +/- 175° Pan (left/right) and +/- 100° Tilt (up/down). CR versions do not have factory pan limits. Changing the default limits Left Limit Right Limit...
- Page 8 TECNOVIDEO S.r.l. Via A. De Gasperi, 3 36030 Villaverla (VI) ITALY Tel.
