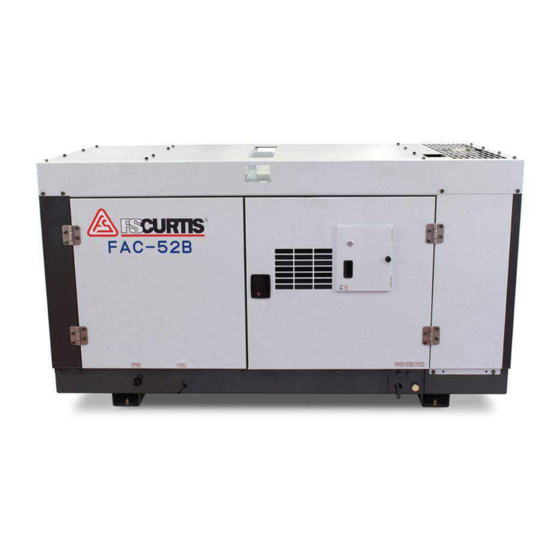

Summary of Contents for FScurtis FAC-52B
-
Page 13: Safety Warning Labels
1.Safety Safety Warning Labels Following labels are attached to the machine. Keep them clean at all times. If they are damaged or missing, immediately place an order with your nearest dealer for replacement. Part numbers are indicated on the lower right corner of the label. Adhere a new one to the original location. - Page 14 1.Safety The pasting position of safe warning label is as follows. 1-11...
-
Page 29: Operation
4.Operation 4.4.1 Procedure to start the unit Be sure to warm-up Be sure to let unit warm-up after starting for smooth operation of the engine and the compressor. Do not operate the engine at full load immediately after it starts up. This will shorten the equipment life. ... - Page 30 4.Operation 4.4.2 Operating procedures when engine fails to start up on first attempt When the engine fails to start up even after performing the startup procedures ① to ④, do not keep the starter running, but set the starter switch back to ”STOP” and wait about 30 seconds. Then, repeat the startup procedure once again.
-
Page 32: Air Bleeding In Fuel Line
4.Operation 4.4.5 Performance check of safety valve Keep face or hand away from the discharging outlet of safety valve. It is very dangerous because high-pressure compressed air jets out. Be sure to check the safety valve“1”performance once a day. -
Page 36: Periodic Inspection/Maintenance
5.Periodic Inspection/Maintenance Periodic Inspection List (Unit:Hour) Every Every Every Every Every Every Maintenance Daily Page 1,000 2,000 3,000 Check compressor oil level. ○ Drain separator receiver tank. ○ Check looseness in pipe connecting part, and ○ wear and tear of pipe. Check oil, water, fuel and air leak. - Page 37 5.Periodic Inspection/Maintenance ◎Refer to engine operation manual for inspection and maintenance of an engine. (Unit:Hour) Every Every Every Every Every Every Maintenance Daily Page 1,000 2,000 3,000 Drain fuel tank. ○ Check sedimenter for condensate. ○ Check fuel. ○ Check engine oil level. ○...
- Page 40 5.Periodic Inspection/Maintenance 5.5.3 Check battery electrolyte [Every 250 hours] If there seems to be a problem in starting an engine due to a flat battery, carry out the checks by following the procedures below: 1. Ordinary type battery: Check battery electrolyte level and if the level is not within the specified level, add distilled water.
- Page 43 5.Periodic Inspection/Maintenance 5.5.9 Change air filter element [Every 500 hours] Use our genuine part Air filter is an important part which is crucial to machine's performance and life. Be sure to use genuine parts. <Procedure> ① After removing the cap “1” by loosening its latch “2”, clean its interior properly.
- Page 48 5.Periodic Inspection/Maintenance 5.5.21 Change o-ring of unloader [3,000 hours or every 3 years] When reassembling, apply sufficient grease to O-ring Slot/O-ring and sliding surface. Use CALTEX MULTIFAK EP1 grease or equivalent. Grease of poor quality will deteriorate the material. <Caution during O-ring replacement>...
- Page 63 2011 年 月 日 初版 2011 年 月 日 修订 北越工业株士会社 发行者 总公司 工厂 新泻县燕市下粟生津 3074 TEL 0256-93-5571 FAX 0256-94-7567 （禁止擅自复印以及转载） ＨＯＫＵＥＴＳＵ ＩＮＤＵＳＴＲＩＥＳ ＣＯ., ＬＴＤ. 8TH FLOOR SHINJUKU SAN-EI BLDG, 22-2 NISHI-SHINJUKU 1-CHOME,SHINJUKU-KU TOKYO 160-0023 JAPAN TEL:81-3-3348-7281 FAX:81-3-3348-7289 URL:http//www.airman.co.jp Copyright(C)2012 CURTIS-TOLEDO,INC. All Rights Reserved. 39600 13333 Printed JUN.2013...
