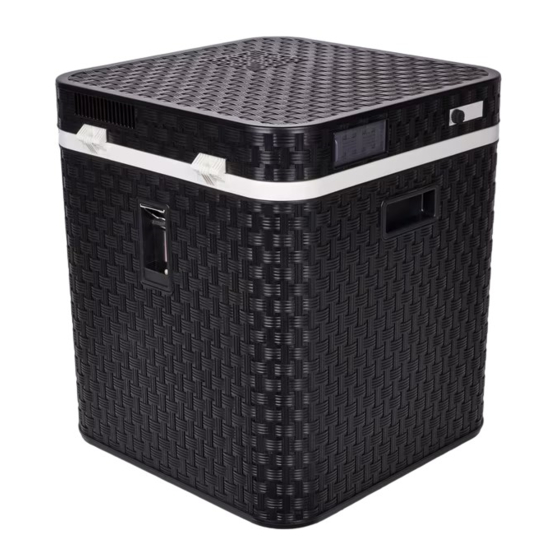

Asaklitt 31-8262-1 Quick Start Manual

12 V Plastic Wicker
Cooler Box
Art.no 31-8262-1,-2
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for any
errors in text or images and any necessary changes made to
technical data. In the event of technical problems or other queries,
please contact our Customer Services.

Safety

• The cooler box is intended for indoor use or under a sheltered
roof protected from rain and direct sunlight.
• The cooler box is designed for temporary use only and not for
continuous operation.
• Do not sit on the cooler box.
• Do not place any objects on the box so that the fan vent is blocked.
• Always guarantee a free flow of air around the cooler box
housing during operation.
• Never cover the cooler box during use.
• Always place the cooler box on a flat, stable surface.
• Do not subject the cooler box to knock and blows.
• Do not attempt to open the housing of the cooler box or modify it
in any way.
• All repairs must only be carried out by qualified service technicians.

Troubleshooting guide

The cooler box • Make sure that the power lead is whole,
won't turn on. undamaged and properly connected to
the 12 V socket.
• Check that the 12 V socket is live.
• Check the fuse status in the cooler box
12 V plug. Change if necessary,
see the Changing the fuse section above.
The cooler box • The automatic fan may turn on and off
has an automatic sporadically in order to maintain proper
fan for temperature temperature. This is completely normal.
regulation.
GREAT BRITAIN • CUSTOMER SERVICE tel: 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk
ENGLISH

Buttons and functions

1 2 3
˚C
COLD OFF HOT
6
5
1. Carrying handle
2. Power cord compartment
3. Control panel with LED display
4. Lid latch
5. Carrying handle
6. Fan. Note: Do not obstruct during use.
7. Ventilation ports
8. Bottle opener

Operating instructions

Note:
• Connecting the cooler box to 230 V mains will require
a compatible power adaptor e.g. Art.no 31-1567.
• The LED display only displays an approximate internal temperature.
Many factors can influence the box's internal temperature such
as ambient temperature, the amount packed and the method
of packing.
1. Connect the cooler box to a 12 V socket.
2. Select the heat (HOT) or cooling (COLD), function using
the function switch on the control panel. Single LED indicators sit
above each of the two functions. Green = COLD, red = HOT.
3. Turn the selector switch to OFF to turn the cooler box off.
Note:
• Turn the cooler box off and let it rest for 5 min before switching
4
between hot and cold functions.
• The fan is used for automatic temperature regulation whenever
the heat function is activated.

Care and maintenance

• Always make sure the cooler box is turned off and unplugged
before cleaning.
• Never pour water directly into the cooler box during cleaning.
Wipe the interior and exterior of the with a damp cloth. Use only
mild cleaning agents, never solvents or corrosive chemicals.
• Turn off the cooler box and pull its lead from both the box and 12 V
socket or power adaptor when not in use. Unplug any power
lead from the wall outlet, if used.
7 • Once cleaned, the cooler box should be stored in a dry,
dust-free environment and out of children's reach.

Replacing the fuse

The 12 V plug also doubles as a fuse holder. Changing procedure:
8
1. Unscrew the tip of
the plug where the fuse
holder is located.
3. Screw the fuse holder back into place to complete
the procedure.

Disposal

This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local council.

Specifications

Connection
Fuse
Cooling capacity
Warming capacity
Capacity
External size (W × D × H) 45 × 45 × 52 cm
Max internal height
Weight
2. Pull out the fuse holder
and replace the damaged fuse
(8 A, 6 × 32 mm).
12 V DC
8 A, (6 × 32 mm)
48 W (cools to max 15 ºC below
the surrounding ambient temperature)
41 W (warms up to max 65 ºC)
40 l
39 cm
7.7 kg
