V1.1-M 2Sep2020

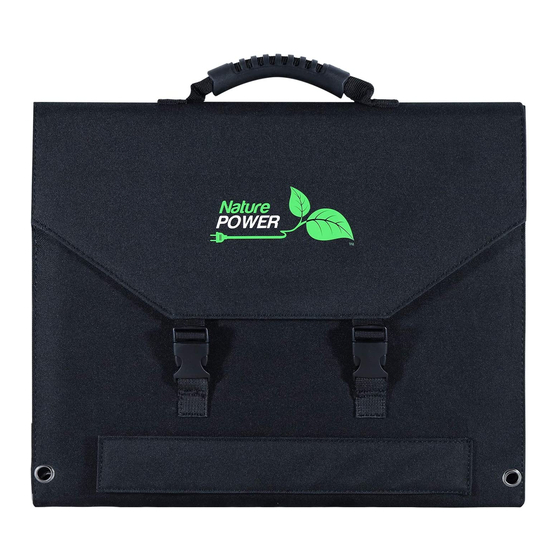

120 Watt Portable Folding Solar Panel
User Manual
WARNING:
Read carefully and understand all assembly and operation instructions before
operating. Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.
#55120
SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nature Power 55120
Summary of Contents for Nature Power 55120
- Page 1 120 Watt Portable Folding Solar Panel User Manual WARNING: Read carefully and understand all assembly and operation instructions before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. #55120 SAVE THESE INSTRUCTIONS...
-
Page 2: Important Safety Information
Important Safety Information Thank you for choosing a Nature Power Product. Save the receipt and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. This product is designed for certain applications only. the distributor cannot be responsible for issues arising from modification. - Page 3 Cautions Never touch the end of output cables with your bare hands when the modules are irradiated. Handle wires with rubber-gloved hands to avoid electric shock. Do not wear metallic jewelry when working on electrical equipment. Product should be installed and maintained by qualified personnel. Do not drop tool or other item on the glass of the solar module.
-
Page 4: Parts List
Charge Controller can regulate multiple solar panels. Selecting the correct battery Nature Power does not offer batteries. However, please choose a 12 Volt rechargeable battery. Do not attempt to recharge non-rechargeable batteries. 6 Volt battery configurations may also be used if connected in series (Negative to Positive). - Page 5 Mounting the solar panel 1, Pull out the support stand on the back of solar panel and place on a flat surface, Then it can be placed stably and at an angle to obtain the maximum sunlight at different sun heights. 2, Use the ropes and holes on solar panel to hang the solar panel where you need.
- Page 6 1, SAE-Battery Clamp Cable For 12V battery charging, Charge controller is required and some other connecting cabel might be need depends on the model of charge controller, Please contact Nature Power for more information. SAE to Anderson Output Cable Anderson connector...
- Page 7 Charge Controllers help to protect the battery(s) and solar panel(s) from harmful reverse currents, battery over charging and high wattage surges, addition protections are found on larger charge controllers. Nature Power Products offers charge controllers from 8Amp-32Amp. One Charge Controller can regulate multiple solar panels.
-
Page 8: Limited Warranty
Limited Warranty Nature Power warrants our products to the original purchaser that this product is free from defects in materials and workmanship for the period of 2 year from date of purchase, In the case of product defect, contact Nature Power customer service to receive trouble shooting. If defective part or unit should be returned, a Return Authorization Number must be issued by Nature Power and the defective part or unit should be returned to the authorized location at the purchasers’...
