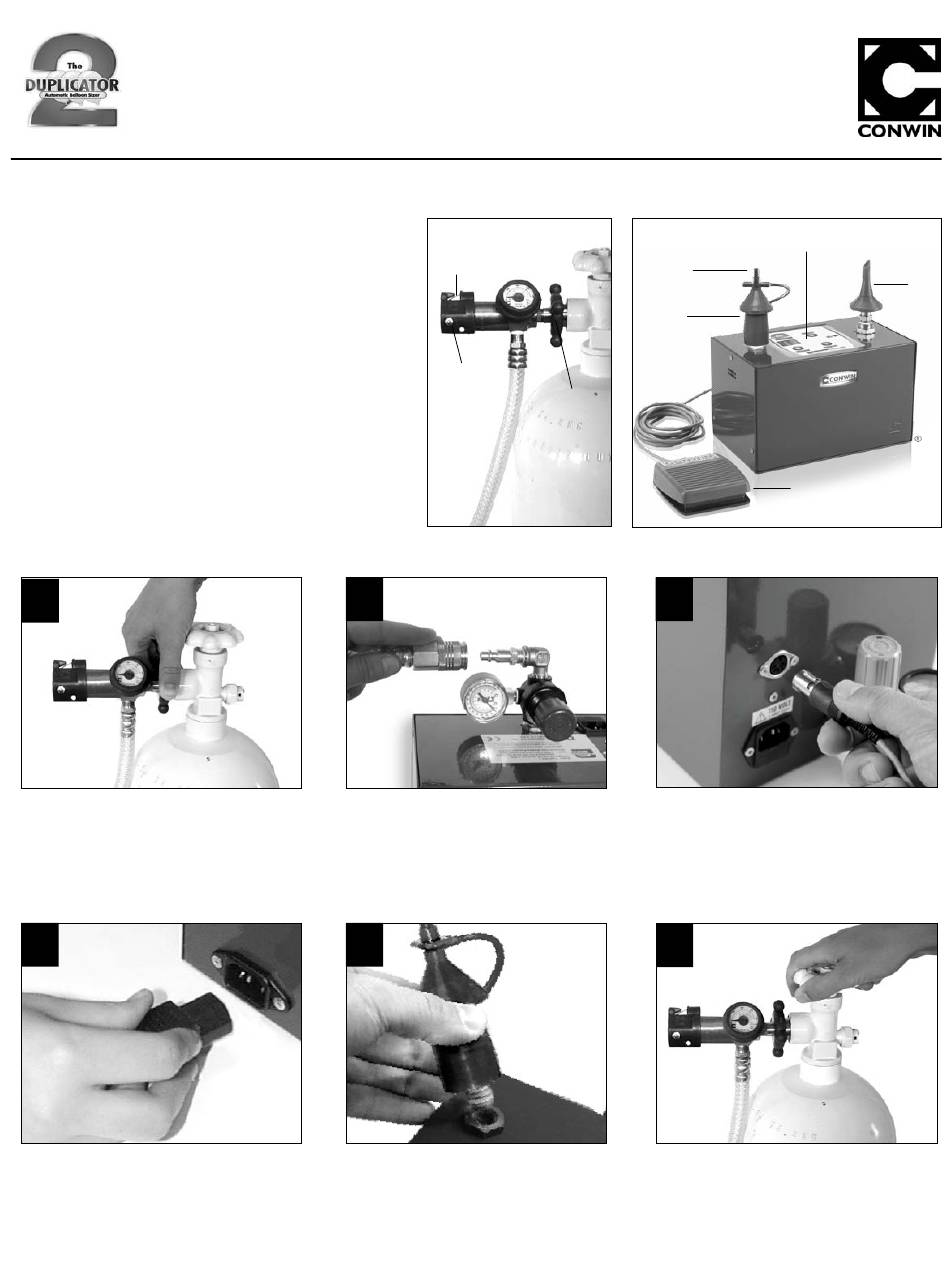

CONWIN Duplicator 2 Instruction Sheet

Duplicator 2 Inflator
Instruction Sheet

Getting Started

• To prevent the risk of electrical shock, do not use the Duplicator
2 outdoors when weather conditions are wet. Never operate
unit on a wet floor or work area.
• IMPORTANT - Before plugging Duplicator 2 into an outlet,
refer to electrical rating listed on back of unit to verify that
voltage is correct.
• If the Duplicator 2 malfunctions or is damaged, discontinue
use and unplug unit from electrical outlet. Contact an authorized
Conwin Service Center for details on how to receive service.
• Never attempt to repair the Duplicator 2 yourself. Opening the
Duplicator 2 case will automatically void manufacturer warranty.
Contact an authorized Conwin Service Center for all repairs.
• When using helium or nitrogen, always secure the cylinder in a
safety stand or wall bracket.
1
Hand-tighten the primary regulator to a helium or
nitrogen cylinder. (For Italian and Russian inflators
use a wrench to tighten regulator.) Make sure the
cylinder is properly secured in a safety stand or wall
bracket prior to attaching the primary regulator.
Do not open the cylinder valve until Step 6.
4
Plug the power cord into the back of the unit and
into an electrical outlet. (A power strip with surge
protector is recommended.) The digital display
will appear when unit has power.
1 Duplicator 2 Inflator
1 Primary Regulator & Supply Hose
1 SR Latex Outlet
1 Second Stage Regulator
Primary Regulator
Ribbon Cutter
Disc Tyer Post
2
Press-Fit Connection
Connect the supply hose to the adjustable
regulator in the back of the unit.
5
Hand-tighten the SR Latex Outlet.
1 Extension Tip
1 Auto-Fill Foil Outlet
1 Foot Pedal
1 Power Cord
Extension
Tip
SR Latex
Outlet
Hand-Tight
Connection
3
Plug the foot pedal into the back of the unit.
6
Slowly open the cylinder valve. Make sure the
valve is fully opened. The cylinder pressure will
read on the gauge located on the regulator.
The inlet pressure will read on the second stage
regulator gauge, located on the back of the unit.
Digital Settings
Foil
Outlet
Foot Pedal
