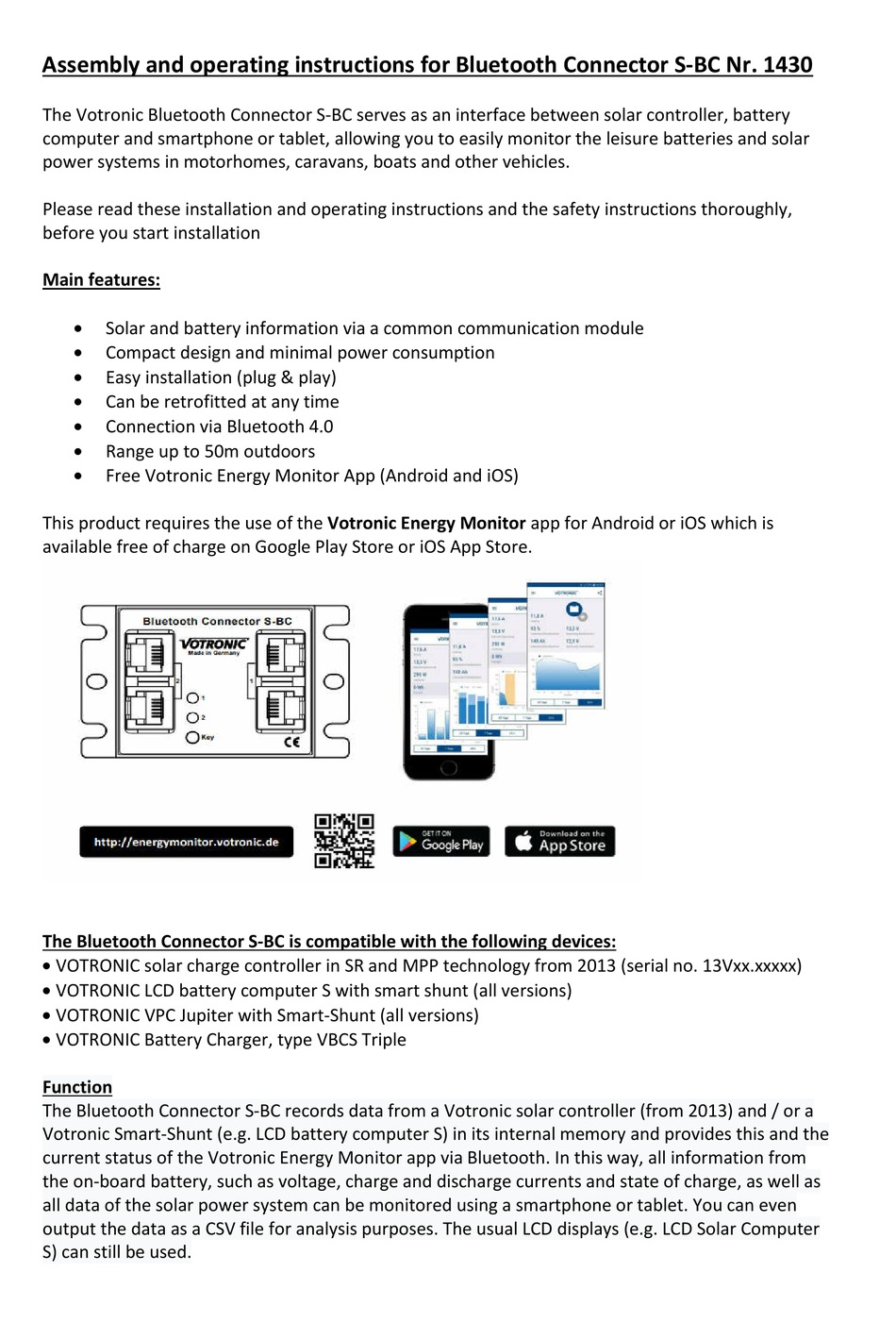

Assembly and operating instructions for Bluetooth Connector S-BC Nr. 1430

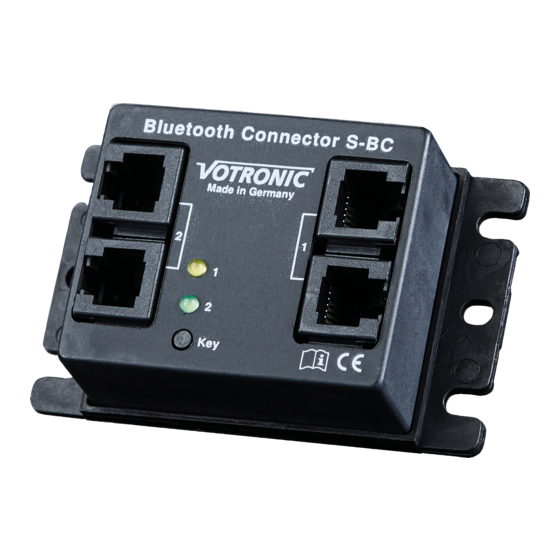

The Votronic Bluetooth Connector S-BC serves as an interface between solar controller, battery
computer and smartphone or tablet, allowing you to easily monitor the leisure batteries and solar
power systems in motorhomes, caravans, boats and other vehicles.
Please read these installation and operating instructions and the safety instructions thoroughly,
before you start installation
Main features:
Solar and battery information via a common communication module

Compact design and minimal power consumption

Easy installation (plug & play)

Can be retrofitted at any time

Connection via Bluetooth 4.0

Range up to 50m outdoors

Free Votronic Energy Monitor App (Android and iOS)

This product requires the use of the Votronic Energy Monitor app for Android or iOS which is
available free of charge on Google Play Store or iOS App Store.
The Bluetooth Connector S-BC is compatible with the following devices:
 VOTRONIC solar charge controller in SR and MPP technology from 2013 (serial no. 13Vxx.xxxxx)
 VOTRONIC LCD battery computer S with smart shunt (all versions)
 VOTRONIC VPC Jupiter with Smart-Shunt (all versions)
 VOTRONIC Battery Charger, type VBCS Triple
Function
The Bluetooth Connector S-BC records data from a Votronic solar controller (from 2013) and / or a
Votronic Smart-Shunt (e.g. LCD battery computer S) in its internal memory and provides this and the
current status of the Votronic Energy Monitor app via Bluetooth. In this way, all information from
the on-board battery, such as voltage, charge and discharge currents and state of charge, as well as
all data of the solar power system can be monitored using a smartphone or tablet. You can even
output the data as a CSV file for analysis purposes. The usual LCD displays (e.g. LCD Solar Computer
S) can still be used.
