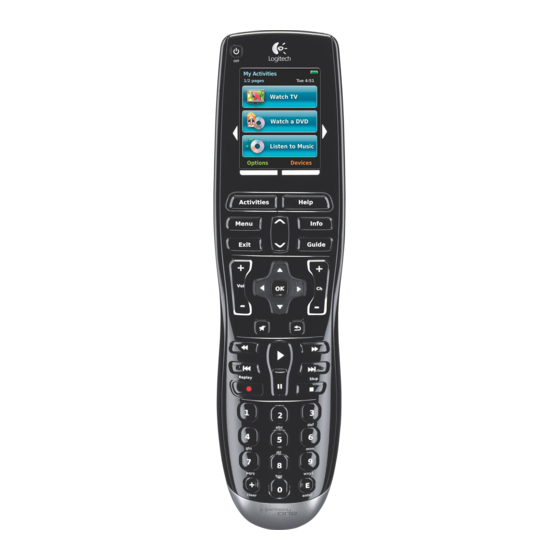

Harmony
Remote Repair
Important! Before you begin working on your Harmony One, you must discharge any static electricity you
may be carrying around. Ideally, you should wear an anti-static wrist strap as you work. If you do not own
an anti-static device, at least touch a grounded appliance (the metal on the back of a computer tower works
well) before you begin working. The components inside the Harmony One are sensitive to static electricity so
it is very important to take these precautions!

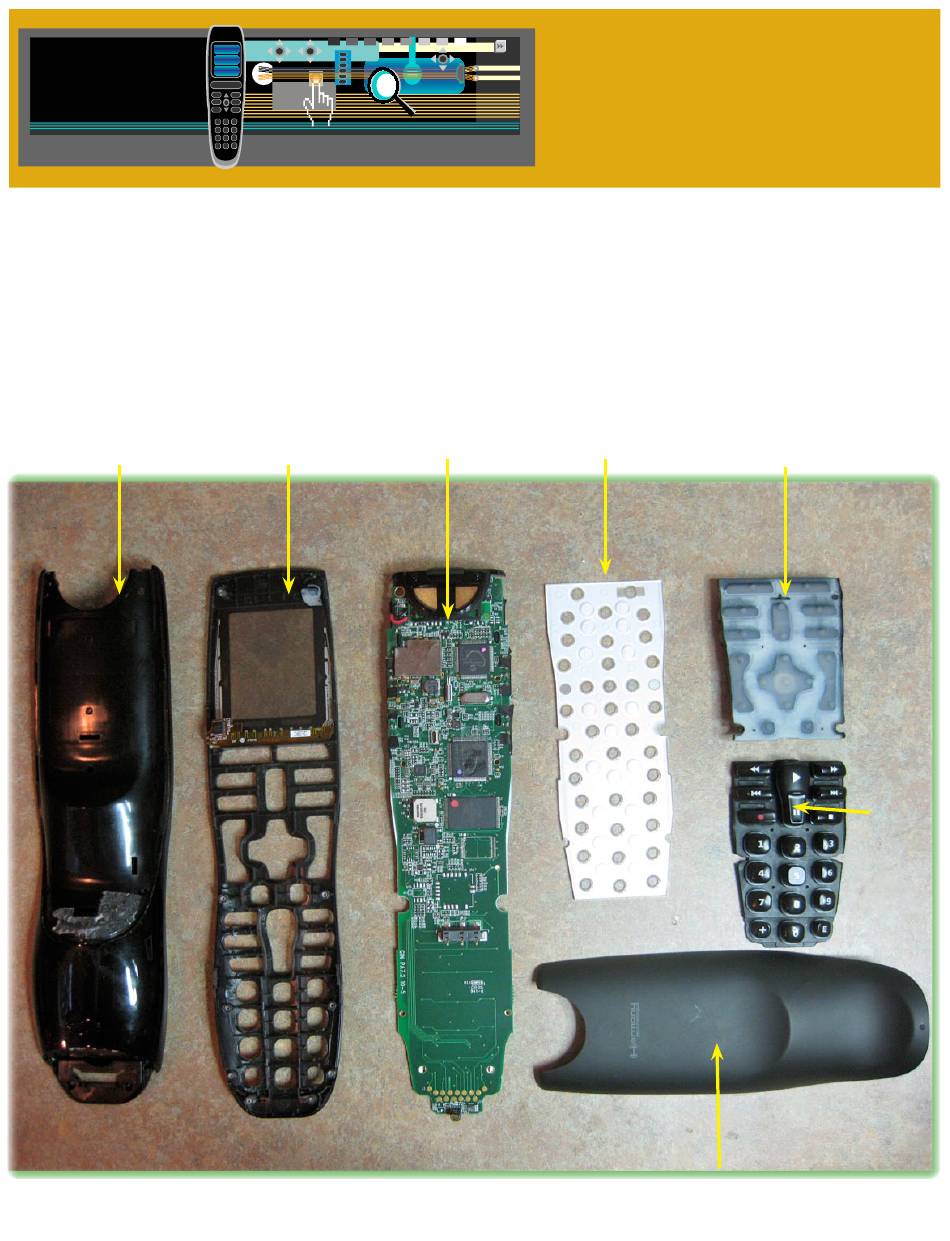

Before you get started, familiarize yourself with the parts pictured below.
Back Cover
Front Cover/ Touchscreen
harmonyremoterepair.com
Logic Board
How to install
your new Harmony One
Front Cover/Touch Screen
Button Guide
Button Pad (back side)
"Rubberized" Back Plate
Button
Pad
(front
side)
Page 1
Advertisement
Table of Contents
Related Manuals for Harmony One
Summary of Contents for Harmony One
- Page 1 (the metal on the back of a computer tower works well) before you begin working. The components inside the Harmony One are sensitive to static electricity so it is very important to take these precautions! Before you get started, familiarize yourself with the parts pictured below.
- Page 2 To remove the sticker, use an x-acto blade or razor to get under- neath one of the corners and peel it up gently. Once you get it started, you can use tweezers or small pliers to peel it off.
- Page 3 When you are done, the back cover of the Harmony One can be set aside and you are left with the front cover touch screen and logic board. Page 3...
- Page 4 Either way, all these components simply go back together and sit on top of one another – no screws, glue, etc. If the plastic button guide sticks to the logic board when it comes out,or if it stays on top of the button pad, either way is fine.
- Page 5 Reassembly Procedure 1. Take the button pads from the old face plate and move them onto the new one. Just drop the two pads right in and pat them down, making sure that they are fully inserted. Also make sure that the on/ off button is oriented the correct way.
- Page 6 5. With the logic board face up, take the back cover plate and align it with the board. You can verify alignment by seeing that the screw hole at the top left of the back cover is directly over the mount- ing post at the top of the logic board.
- Page 7 7. Replace the three screws that firmly attach the back cover to the logic board. Then, you are ready to reinstall the ‘rubberized’ back piece. This piece just snaps back in. Align the piece with the back of the remote and press firmly at the top. Move to the middle and press again.
