- Page 1 sales@artisantg.com artisantg.com (217) 352-9330 | Click HERE Find the Thermo / Lab-Line / Barnstead 4628 at our website:...
- Page 2 2/00 OPERATION MANUAL MANUAL NO. 056-986-00 REV. NO. E LAB-LINE ® THE FORCE DIGITAL BENCH TOP INCUBATED SHAKERS MODELS NOs. 4628, 4628-1, 4628-1CE, 4628-5JPN ACCESSORIES: CC: COOLING COIL (FACTORY INSTALLED) GM: GASSING MANIFOLD (FACTROY INSTALLED) 4628-40: LIGHT BANK (120V, 60 Hz) 4628-41: LIGHT BANK (240V, 50) DESIGNERS...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION TITLE Introduction Safe Operation Description Specifications Features Installation Operation Maintenance Replacement Parts Warranty Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 4: Introduction
SECTION 1 INTRODUCTION THANK YOU for selecting Lab-Line Instruments for your equipment needs. For maximum value and ease of start-up, PLEASE PROCEED AS FOLLOWS: Inspect the carton and contents for shipping damage. Notify the carrier immediately if damage is found. Use the Accessory Checklist when unpacking to verify that the complete unit has been received. -
Page 5: Safe Operation
SECTION 2 SAFE OPERATION BE ADVISED: THE INSTRUCTIONS ON THIS AND THE FOLLOWING PAGE ARE PROVIDED TO HELP USERS OPERATE THE UNIT SAFELY. FAILURE TO OBSERVE THE PRECAUTIONS COULD CAUSE SEVERE PERSONAL INJURY. READ OPERATION MANUAL BEFORE USING EQUIPMENT—FAMILIARIZE YOURSELF WITH CONTROLS AND ACCESSORIES. WHEN OPERATING THIS EQUIPMENT, ALWAYS WEAR PROTECTIVE CLOTHING, GLASSES AND OTHER ACCESSORIES AS SPECIFIED BY THE SAFETY REGULATIONS OF YOUR FACILITY. - Page 6 DO NOT USE EQUIPMENT FOR OTHER THAN ITS INTENDED PURPOSE. USE ONLY THE ACCESSORIES AND ATTACHMENTS THAT ARE SHIPPED WITH THE EQUIPMENT OR ARE SPECIFIED FOR IT. SUBSTITUTING OTHER ATTACHMENTS OR ACCESSORIES CAN PRODUCE HAZARDS OR MAKE THE UNIT INOPERATIVE. DO NOT RUN EQUIPMENT WITH AN UNBALANCED LOAD.
-
Page 7: Description

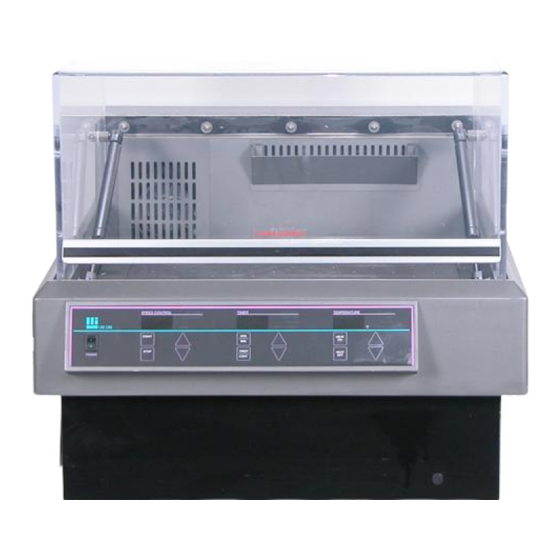

SECTION 3 DESCRIPTION The Force Digital Bench Top Incubated Shaker combines microprocessor- based temperature control and timing with variable shaking speed in a controlled environment chamber. The unit is designed for growing and maintaining cultures and microorganisms in ambient air or inert gas environments and is ideal for cell, tissue and bacterial culture studies. -
Page 8: Specifications
SPECIFICATIONS ELECTRICAL: Model 4628: 120 VAC, 50/60 Hz, 600 Watts Model 4628-1(CE): 240 VAC, 50/60 Hz, 600 Watts Model 4628-5JPN: 100 VAC, 50/60 Hz, 1200 Watts SHAKER MOTION: ¾-inch (2 cm) rotating motion. SHAKER SPEED: 15 to 500 rpm; LED displayed. Maximum safe speed for a load may be less than 500 rpm. -
Page 9: Features
FEATURES CONTROL PANEL: SPEED CONTROL TIMER TEMPERATURE ºC START HEAT STOP TIMER HEAT POWER CONT. POWER SWITCH: A 2-position switch turns power ON to the entire unit. SPEED CONTROL MODULE: Allows user to start and stop shaking action, as well as set the shaking speed in RPM which is displayed on an LED. - Page 10 SAFETY THERMOSTAT: This hydraulic thermostat is a secondary back-up system to protect specimens from excessive heating in the unlikely event of microprocessor failure. It should be set slightly higher than the setpoint temperature. If the temperature should ever reach the setpoint +2ºC, a microprocessor safety will open a relay link to the heaters and shut them off, the hi-limit legend is displayed and beeper alarm sounds.
-
Page 11: Installation
INSTALLATION SHIPPING CARTON: This should be inspected upon delivery. When received, carefully examine for any shipping damage before unpacking. If damage is discovered, the delivering carrier should both specify and sign for the damage on your copy of the delivery receipt. Open the carton carefully making certain that all parts are accounted for before packaging materials are discarded—after unpacking, if damage is found promptly report it to the carrier and request a damage inspection promptly. - Page 12 OPTIONAL COOLING COIL: Connect 3/8" (9.5mm) ID tubing to the ports marked "IN", "OUT" and "DRAIN". Run tubing from the "IN" port to the coolant circulation and from the "OUT" port to the coolant reservoir. Condensation from the incubator chamber will drain from the port marked "DRAIN.”...
-
Page 13: Operation
SECTION 7 OPERATION BE ADVISED: DANGER: DO NOT USE IN THE PRESENCE OF FLAMMABLE OR COMBUST- IBLE MATERIALS OR EXPLOSIVE GASES; DO NOT USE IN THE PRESENCE OF PRESSURIZED OR SEALED CONTAINERS—FIRE OR EXPLOSION MAY RESULT CAUSING DEATH OR SEVERE INJURY. Using a small flat-blade screwdriver, turn safety thermostat (located in the lower right hand corner of the front of the unit—remove small plastic button access) to the extreme clockwise position before connecting unit to power... - Page 14 OPERATION: (Con’t) TIMER: (Con’t) Conversely, if the original selection is 1.5 minutes and 0.5 minutes have elapsed when a new timing interval of 1.0 minutes is entered, the timer will subtract the 0.5 minutes already elapsed and show 0.5 minutes as remaining. NOTE: IF THE ACCUMULATED TIME REACHES 99.9, THE SHAKER WILL CONTINUE TO SHAKE AND THE TIMER DISPLAY REMAINS AT 99.9 NOTE: THE SHAKER DOES NOT OPERATE IF THE TIMER IS SET AT 00.0.
- Page 15 OPERATION: (Con’t) AC POWER LOSS: The operating microprocessor possesses a non-volatile memory. Upon resumption or recovery from an AC power loss, the following will be noted: All readouts will flash until any key is pressed. If unit was shaking at the time of power failure, it will resume operation at the speed and timer settings that were entered at the time that AC power failed.
- Page 16 OPERATION: (Con’t) USING THE OPTIONAL PORTABLE LIGHT BANK: Load the shaker platform and set the temperature before placing the light bank over the unit. When the chamber has reached the proper temperature and the shaking speed is at the desired level, place the light bank over the chamber. Turn on the switch to light the light bank.
- Page 17 OPERATION: (Con’t) TEMPERATURE CALIBRATION: (Con’t) To access the temperature calibration mode, use the following procedure: Press heat on button and, while continuing to hold, press and release the heat off button. Now, release the heat on button. The decimal point should now be flashing indicating that the unit is in the temperature calibration mode.
-
Page 18: Maintenance
SECTION 8 MAINTENANCE BE ADVISED: MAKE NO ATTEMPT TO SERVICE OR REPAIR A LAB-LINE PRODUCT UNDER WARRANTY BEFORE CONSULTING YOUR LAB-LINE DEALER. AFTER THE WARRANTY PERIOD, SUCH CONSULTATION IS STILL ADVISED, ESPECIALLY WHEN THE REPAIR MAY BE TECHNICALLY SOPHISTICATED OR DIFFICULT. IF ASSISTANCE IS NEEDED BEYOND WHAT THE DISTRIBUTOR CAN PROVIDE, PLEASE CALL THE LAB-LINE CUSTOMER RELATIONS DEPARTMENT AT (319) 556-2241 OR... -
Page 19: Replacement Parts
SECTION 9 REPLACEMENT PARTS DESCRIPTION PART NUMBER Bearing (for Upper Bearing Housing) 140-130-00 Bearing (for Shaking Mechanism, 2 each reqd per crank assembly: 6 reqd per unit) 140-236-00 Blower Motor 370-263-00 Blo-Wheel 160-141-00 Capacitor 310-152-00 Circuit Breaker, 10 Amp 330-119-00 Circuit Breaker, 5 Amp (240V only) 330-118-00 Circuit Breaker, 0.7 Amp... - Page 20 REPLACEMENT PARTS: (Con’t) DESCRIPTION PART NUMBER Wiring Schematic, 4626, 120V 228-296-00 Wiring Schematic, 4628-1, 240V 228-297-00 Wiring Schematic, 4628-1CE, 240V 228-799-00 Cordset 470-132-00 470-132-00 Fixture 360-268-00 360-268-00 Fluorescent Lamp (also may be bought locally) 360-264-00 360-264-00 Switch 440-359-00 440-359-00 OPTIONAL LIGHT BANK: 120 V: 4628-40 240 V:...
-
Page 21: Warranty
WARRANTY Page 1 of 2 LAB-LINE INSTRUMENTS, INC. (“Lab-Line”) warrants that the product manufactured by Lab-Line shall be free of defects in materials and workmanship for a period of time defined on the following page from the first to occur of (i) the date the product is sold by Lab-Line or (ii) the date the product is purchased by the original retail customer (the “Commencement Date”). - Page 22 WARRANTY Page 2 of 2 12 MONTH PARTS WARRANTY: All Environmental Chambers Low Temperature B. O. D. Incubators Animal Study Chamber Controlled Environment Centers Biological Work Station Refrigerators, Freezers Chromatography Refrigerators (5 year parts warranty on compressor only) Large Capacity Refrigerators and Freezers (5 year parts warranty on compressor only) 24 MONTH PARTS WARRANTY: Frame Clamps, Frame Sets, Lab Jacks...
- Page 23 FIRST IN INSTRUMENTS SERVICING SCIENCE, INDUSTRY, RESEARCH AND EDUCATION SINCE 1908. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 24 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 25 ACCESSORY CHECKLIST The following loose parts and accessories are packed with this unit. Before discarding any packing materials, please be sure that nothing has been overlooked. MODEL NO. 4628, 4628-1, 4628-1CE, 4628-5JPN CHECKED BY: __________ DATE __________ PACKED BY __________ CHECKED ITEM PART NUMBER...
