Summary of Contents for Agilitas BDAAU200

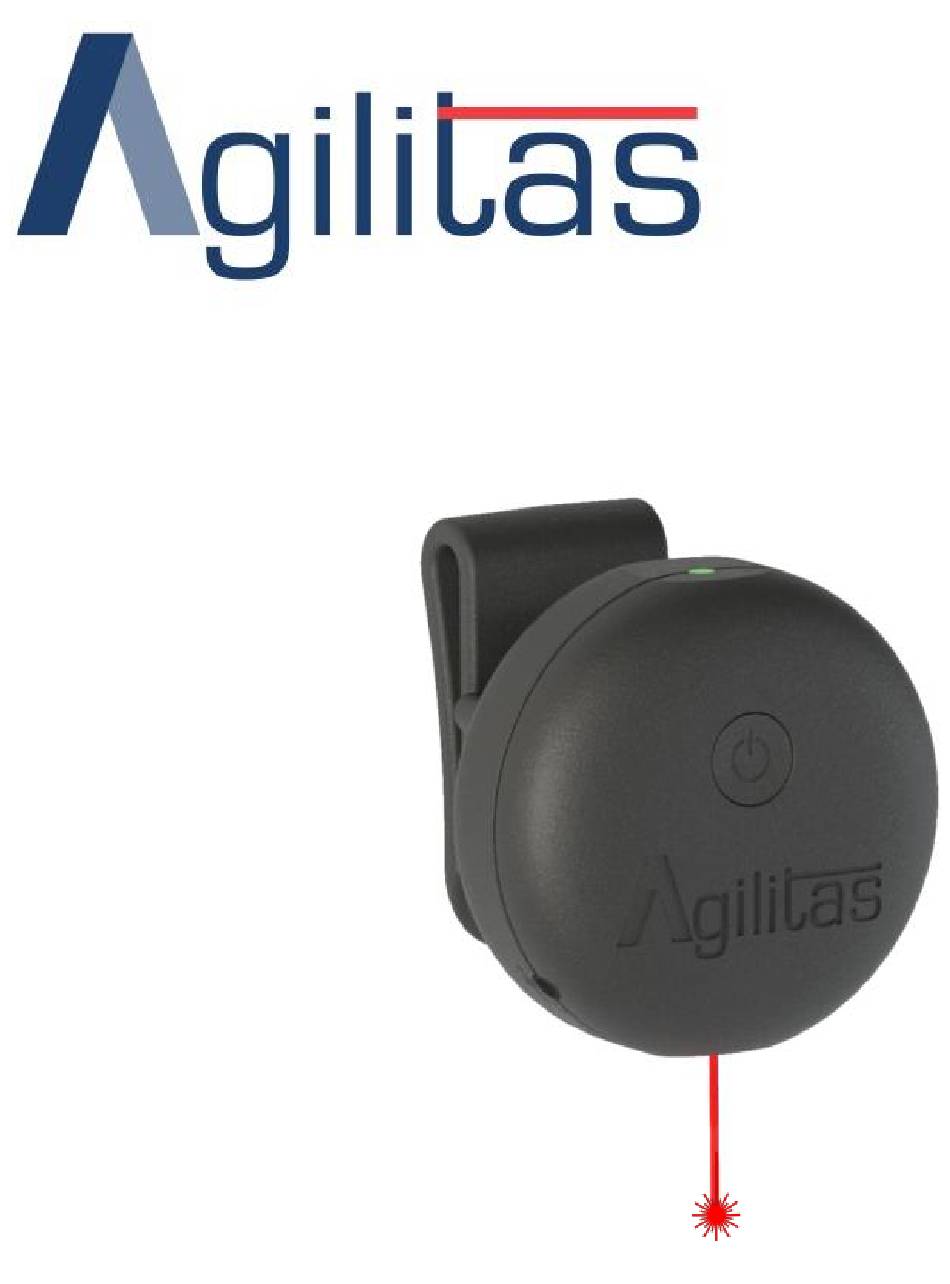

- Page 1 PERSONAL CUEING DEVICE MODEL NO. BDAAU200 User Guide www.agilitas.com.au...
-
Page 2: Table Of Contents
CONTENTS Contents Safety Information Device Information Features Powering On/Off Setup Operation Sleep Mode Sensitivity Adjustment Charging Warranty Policy Compliance Statement Enquiries Manufacturer PAGE 2 – INSTRUCTION MANUAL – BDAAU200... -
Page 3: Safety Information
Caution – Use of controls, adjustments or procedures other than those specified in this manual may result in hazardous radiation exposure. There are no user-serviceable parts inside Agilitas. To reduce the risk of electric shock, do not open the product. - Page 4 Do not insert objects or spill liquid into this product through openings as this could result in the risk of fire or electric shock. Only use attachments and accessories specified by the manufacturer. PAGE 4 – INSTRUCTION MANUAL – BDAAU200...
-
Page 5: Device Information

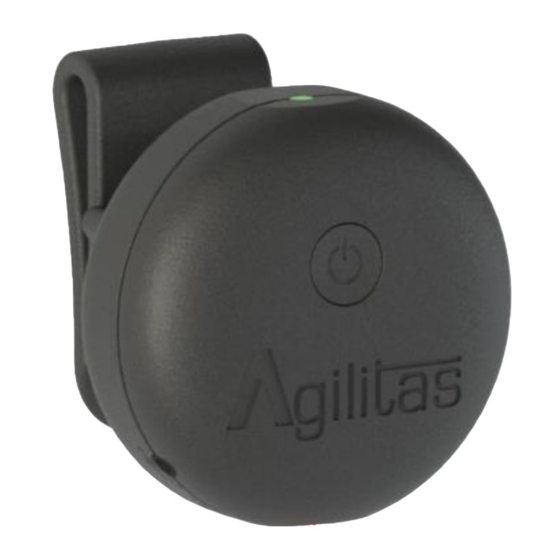

DEVICE INFORMATION Agilitas is a personal cueing device designed for use by persons who experience Freezing of Gait or similar movement disorders. The device clips to your belt or waistband and monitors your movements. When it detects a Freezing episode, it... -
Page 6: Features
FEATURES Indicator light Belt clip Tap here Locking nut Power button Charging port Laser aperture DC/USB cable PAGE 6 – INSTRUCTION MANUAL – BDAAU200... -
Page 7: Powering On/Off
1 second, and then flash intermittently. To turn off Agilitas, press and hold the power button for 2 seconds. The indicator light will turn red and Agilitas will turn off. INSTRUCTION MANUAL – BDAAU200 – PAGE 7... -
Page 8: Setup
SETUP Use the belt clip to attach Agilitas to your belt or waistband. It is recommended that it be placed adjacent to your hip on either side as shown below. Tap the side of Agilitas to temporarily activate the laser cue. The laser cue is a... - Page 9 Adjust the position and orientation of Agilitas so that the laser cue appears on the ground 2 to 3 metres in front of you, or to your preference. The locking nut can be used to tighten or loosen the swivel adjustment.
- Page 10 Repeat steps 2 and 3 until the laser cue is appropriately positioned. Your Agilitas is ready for use. PAGE 10 – INSTRUCTION MANUAL – BDAAU200...
-
Page 11: Operation
5 seconds after the Freeze has ceased. To temporarily turn on the laser, tap once on the side of Agilitas with a single sharp motion using the tip of the finger. After 5 seconds, Agilitas will return to automatic mode. This... - Page 12 ‘Click’ the power button again to change back to automatic mode. PAGE 12 – INSTRUCTION MANUAL – BDAAU200...
-
Page 13: Sleep Mode
SLEEP MODE Agilitas has an in built sleep mode that will switch off the indicator light and laser cue after more than 30 seconds of inactivity. Once you begin moving again or if you single tap the side of the device, the laser cue and indicator light will come back on. -
Page 14: Sensitivity Adjustment
SENSITIVITY ADJUSTMENT As gait differs between people, Agilitas allows you to change the sensitivity at which it activates automatic cues. There are 4 different sensitivity levels available. By default, your Agilitas is shipped with the most sensitive setting active (level 4). To... - Page 15 When you release the button, both the green indicator light and the laser cue will rapidly flash between 1 and 4 times. The number of flashes indicates the current sensitivity level. INSTRUCTION MANUAL – BDAAU200 – PAGE 15...
- Page 16 Level 1 (1 flash) is the least sensitive and level 4 (4 flashes) is the most sensitive. Repeat step 3 until the desired sensitivity level is selected. PAGE 16 – INSTRUCTION MANUAL – BDAAU200...
- Page 17 To complete the sensitivity adjustment, press the power button for 2 seconds until the indicator light turns red and the Agilitas turns off. The new sensitivity level will be active once the device is turned on again. INSTRUCTION MANUAL – BDAAU200...
-
Page 18: Charging
Agilitas battery power is low. Battery life depends on usage and the age of the battery. To recharge Agilitas, first plug the included cable into the charging port. PAGE 18 – INSTRUCTION MANUAL – BDAAU200... - Page 19 A full charge will take approximately 4 to 5 hours. Agilitas can be charged while on or off although it is recommended that it be turned off before charging as the device will charge faster. It is recommended that your Agilitas be...
- Page 20 HINT: Inbuilt over-charge protection allows Agilitas to be left on charge overnight even if full charge has been achieved. PAGE 20 – INSTRUCTION MANUAL – BDAAU200...
-
Page 21: Warranty Policy
+617 3853 5257 or by email to info@agilitas.com.au. Bright Devices warrants your new product to be free from defects in materials and manufacture for a period of 6 months from the date of purchase, INSTRUCTION MANUAL – BDAAU200 – PAGE 21... - Page 22 Please retain your receipt as proof of purchase and contact Bright Devices if you request assistance with your product. All claims require the item returned to the manufacturer, Bright Devices. All freight costs and PAGE 22 – INSTRUCTION MANUAL – BDAAU200...
- Page 23 Bright Devices. 4. Failure to operate or maintain the product in accordance with the user manual's specifications and recommendations. 5. Lack of effectiveness of the product to assist or ease an individual’s gait irregularities. INSTRUCTION MANUAL – BDAAU200 – PAGE 23...
-
Page 24: Compliance Statement
All equipment is warranted for domestic use only. COMPLIANCE STATEMENT Bright Devices Pty Ltd confirms that Agilitas conforms to the relevant guidelines of the European Union. For a copy of the EC Declaration of Conformity, please contact Bright Devices Pty Ltd. -
Page 25: Enquiries
• Consult the dealer or an experienced radio/TV technician for assistance. ENQUIRIES For operational, technical, repair or service queries, please see FAQ (Frequently Asked Questions) at www.agilitas.com.au or contact Bright Devices Pty Ltd. INSTRUCTION MANUAL – BDAAU200 – PAGE 25... -
Page 26: Manufacturer
+ 61 7 3853 5258 Email info@agilitas.com.au Website www.agilitas.com.au 50 157 981 229 ACMA Supplier Code No. N30661 N30661 ©2020 Bright Devices Group Pty Ltd Agilitas is a Trademark of Bright Devices Group Pty Ltd US Patent No. 10,251,611, Aus Patent No. AU2012267220...
