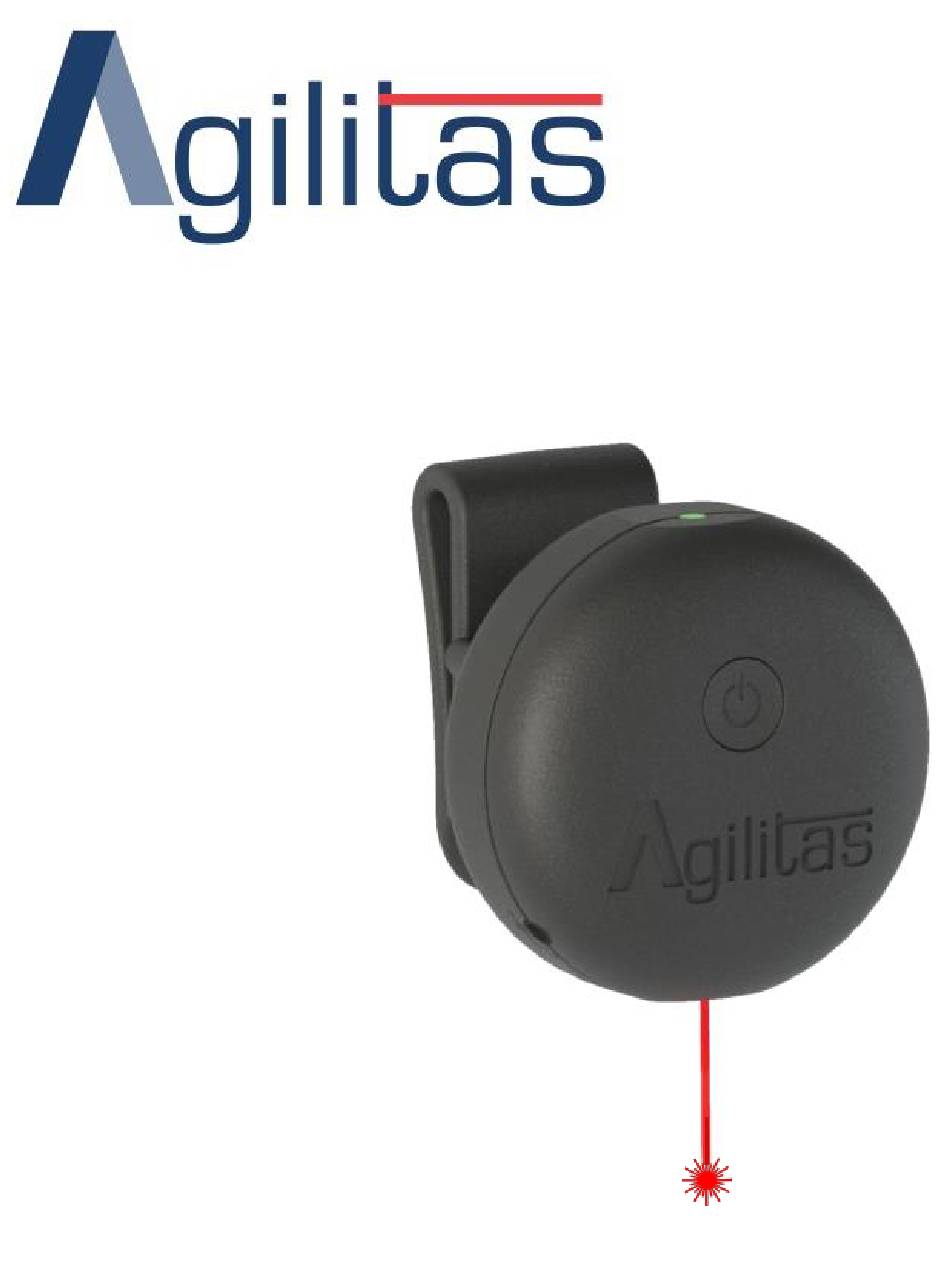

- Page 1 PERSONAL CUEING DEVICE MODEL NO. BDAAU100 Quick Start Guide www.agilitas.com.au...
-
Page 2: Table Of Contents
CONTENTS Device Information Features Powering On/Off Setup Operation Sensitivity Adjustment 10 Charging Enquiries... -
Page 3: Device Information
DEVICE INFORMATION Agilitas is a personal cueing device designed for use by persons who experience Freezing of Gait or similar movement disorders. The device clips to your belt or waistband and monitors your movements. When it detects a Freezing episode, it... -
Page 4: Features
FEATURES Indicator light Belt clip Tap here Locking nut Power button Charging port Laser aperture DC/USB cable... -
Page 5: Powering On/Off
POWERING ON/OFF To turn Agilitas on press and hold the power button for 1 to 2 seconds. The indicator light will turn green for 1 second, and then flash intermittently. To turn off Agilitas, press and hold the power button for 2 seconds. -
Page 6: Setup
SETUP Use the belt clip to attach Agilitas to your belt or waistband. It is recommended that it be placed adjacent to your hip on either side as shown below. Tap the side of Agilitas to temporarily activate the laser cue. The laser cue is a... - Page 7 Adjust the position and orientation of Agilitas so that the laser cue appears on the ground 2 to 3 metres in front of you, or to your preference. The locking nut can be used to tighten or loosen the swivel adjustment.
-
Page 8: Operation
3 seconds after the Freeze has ceased. To temporarily turn on the laser, tap once on the side of Agilitas with a single sharp motion using the tip of the finger. After 3 seconds, Agilitas will return to automatic mode. This... - Page 9 remain illuminated. This mode is excellent for providing a continuous cue in obstacle-filled areas such as found in the home. Double tap again to change back to automatic mode. HINT: The double tap must be done quite quickly. Check the green indicator light to see if you have double-tapped correctly –...
-
Page 10: Sensitivity Adjustment
SENSITIVITY ADJUSTMENT As gait differs between people, Agilitas allows you to change the sensitivity at which it activates automatic cues. There are 6 different sensitivity levels available. By default, your Agilitas is shipped with the most sensitive setting active (level 6). To... - Page 11 When Agilitas is off, the indicator light will be off. Now press and hold the power button for 5 seconds. The green indicator light will turn on while you depress the button. When you release the button, both the green indicator light...
- Page 12 To cycle through the sensitivity levels, double tap on the side of Agilitas. The next sensitivity level will be activated, and the number of rapid flashes by the green indicator light and laser cue will change. Level 1 (1 flash) is the least sensitive and level 6 (6 flashes) is the most sensitive.
- Page 13 Repeat step 3 until the desired sensitivity level is selected. To complete the sensitivity adjustment, press the power button for 2 seconds until the indicator light turns red and the Agilitas turns off. The new sensitivity level will be active once the device is turned on again.
-
Page 14: Charging
CHARGING The indicator light will turn orange when the Agilitas battery power is low. Battery life depends on usage and the age of the battery. To recharge Agilitas, first plug the included cable into the charging port on the device. - Page 15 Connect the other end to the supplied Mains Voltage charger. Alternatively use a powered USB port, for example on a computer or mobile phone charger. While the device is charging the indicator light will be red. If the indicator light fails to activate when the charging cable is plugged in, please...
- Page 16 It is recommended that your Agilitas be recharged each night after daily use, to ensure that it is fully charged and to maximise battery life. HINT: Inbuilt over-charge protection allows Agilitas to be left on charge overnight even if full charge has been achieved.
-
Page 17: Enquiries
ENQUIRIES For operational, technical, repair or service queries, please see FAQ (Frequently Asked Questions) at www.agilitas.com.au or contact Bright Devices Pty Ltd. Bright Devices Pty Ltd Brisbane Technology Park 1 Clunies Ross Court Eight Mile Plains 4113 Queensland, Australia Telephone...
