YPR-50

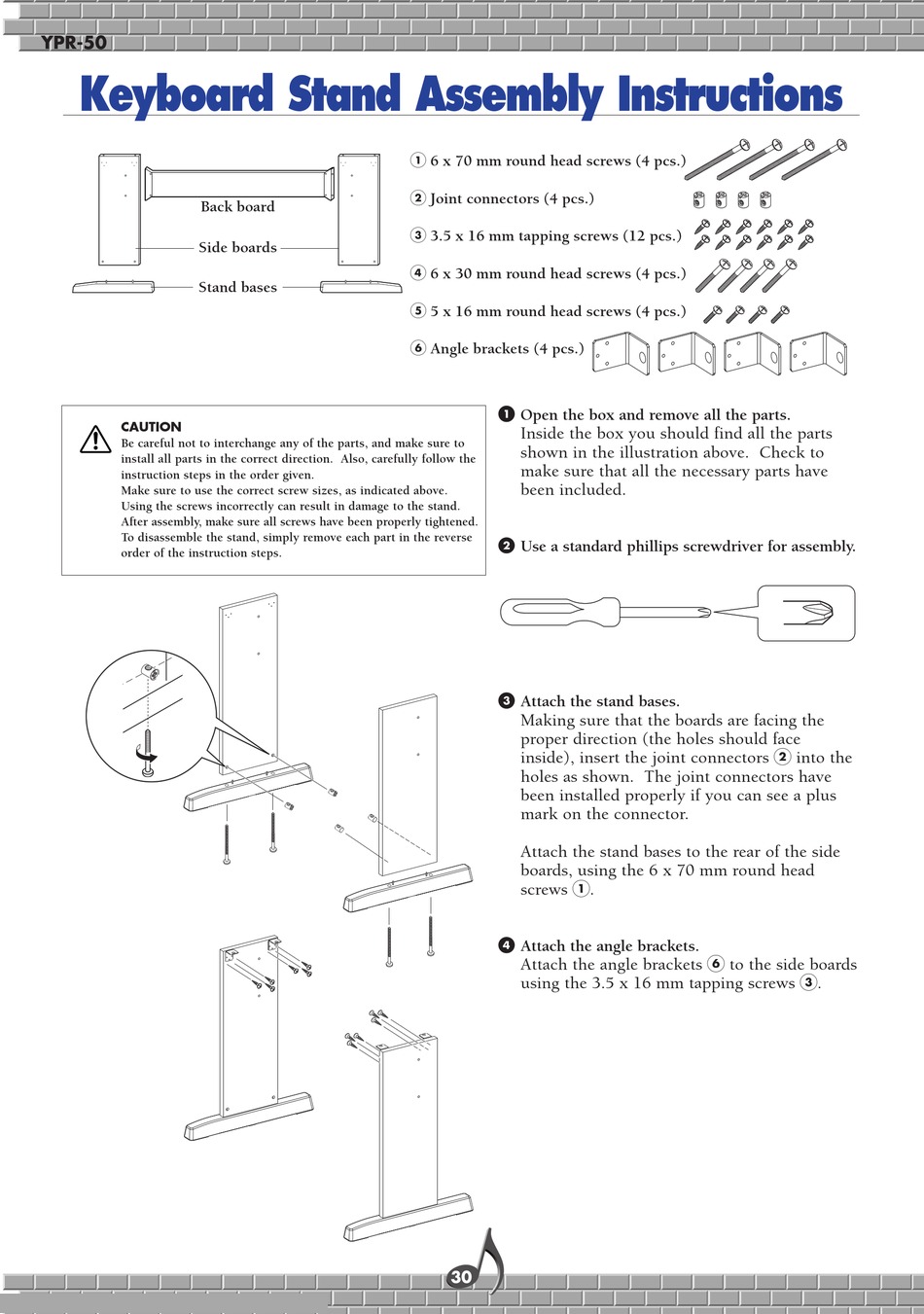

Keyboard Stand Assembly Instructions

Back board
Side boards
Stand bases
CAUTION
Be careful not to interchange any of the parts, and make sure to
install all parts in the correct direction. Also, carefully follow the
instruction steps in the order given.
Make sure to use the correct screw sizes, as indicated above.
Using the screws incorrectly can result in damage to the stand.
After assembly, make sure all screws have been properly tightened.
To disassemble the stand, simply remove each part in the reverse
order of the instruction steps.
1 6 x 70 mm round head screws (4 pcs.)
2 Joint connectors (4 pcs.)
3 3.5 x 16 mm tapping screws (12 pcs.)
4 6 x 30 mm round head screws (4 pcs.)
5 5 x 16 mm round head screws (4 pcs.)
6 Angle brackets (4 pcs.)
1 Open the box and remove all the parts.
Inside the box you should find all the parts
shown in the illustration above. Check to
make sure that all the necessary parts have
been included.
2 Use a standard phillips screwdriver for assembly.
3 Attach the stand bases.
Making sure that the boards are facing the
proper direction (the holes should face
inside), insert the joint connectors 2 into the
holes as shown. The joint connectors have
been installed properly if you can see a plus
mark on the connector.
Attach the stand bases to the rear of the side
boards, using the 6 x 70 mm round head
screws 1.
4 Attach the angle brackets.
Attach the angle brackets 6 to the side boards
using the 3.5 x 16 mm tapping screws 3.
30
