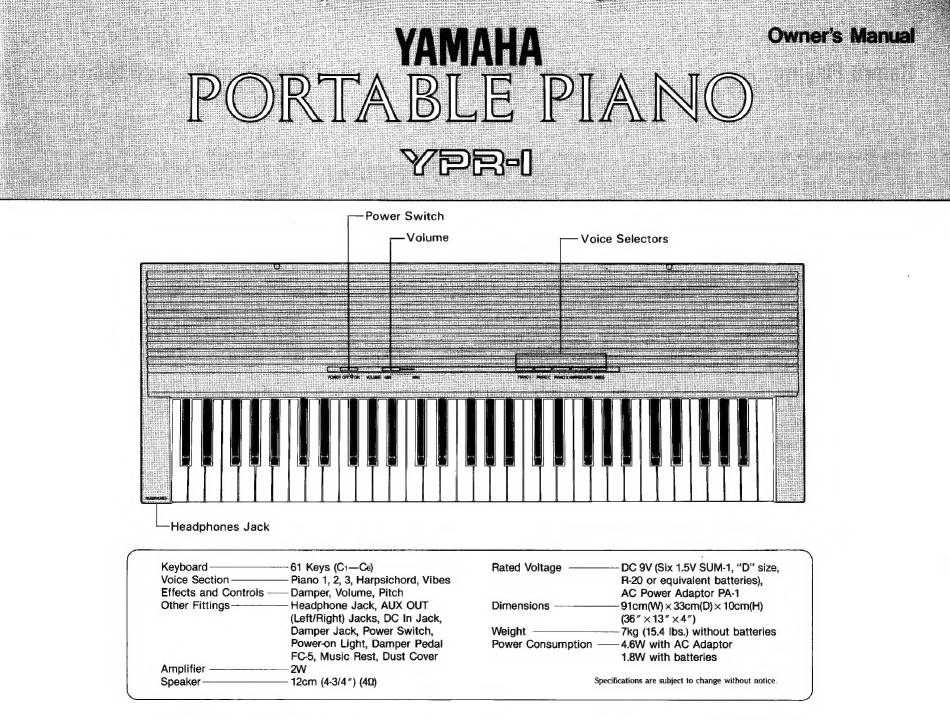

Yamaha YPR-1 Owner's Manual

Power Switch
Volume
Voice Selectors
Headphones Jack
ts
Keyboard ——————————61 Keys (C1—Ce)
Voice Section Piano 1, 2, 3, Harpsichord, Vibes
Effects and Controls —— Damper, Volume, Pitch
Other Fittings Headphone Jack, AUX OUT
(Left/Right) Jacks, DC In Jack,
Damper Jack, Power Switch,
Power-on Light, Damper Pedal
FC-5, Music Rest, Dust Cover
Amplifier ————————— 2W
Speaker ————————— 12cm (4-3/4") (40)
DC 9V (Six 1.5V SUM-1, "D" size,
R-20 or equivalent batteries),
AC Power Adaptor PA-1
Rated Voltage
Dimensions 91cm(W) x 33cm(D) x 10cm(H)
(36" x 13" x4")
Weight _—————————— 7kg (15.4 Ibs.) without batteries
Power Consumption ——-4.6W with AC Adaptor
1.8W with batteries
Specifications are subject to change without notice.
