Summary of Contents for Ametek Land VIRALERT 3

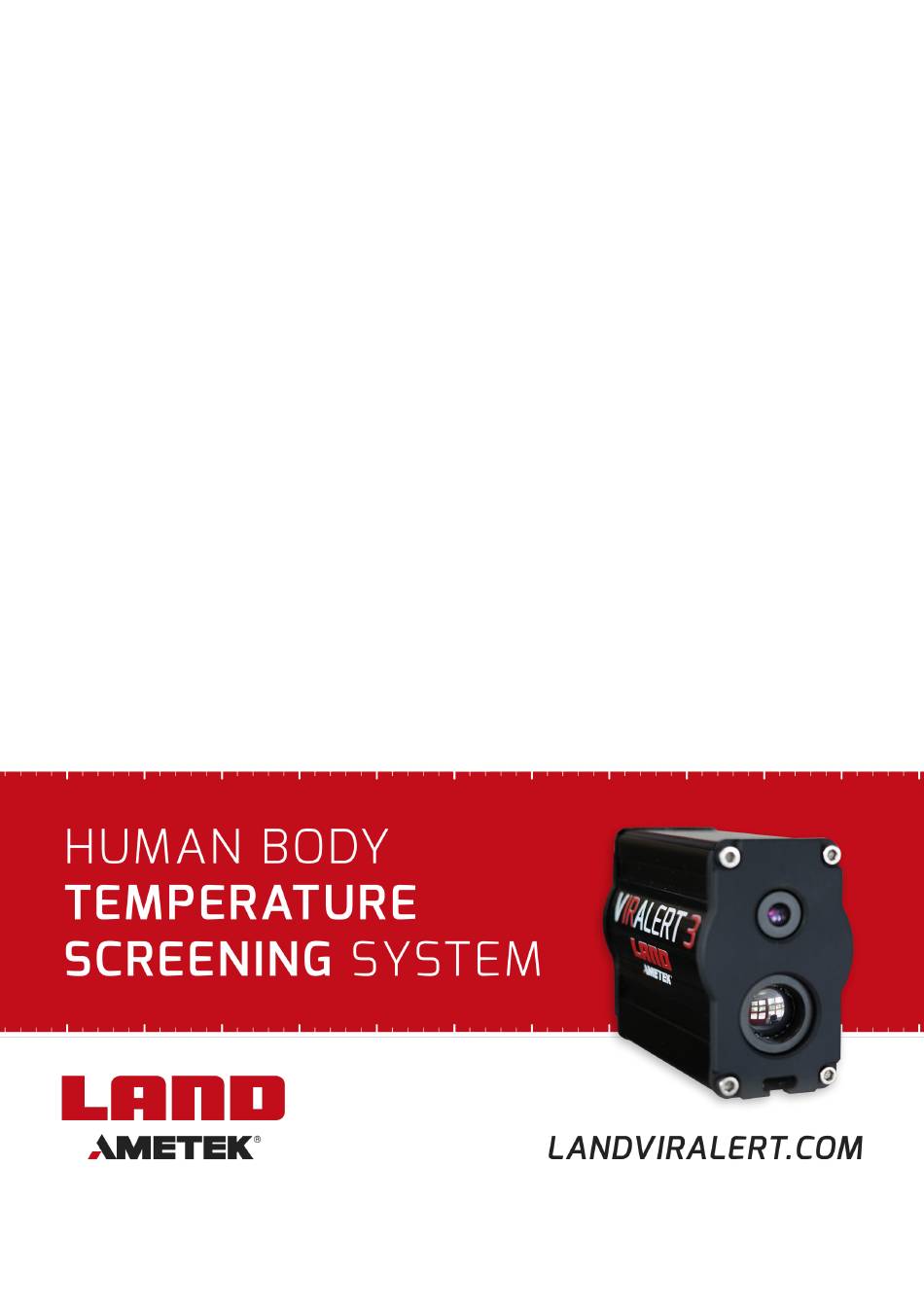

- Page 1 VIRALERT QUICK START GUIDE PUBLICATION N 814238 LANGUAGE: ENGLISH ISSUE: 1 DATE: 19 JUNE 2020...
- Page 2 Observe precautions for handling electrostatic discharge sensitive devices. Equipment Operation Use of this instrument in a manner not specified by AMETEK Land may be hazardous. Read and understand the user documentation supplied before installing and operating the equipment. The safety of any system incorporating this equipment is the responsibility of the assembler.
- Page 3 This manual is provided as an aid to owners of AMETEK Land’s products and contains information proprietary to AMETEK Land. This manual may not, in whole or part, be copied, or reproduced without the expressed written consent of AMETEK Land.
-
Page 4: Table Of Contents
VIRALERT HUMAN BODY TEMPERATURE SCREENING SYSTEM Contents Introduction About VIRALERT 3 What’s in the box? Optional Accessories System Overview System Setup Measurement Location System Connections Start the Software Network Adapter Settings Starting the Software Disclaimer QUICK START GUIDE... -
Page 5: Introduction
AMETEK Land VIRALERT 3 Human Body Temperature Screening System. 1.1 About VIRALERT 3 VIRALERT 3 screens people for elevated temperatures that could indicate fever. The system is intended for use at the entrance to business premises, hospitals, airports, schools, sporting and social gathering venues etc. -
Page 6: Optional Accessories
VIRALERT HUMAN BODY TEMPERATURE SCREENING SYSTEM 1.3 Optional Accessories Laptop PC running VIRALERT 3 software VIRALERT 3 software is available for download from www.landviralert.com Surface Mount Bracket Part Nº 814266 An adjustable mounting bracket that can be screwed to a wall, ceiling or any other flat surface. Fixings... -
Page 7: System Overview
HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT 2 SYSTEM OVERVIEW Measurement VIRALERT 3 Camera and Subject Blackbody Reference Source Camera Cable Laptop/PC running VIRALERT 3 Software Reference Source Power Cable Clamp Mount Bracket Fig. 2-1 VIRALERT 3 Typical System Overview QUICK START GUIDE... -
Page 8: System Setup
AMETEK Land (see Section 1.3). The Blackbody Reference Source requires a mains voltage supply. You will also need to provide power to the Laptop/PC running the VIRALERT 3 software. Once the system is installed and operating, use cable ties to secure the cables to suitable structures. - Page 9 HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT Laptop/PC Connections Connect the Laptop/PC to the mains power supply. Connect the two connectors on the other end of the power and signal cable to the Laptop/PC. The power (USB) connector on the cable looks like this.
-
Page 10: Start The Software
HUMAN BODY TEMPERATURE SCREENING SYSTEM 4 START THE SOFTWARE NOTE If you purchased a Laptop/PC from AMETEK Land with your VIRALERT 3 system, then the Network Adapter Settings will already be configured and the software installed on the computer. 4.1 Network Adapter Settings If you are using your own Laptop/PC, the correct Network Adapter Settings must be specified so that your PC can communicate with the VIRALERT 3 Camera. - Page 11 HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT The Status screen is displayed. See Fig. 4-2 below. Click on the Change adapter options link. Fig. 4-2 Status screen The Network Connections screen is displayed. See Fig. 4-3 below. Move your mouse cursor over the icon for your Network (Ethernet in the example below).
- Page 12 VIRALERT HUMAN BODY TEMPERATURE SCREENING SYSTEM Click to highlight the Internet Protocol Version 4 (TCP/IPv4) option and click the Properties button. Fig. 4-4 Network status search The Internet Protocol Version 4 (TCP/IPv4) Properties screen is displayed. See Fig. 4-5 below. Fig.
-
Page 13: Starting The Software
If you are using your own Laptop/PC, download and install the software from the AMETEK Land website. VIRALERT 3 software is available for download from www.landviralert.com. On the Laptop/PC, click on the VIRALERT 3 icon The software will start automatically in Measurement mode. - Page 14 Subjects with a high body temperature are indicated by a red screen, as shown in Fig. 4-2. Fig. 4-2 VIRALERT 3 Software Elevated Body Temperature display Access to the Settings menu, in which you can adjust the temperature alarm value, is password protected. The password is 0000.
-
Page 15: Disclaimer
VIRALERT systems are not intended, nor designed, to diagnose or detect medical conditions including, but not limited to, viruses or other illnesses. AMETEK Land thermal imaging products should only be used to detect variations of surface temperature. If elevated skin temperature is detected, the finding should be confirmed by other means, for example, an approved medical thermometer. - Page 16 For a full list of international offices, please visit our website www.ametek-land.com Copyright © 2020 LAND Instruments International. Continuous product development may make it necessary to change these details without notice. VIRALERT 3 System Quick Start Guide, Issue 1, 19 June 2020...
