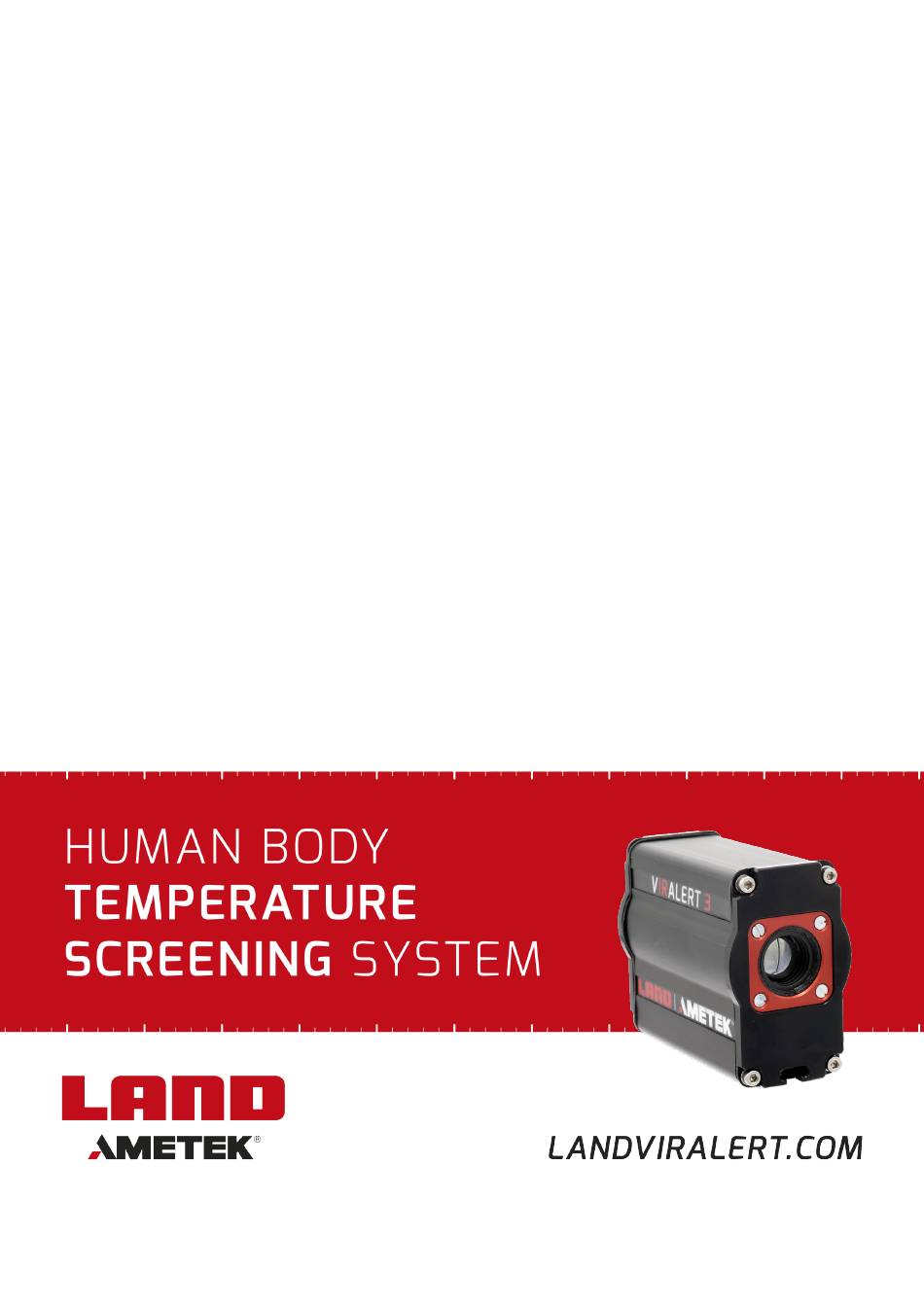

- Page 1 VIRALERT LITE QUICK START GUIDE PUBLICATION N 814337 LANGUAGE: ENGLISH ISSUE: 1 DATE: 30 JULY 2020...
- Page 2 Observe precautions for handling electrostatic discharge sensitive devices. Equipment Operation Use of this instrument in a manner not specified by AMETEK Land may be hazardous. Read and understand the user documentation supplied before installing and operating the equipment. The safety of any system incorporating this equipment is the responsibility of the assembler.
- Page 3 This manual is provided as an aid to owners of AMETEK Land’s products and contains information proprietary to AMETEK Land. This manual may not, in whole or part, be copied, or reproduced without the expressed written consent of AMETEK Land.
-
Page 4: Table Of Contents
VIRALERT LITE HUMAN BODY TEMPERATURE SCREENING SYSTEM Contents Introduction About VIRALERT 3 LITE What’s in the box? Optional Accessories System Overview System Setup Measurement Location System Connections Start the Software Network Adapter Settings Starting the Software Specification Calibration & Maintenance... -
Page 5: Introduction
WARNING VIRALERT 3 LITE is a screening tool. It has not been cleared or approved by the FDA or any other regulatory agency. It should not be relied on solely or primarily to diagnose or exclude a diagnosis of COVID-19 or any other disease. -
Page 6: Optional Accessories
LITE HUMAN BODY TEMPERATURE SCREENING SYSTEM 1.3 Optional Accessories Laptop PC running VIRALERT 3 LITE software VIRALERT 3 LITE software is available for download from www.landviralert.com Surface Mount Bracket Part Nº 814266 An adjustable mounting bracket that can be screwed to a wall, ceiling or any other suitable flat surface. -
Page 7: System Overview
2 SYSTEM OVERVIEW Measurement VIRALERT 3 LITE Imager and Subject Blackbody Reference Source Imager Cable Laptop/PC running VIRALERT 3 LITE Software Power Cable Clamp Mount Bracket 1 m / 3 ft Fig. 2-1 VIRALERT 3 LITE Typical System Overview QUICK START GUIDE... -
Page 8: System Setup
Choose a location near to the entrance of the area you want to protect. There must be space to install the VIRALERT 3 LITE so that the Measurement Subject can face the system from a distance of 1 m / 3 ft. - Page 9 HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT LITE Imager Connection Connect the cylindrical connector on the power and signal cable to the Imager Laptop/PC Connections Connect the Laptop/PC to the mains power supply. Connect the two connectors on the other end of the power and signal cable to the Laptop/PC.
-
Page 10: Start The Software
HUMAN BODY TEMPERATURE SCREENING SYSTEM 4 START THE SOFTWARE NOTE If you purchased a Laptop/PC from AMETEK Land with your VIRALERT 3 LITE system, then the Network Adapter Settings will already be configured and the software installed on the computer. - Page 11 HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT LITE Click on the Change adapter options link (See Fig. 4-2). Fig. 4-2 Status screen The Network Connections screen is displayed. See Fig. 4-3 below. Move your mouse cursor over the icon for your Network (Ethernet in the example below).
- Page 12 VIRALERT LITE HUMAN BODY TEMPERATURE SCREENING SYSTEM Click to highlight the Internet Protocol Version 4 (TCP/IPv4) option and click the Properties button. Fig. 4-4 Network status search The Internet Protocol Version 4 (TCP/IPv4) Properties screen is displayed. See Fig. 4-5 below. Fig.
-
Page 13: Starting The Software
• Windows 10* If your Laptop/PC is running Windows 10 in S mode, then VIRALERT 3 LITE will not run on this machine. S mode runs only applications from the Microsoft Store, and requires Microsoft Edge for Internet browsing. To run VIRALERT 3 LITE on your machine, it should be switched to standard Windows 10 mode. - Page 14 The default temperature unit is Celsius, but this can be changed to Fahrenheit. Refer to Section 5 of the VIRALERT 3 LITE User Guide for further information. During the measurement process, the screen background will turn yellow Follow the instructions displayed on the software screen.
- Page 15 The factory default value is 38 °C (100.4 °F) For more information on the Settings menu and other features of the software, refer to the Section 5 of the VIRALERT 3 LITE User Guide. QUICK START GUIDE...
-
Page 16: Specification
VIRALERT LITE HUMAN BODY TEMPERATURE SCREENING SYSTEM 5 SPECIFICATION Operating temperature 10 to 50 °C / 50 to 122 °F Measurement Range 30 to 45 °C / 86 to 113 °F Measurement uncertainty ±0.5 °C / 0.9 °F Combined stability over temperature ±0.2 °C / 0.3 °F range and drift over 12 months Safety Compliance... -
Page 17: Calibration & Maintenance
Contact your local AMETEK LAND service centre for more information. The VIRALERT 3 LITE System is designed to be largely maintenance-free, but it is recommended to check all system connections periodically. -
Page 18: Disclaimer
Public health officials should determine the significance of any fever or elevated temperature based on the skin temperature measurement using VIRALERT 3 LITE. Images shown in this document are for illustrative purposes only. QUICK START GUIDE... - Page 19 HUMAN BODY TEMPERATURE SCREENING SYSTEM VIRALERT LITE QUICK START GUIDE...
- Page 20 AMETEK Land’s global service network provides unparalleled after-sales services to ensure you get the best performance and value from your AMETEK Land products. Our dedicated service centre teams and on-site engineers are trained to deliver the highest standard of commissioning, maintenance and after- sales support.
