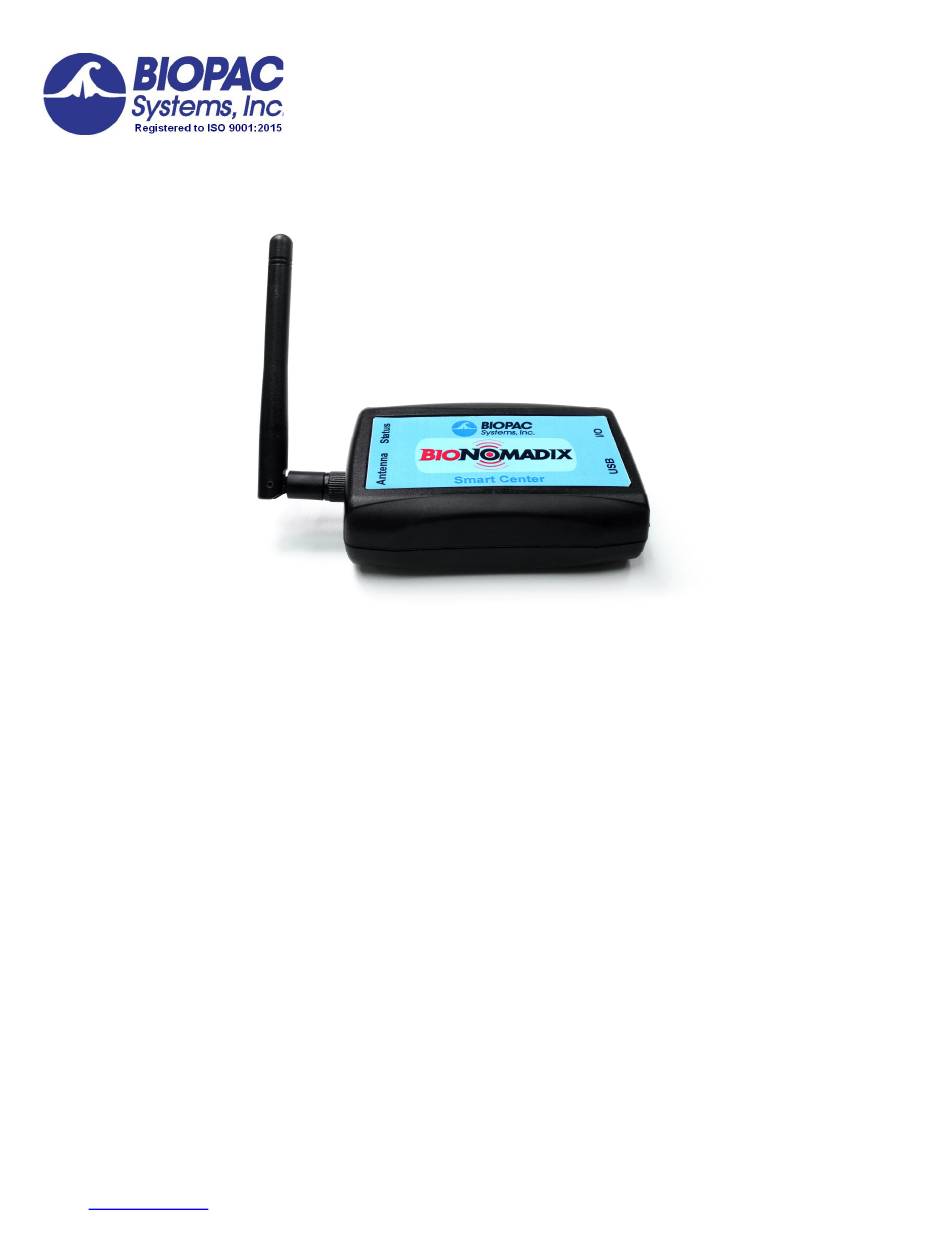

BIONOMADIX SMART CENTER
Congratulations on your purchase of a BIOPAC BioNomadix Smart Center and welcome to the BIOPAC
community of researchers and educators – BIOPAC is confident that Smart Center will be a useful and vital
addition to your lab.
What is Smart Center?

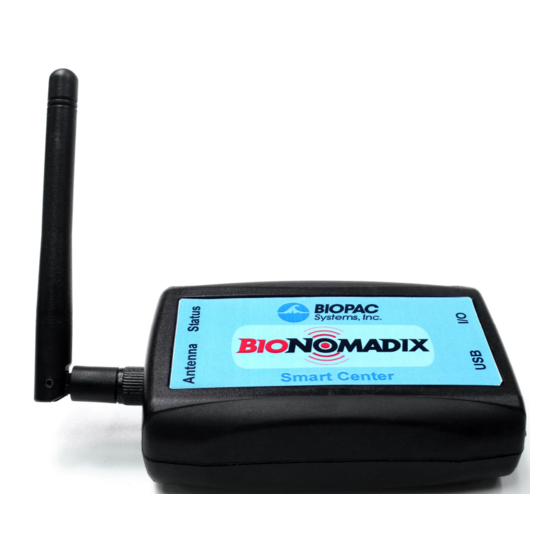

BioNomadix Smart Center is a small-form data acquisition unit and wireless receiver that connects to a computer
USB port and records simultaneous physiological data from up to three BioNomadix Transmitters. Unlike
standard BioNomadix Systems requiring multiple receiver units connected to an MP Data Acquisition System,
Smart Center offers a compact, all-in-one data acquisition solution. Smart Center does not contain a battery and is
entirely powered by a computer USB port. No additional components or amplifiers are necessary. All that is
needed to record high quality data is the Smart Center, AcqKnowledge software, and transmitter(s).
Transmitter pairing and setup is configured in an easy-to-use AcqKnowledge Setup Wizard with guided prompts.
Smart Center supports all BioNomadix Transmitter types. When connected, Smart Center appears in the
AcqKnowledge hardware menu as a stand-alone hardware option, and supports most of the same advanced
software features as BIOPAC's MP160 and MP36R Research Systems.
Smart Center functionality can be extended via the integrated I/O port, which provides access for up to up to 8
TTL digital channels. This is useful for recording synchronization signals from SuperLab and E-Prime
stimulus/response studies, without the need for an additional transmitter.
High Level Benefits:
·
Small form factor (card deck sized)
·
Direct connection to computer
·
9 Channels of wireless data
·
Simple to use and easy to connect
www.biopac.com
BioNomadix
Smart Center
with AcqKnowledge
Guide
BioNomadix Smart Center with AcqKnowledge
®
42 Aero Camino, Goleta, CA 93117
Tel (805) 685-0066 | Fax (805) 685-0067
info@biopac.com | www.biopac.com
·
10 meter range
·
Up to 2 KHz data acquisition speed
·
Digital Input
12.28.2017
Page 1 of 24
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BIOPAC Systems BioNomadix Smart Center
Summary of Contents for BIOPAC Systems BioNomadix Smart Center
- Page 1 What is Smart Center? BioNomadix Smart Center is a small-form data acquisition unit and wireless receiver that connects to a computer USB port and records simultaneous physiological data from up to three BioNomadix Transmitters. Unlike standard BioNomadix Systems requiring multiple receiver units connected to an MP Data Acquisition System, Smart Center offers a compact, all-in-one data acquisition solution.
- Page 2 Right panel: Micro-USB port (left) for connecting Smart Center to computer and I/O port (right) for inputting digital LEDs: signals Green = power on (blinking or steady) Amber = connected to AcqKnowledge (steady) www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 2 of 24...
- Page 3 NOTE: When the Smart Center is connected to the USB port, the green power light should blink. If the power light does not blink, try connecting the Smart Center directly to a computer USB port. (Connecting through a USB hub may not provide enough power to the unit.) www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 3 of 24...
- Page 4 Then follow the prompts to repeat the pairing process. 7. Click “Pair” when the “Transmitter Found” prompt appears. (You may release the ID button down once this prompt appears.) www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 4 of 24...
-
Page 5: Setup Wizard
This option is used when recording event marking information from external devices. If external devices are not being used, selecting this option is not necessary. See following page for additional Setup Wizard options. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 5 of 24... - Page 6 NOTE: To pair a transmitter, it is necessary for it to be powered on. To unpair, the transmitter may be on or off. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 6 of 24...
- Page 7 NOTE: Single or multiple transmitters can also be unpaired via the Smart Center “Manage Transmitters” contextual menu option. (See “Managing Transmitters and RF Channels” on page 6.) It is not necessary for a transmitter to be powered on in order to unpair it. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 7 of 24...
-
Page 8: Advanced Configuration
Conversely, to use the transmitters with the Smart Center, the Logger should be turned off. · The “Set Up Signals and Smart Center” and pairing options are not available during data recording. A warning dialog will appear if these options are selected during recording. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 8 of 24... - Page 9 Warn on When checked, a prompt will appear each time a new acquisition is started warning that existing Overwrite data will be erased. See the AcqKnowledge Software Guide for more details. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 9 of 24...
- Page 10 These can be additional channels to extract a derived signal, such as respiration rate extracted from the Respiration signal, or heart rate, RR interval, and R wave amplitude extracted from the ECG signal. See following pages for a full overview of all BioNomadix transmitter setup options. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 10 of 24...
- Page 11 Show root mean square: Calculates the root mean square of the EMG signal and plots in a separate channel. NOTE: This transmitter must be calibrated (for Dynamometer signal) prior to use. Calibration prompts will appear at the start of the recording. (See pages 18-19). www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 11 of 24...
- Page 12 Electrogastrogram (EGG): Measures Electrogastrogram (EGG) data—the peristaltic, wavelike contractions of the stomach—on one or both channels (A or B). No additional configurable options aside from enabling or disabling the channels. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 12 of 24...
- Page 13 Show integrated: Calculates integrated EMG and plots in a separate channel. Show root mean square: Calculates the root mean square of the EMG signal and plots in a separate channel. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 13 of 24...
- Page 14 No additional configurable options aside from enabling or disabling the channels. NOTE: The Goniometer transmitter must be calibrated prior to use. Calibration prompts will appear at the start of the recording. (See pages 18-19). www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 14 of 24...
- Page 15 Show phasic EDA: Measures short term, abrupt changes in EDA and plots in a separate channel. NOTE: The PPGED transmitter must be calibrated for EDA signal prior to use. Calibration prompts will appear at the start of the recording. (See pages 18-19). www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 15 of 24...
- Page 16 Respiration A and B: Measures one or two channels of respiration signal. Show respiration rate: Displays the respiration rate in breaths-per-minute (BPM) derived from the respiration signal(s) and plots in a separate channel. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 16 of 24...
- Page 17 Strike A and B: Measures one or two channels of strike data. The system will record heel/toe strike activity via two force sensitive resistors (FSRs) located in the associated transducer (BN-STRIKE-XDCR). No additional configurable options aside enabling or disabling the channels. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 17 of 24...
- Page 18 “Start” in the AcqKnowledge graph (if the “Record later” option was selected in the Setup Wizard). Calibration Prompts for Dynamometer and Electromyogram (for EMG signal): Calibration Prompts for Goniometer: www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 18 of 24...
- Page 19 Calibration Prompts for Pulse Plethysmogram and Electrodermal Activity (for EDA signal): www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 19 of 24...
-
Page 20: Upgrading Firmware
Occasionally, the Smart Center firmware may require updating. A series of prompts will automatically display if the firmware needs to be updated. If the firmware update is unsuccessful, the following prompt will appear: www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 20 of 24... -
Page 21: Troubleshooting
Center is being used with a BioNomadix Logger. To address this problem, the RF channels can be manually reassigned in the AcqKnowledge software Setup Wizard. See pages 6-7 for information on how to manually reset the channels. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 21 of 24... - Page 22 If the graph channel has been resampled to a lower sampling rate, the original sampling rate can be restored by using the “Transform > Resample Waveform” feature. For more information about resampling graph or waveform data, see the “Transform” chapter of the AcqKnowledge Software Guide. www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 22 of 24...
- Page 23 Frequency: 2.4 GHz Ports: USB (1), I/O (1) Model: BN-RX FCC ID: ZWIBNXR1 9901A-BNXR1 VCCI: 211-128161 For further assistance about using Smart Center, contact BIOPAC and submit a Support Request www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 23 of 24...
-
Page 24: Industry Canada Information
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. CLASS A ITE この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると 電波妨害を引き起こすことがあります。この場合には使用者が適切な対策を 講ずるよう要求されることがあります。VCCI-A www.biopac.com BioNomadix Smart Center with AcqKnowledge Page 24 of 24...
