Salto KPB03 Series Quick Start Manual

KPB03xx..
/

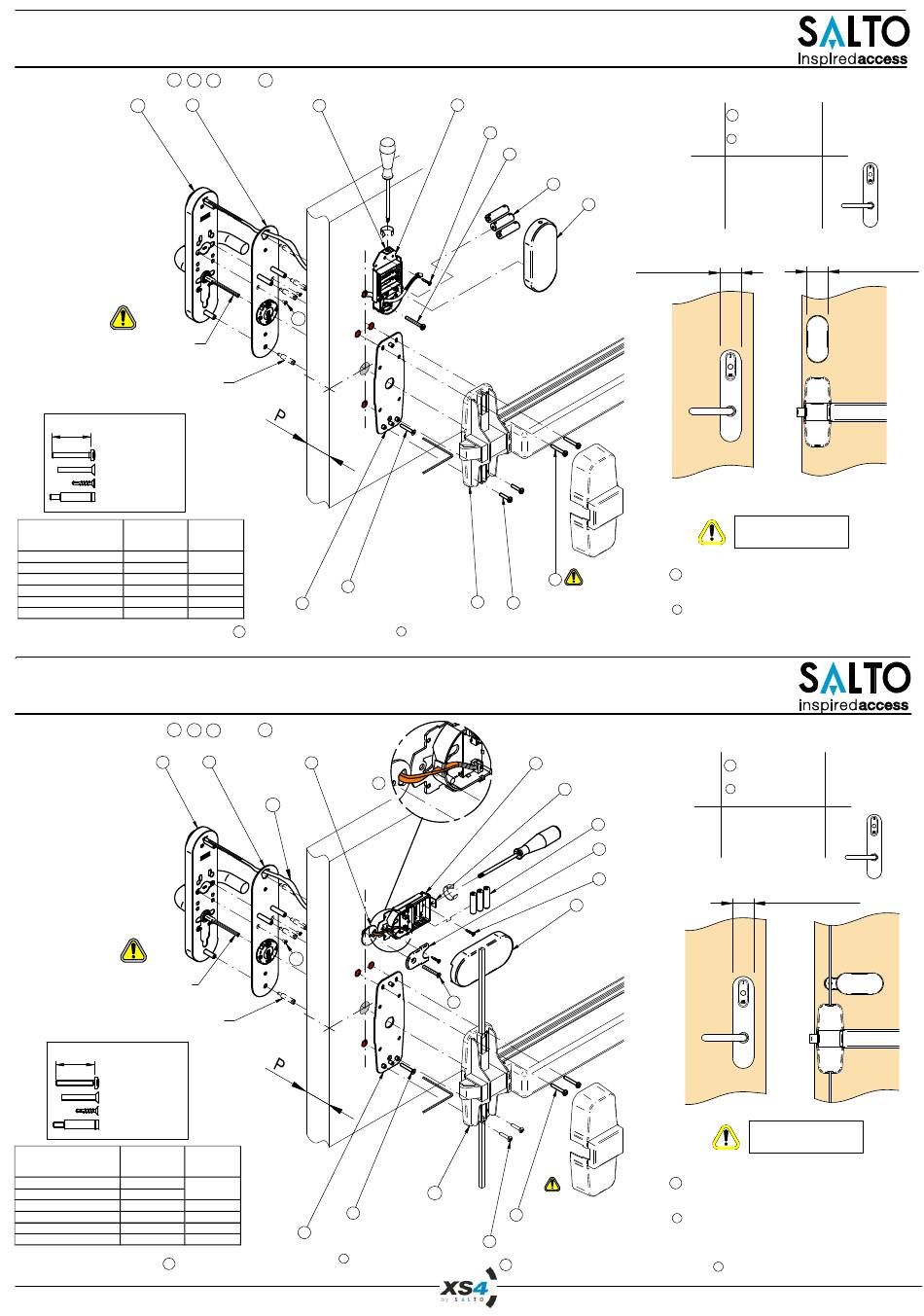

Installation Secuence
1 2
A
1 i6xx... 2
CUT THE SPINDLE
SP01405
SEE INSTRUCTIONS
SP01126-20 (x20) BOLT EXTENSION
ONLY FOR P > 2 - 3/8" (60mm)
FOR ELECTRONIC ESCUTCHEON
Length
(3) M5 x Length DIN 7985
(1) M5 x Length DIN 7991
(1) Ø 3,9x19 DIN 7504
(?) BOLT EXTENSION
Length
P
EXTENSION
Inch (mm)
Door Inch / Puerta (mm)
SUPLEMENTO
1-9/16" (40mm)
1-3/8"<2" (35<51mm)
2-3/16" (55mm)
2-1/16"<2-5/8" (52<66mm)
1-9/16" (40mm)
2-5/8"<3-1/4" (67<82mm)
2-3/16" (55mm)
3-1/4"<3-13/16" (82<97mm)
1-9/16" (40mm)
3-7/8"<4-7/16"(98<113mm)
4-1/2"<4-3/4" (114<120mm) 2-3/16" (55mm)
KPB04xx..
/
Installation Secuence
1 2
A
i6xx...
1
SP01405 CUT THE SPINDLE
SEE INSTRUCTIONS
BOLT EXTENSION
SP01126-20 (x20)
ONLY FOR P > 2 - 3/8" (60mm)
FOR ELECTRONIC ESCUTCHEON
Length
(2) M5 x Length DIN 7985
(2) M5 x Length DIN 7991
(2) Ø 3,9x19 DIN 7504
(?) BOLT EXTENSION
Length
P
EXTENSION
Inch (mm)
Door Inch / Puerta (mm)
SUPLEMENTO
1-9/16" (40mm)
1-3/8"<2" (35<51mm)
2-3/16" (55mm)
2-1/16"<2-5/8" (52<66mm)
1-9/16" (40mm)
2-5/8"<3-1/4" (67<82mm)
2-3/16" (55mm)
3-1/4"<3-13/16" (82<97mm)
1-9/16" (40mm)
3-7/8"<4-7/16"(98<113mm)
4-1/2"<4-3/4" (114<120mm) 2-3/16" (55mm)
Eng * SEE VON DUPRIN 98/9957 PANIC
BAR INSTALLATION INSTRUCTIONS
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
Adapter Kit For
.......
3 13
Exterior Plate
SP01445-01 13 To Fix, Counter Clockwise
2a
C
L
BOLT
_
1
6 SP01436-40/55
1
5 Interior Plate
SP01410
2
2
®
Eng
* SEE VON DUPRIN 98/99 PANIC
BAR INSTALLATION INSTRUCTIONS
Adapter Kit For
.......
3 15
2 Exterior Plate
SP01445-01 5 SP01402 Top Washer
**
2a
C
L
BOLT
_
1
4 SP01436-40/55
1
2
3 SP01410 Interior Plate
2
E * MONTAJE BARRA ANTIPANICO
®
VON DUPRIN 98/9957 SEGUN
INSTRUCCIONES DEL FABRICANTE
®
VON DUPRIN 98/99
Single Point
3 SP01464-01 Battery Holder
SP01464-03
Wireless Battery Holder
10 SP01015 Selfdrilling Screw DIN 7504 PH
4 SP00095-4020
SP00095-5520
11
M5 DIN 7991 HEX
*
7
9 SP00095-12
* MONTAJE BARRA ANTIPANICO
E
®
VON DUPRIN 98/99 SEGUN
INSTRUCCIONES DEL FABRICANTE
®
VON DUPRIN 98/9957/9827
Three Locking Points
8 SP01464-02
SP01464-04
5a
7
*
10
MAX. TORQUE:
1,4 N.m/13 lb.in
M5 DIN 7991 HEX
11 SP00095-4020
SP00095-5520
12 SP00095-12 M5 DIN 7985 PZ
** For door thickness (P) over 2-9/16" (65mm)
® Eng
Panic Bar
Eng
M5 DIN 7985 PZ
(x20)
(x20)
(x30) LR06
SP01077-10
12 SP01408-01-ff Battery Cover
SP01408-03-ff Wireless Battery Cover
2 5/8" (67mm)
OUTSIDE
Eng Only Wireles s Models:
MAX. TORQUE:
8
-Exit detection depending of the panic bar model.
1,4 N.m/13 lb.in
-Panic bars with no exit detection, will cause an intrusion alarm
each time the door is opened from inside.
M5x12 DIN 7985 PZ
E Sólo Mo delos Wireles s:
-La detección de salida depende del modelo de barra antipanico.
-Barras antipanico sin detector de salida, pueden causar una
alarma de intrusion cuando la puerta sea abierta desde el interior.
Panic Bar
Battery Holder
Eng
Wireless Battery Holder
15 To Fix, Counter Clockwise
13 SP01077-10 (x30) LR06
6 SP01400 Wire Cover
9 SP01015 Selfdrilling Screw DIN 7504 PH
SP01408-02-ff
14 Battery Cover
SP01408-04-ff Wireless Battery Cover
OUTSIDE
Eng Only Wireles s Models:
-Exit detection depending of the panic bar model.
-Panic bars with no exit detection, will cause an intrusion alarm
each time the door is opened from inside.
M5 DIN 7985 PZ
(x20)
E Sólo Mo delos Wireles s:
(x20)
-La detección de salida depende del modelo de barra antipanico.
-Barras antipanico sin detector de salida, pueden causar una
alarma de intrusion cuando la puerta sea abierta desde el interior.
E
Use special wire 01045-350
EXTERNAL
ELECTRONIC
ESCUTCHEONS
COMPATIBLE
MODELS
E MODELOS COMPATIBLES
Ai650m00ffH8
Ai660m00ffH8
2 5/8" (67mm)
INSIDE
AT THIS POINT DO NOT
CLOSE THE DOOR
TEST THE LOCK FIRST
follow user manual
EXTERNAL
ELECTRONIC
ESCUTCHEONS
COMPATIBLE
MODELS
MODELOS COMPATIBLES
E
Ai650m00ffH8
Ai660m00ffH8
2 5/8" (67mm)
INSIDE
AT THIS POINT DO NOT
CLOSE THE DOOR
TEST THE LOCK FIRST
follow user manual
** Para puertas de espesor (P) mayores de 2-9/16"
(65mm), Utilice el cable especial 01045-350
P-201419 - 1/2 -ED.18/05/2010
