- Page 1 Aqara Hub Product Specifications...
-
Page 2: Table Of Contents
Table of Contents Revision Record..................................... 1 1. Product Description..................................2 1.1. Product Overview................................2 1.2. Three-view Diagram of the Product..........................2 1.3. Product Selling Point..............................2 2. Product Parameters..................................3 2.1. Basic Parameters................................3 2.2. Electrical Parameters..............................3 2.3. Wireless Parameters................................4 2.4. Environmental Parameters..............................4 3. -
Page 3: Revision Record
Revision Record Editio Revised Content Editor Date Chen V1.0 1. Initial edition 20180516 Zhigang 1 / 7... -
Page 4: Product Description

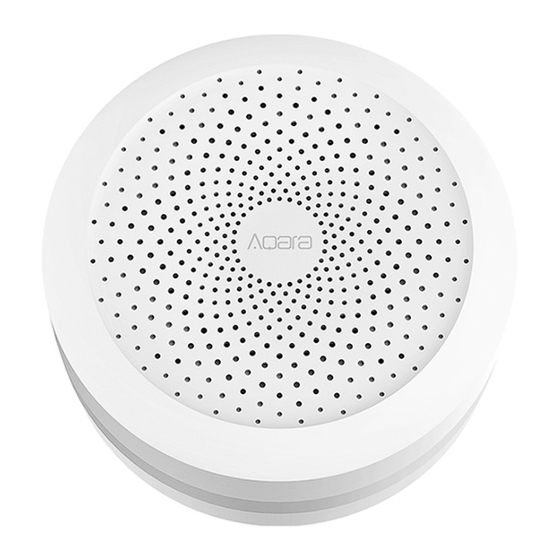

1.1. Product Overview The Aqara Hub is a smart bridge compatible with the Apple HomeKit. Through the Hub, you can easily connect Aqara accessories with HomeKit and implement control of devices such as smart switches and RGB night light, monitoring temperature,humidity and atmospheric pressure, sensing motion, detecting water leakage and other functions. -
Page 5: Product Parameters
Product Parameters 2.1. Basic Parameters Category Description Product Brand Aqara Product Name Product Model ZHWG11LM Product Dimensions 80 × 80 × 41.5 mm Product Color White Product Material ABS+PC Power Plug Types China, USA, UK, Europe Product Gross Weight 186.5g... -
Page 6: Wireless Parameters
2.3. Wireless Parameters Category Description Wireless Connection Zigbee WiFi Wireless Standard IEEE 802.15.4 IEEE 802.11 b/g/n Operating Frequency 2.4GHz Transmit Power 10dbm 15dbm 30M indoors with no Connection Distance obstructions 2.4. Environmental Parameters Category Description -10℃～+40℃ Operating Temperatures Operating Humidity 0~95% RH, Non-condensing 4 /8... -
Page 7: Product Information
Addition of accessory allowed purple 3.2. Button Functions Button Action Description Single press Turn on/off night light 10second long press Reset Hub 3consecutive short presses Enter accessory addition mode 10 quick presses Restore factory settings and delete all accessory data. 5 /8... -
Page 8: Installation Instructions
3.3. Installation Instructions First power up the Hub and wait 30 seconds until the yellow light blinks rapidly. Please ensure that your iPhone or iPad (iOS 10.3 or above) has been connected to a 2.4GHz Wi-Fi network. If a dual band router is used, please turn off the 5GHz Wi-Fi network first. -
Page 9: Product Testing Information
Tested by supplier Strength, lifespan button presses RoHS report, 2.0V0, 2.0V2 flame Case material Tested by supplier resistance,even light,light eflection, Aqara Hub shading SRRC Wi-Fi, Zigbee Tested by supplier Entire product, every RoHS component Tested by supplier Safety test - high... -
Page 10: Certification Information
Electromagnetic Compatibility test Tested by supplier EMC - Anti lightning, Anti electromagnetic interference 4.2. Certification Information Category Description FCC ID: 2AKIT-ZNCZ12LM IC: Certification Information 22635-ZNCZ12LM 8 /8...
