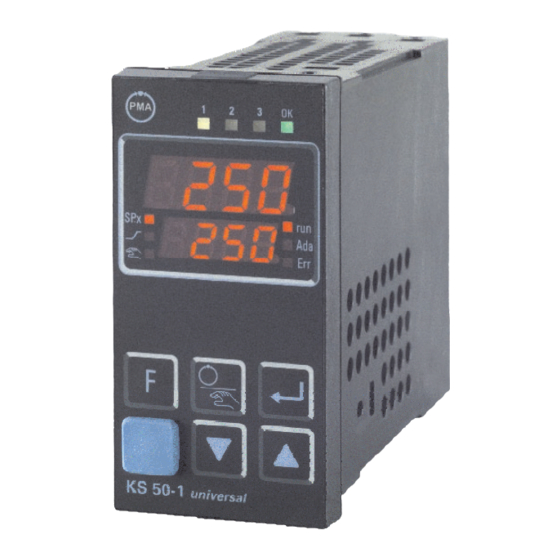

Universal industrial controller
Hide thumbs Also See for Universal KS 50-1:

Advertisement

±
Universal continuous/switching
version, i.e. reduced stocks
±
100 ms cycle time, i.e. also
suitable for fast control loops
±
Freely configurable analog
output, e.g. as process value
output
±
Customer-specific linearization
for all sensors
±
Settings can be blocked via
password and internal switch for
high security
±
Extended temperature range up
to 60 °C allows mounting close to
the process
±
Easy 2-point or offset
measurement correction
±
Emergency operation after
sensor break by means of the
„output hold" function
±
Logical combination of digital
outputs, e.g. for general alarm
±
Programmer with 10 segments,
bandwidth and „end" signal
±
RS 422/485 Modbus RTU
interface
±
Built-in transmitter power supply
±
Splash-water proof front (IP 65)
APPLICATIONS
Ø
Furnaces and ovens
Ø
Burners and boilers
Ø
Plastics processing
Ø
Hot runners
Ø
Driers
Ø
Climatic chambers
Ø
Heat treatment plants
DESCRIPTION
The universal temperature controller
KS 50-1 is intended for universal,
precise, and cost-effective control tasks
in all branches of industry. For this, the
unit provides simple 2-point (on/off)
control, continuous PID control, or
3-point stepping control. The process
value signal is connected via a universal
input. A supplementary analog input can
be used for heating current
measurement or as an external set-point
input.
Every KS 50-1 has three process outputs
that can be 3 relays or 2 relays plus a
universal output. This universal output
can be used for operating a solid-state
relay, a continuous current/voltage
output or to energize a two-wire
transmitter. Optionally there are two
additional opto coupler outputs.
The selectable function „start-up"
ensure increased lifetime of
high-performance electrical heating
elements (e.g. hot runner moulds).
Universal Industrial Controller
BluePort
®
Front interface and BlueControl software
Maintenance manager and error list
Start-up circuit and boost function
Self-Tuning to the setpoint without oscillation
Monitoring of heating current and output circuit
3-point controller for water, fan and oil cooling
Plug-in module
KS 50-1 controllers are built as plug-in
modules. This enables them to be
replaced very quickly without tools, and
without disturbing the wiring.
Self-tuning during start-up and to the
setpoint
This new function determines the
optimum settings for fast line-out
without overshoot. With three-point
controller configuration, the „cooling"
parameters are determined separately,
thus ensuring an optimum match to the
process. By pushing a button the
KS 50-1 determines the best control
parameters at the actual setpoint. This
function does not require oscillation, and
performs a minimal deviation of the
process value.
Display and operation
Clear information are given by ten
indicator LEDs in the front panel that
display operating mode, I/O states, and
errors. The Ò-key switches the
controller into the manual mode directly.
If required, the direct switch over can be
disabled or the key can be configured
e.g. reset the latched alarms. By the
flexibly applicable function key an
external switch can be omitted in many
cases, because one can start now e.g.
the boost function directly.
Front interface and Engineering Tools
Control parameter adjustment in
seconds has now also been
implemented in the KS 50 class of
instruments. Via the BlueControl
software incl. its simulation functions,
and especially the convenient BluePort
front panel interface, the required set-up
KS 50-1
Manual gain scheduling
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Universal KS 50-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PMA Universal KS 50-1

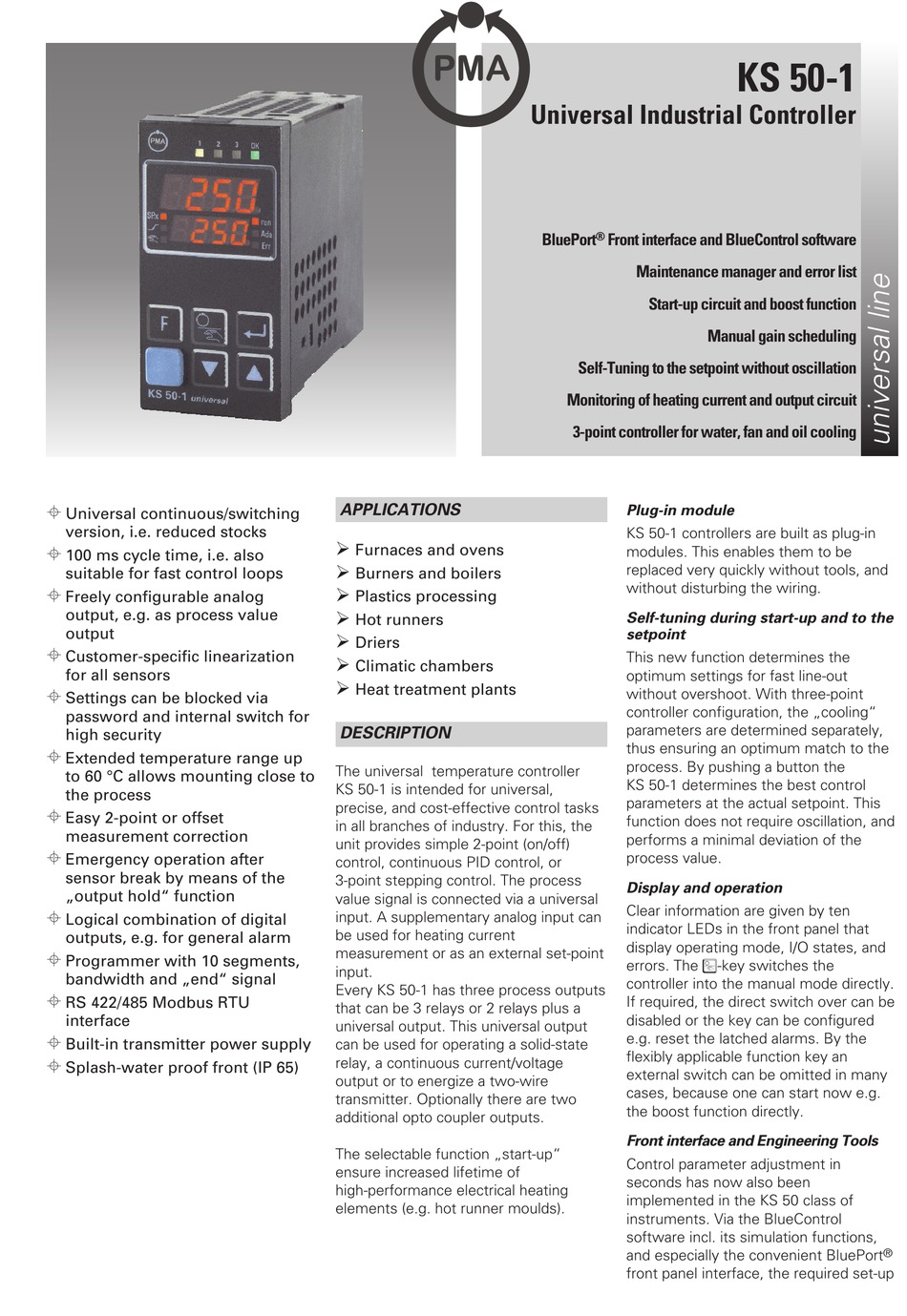

  • Page 1 KS 50-1 Universal Industrial Controller BluePort ® Front interface and BlueControl software Maintenance manager and error list Start-up circuit and boost function Manual gain scheduling Self-Tuning to the setpoint without oscillation Monitoring of heating current and output circuit 3-point controller for water, fan and oil cooling APPLICATIONS ±...
