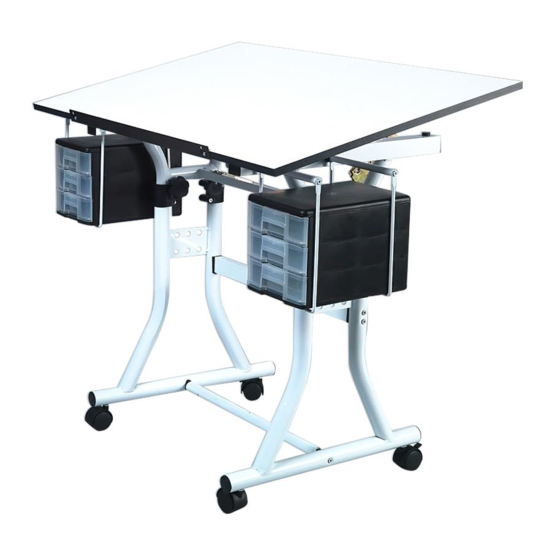

NEW U-DS90W/U-DS90B Creation Station Assembly Instructions
[A] - 24" x 40" Top
(1 piece)
[B] - Upper Base End
(2 pieces)
[C] - Lower Base End
(2 pieces)
[D] - Foot Bar (1 piece)
[E] - Cross Support
(1 piece)
[F] - Top Support
(1 piece)
[G] - Pencil Ledge
(1 piece)
IMPORTANT
If you have difficulty assembling your U-DS90W
Creation Station or need customer service
assistance. Please call:
Martin Universal Design, Inc.
Customer Service Hot Line at
1-313-895-0700.
If you need additional parts,
it is not necessary to contact your dealer,
our Customer Service Rep. will forward them
to you immediately.
Additional Tool needed: Phiillips Screwdriver

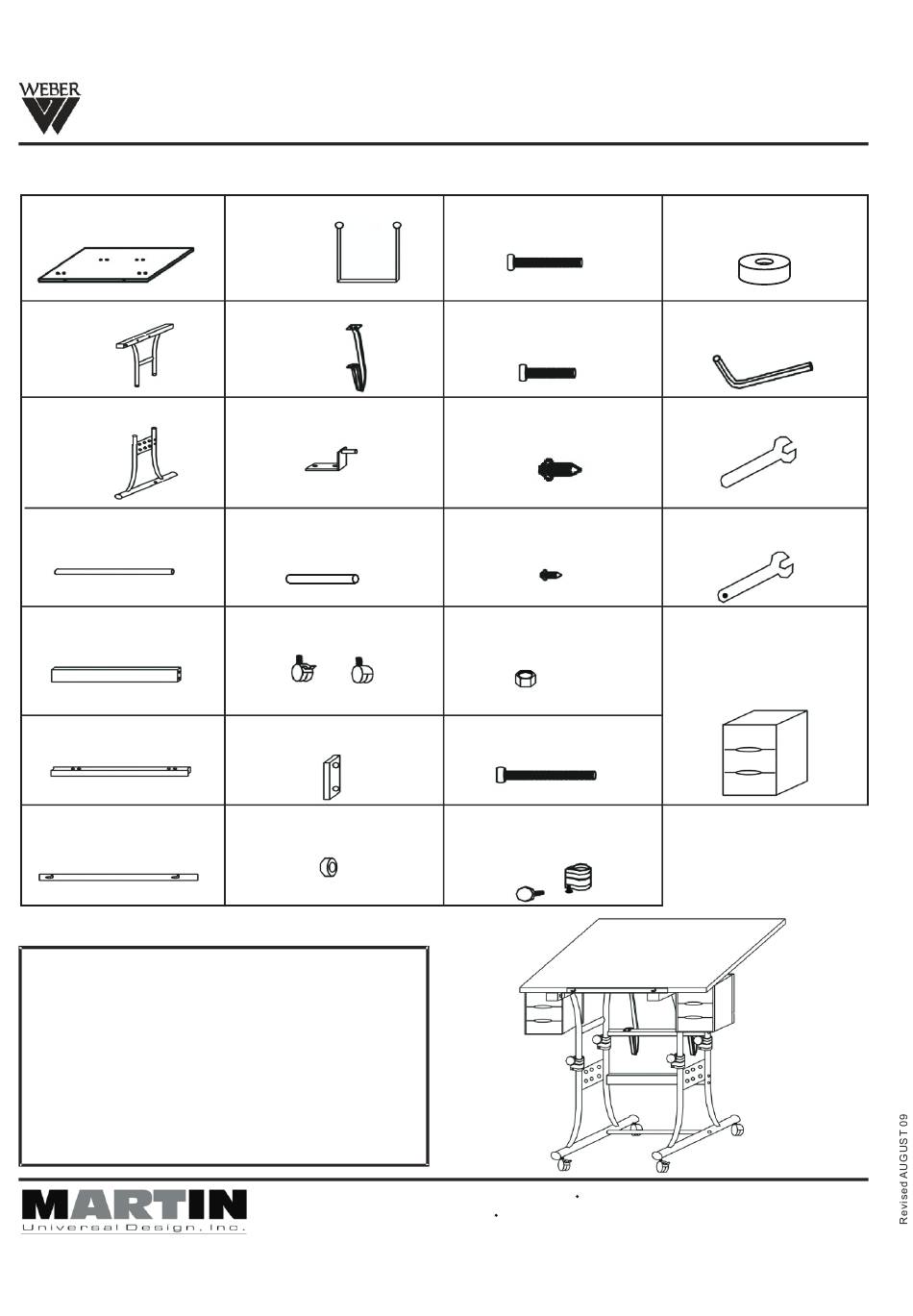

Parts List
[H] - Drawer Supports
(4 pieces)
[I] - Tilt Mechanism
(2 pieces)
[J] - Top L-Bracket
(2 pieces)
Drawer Supports
[K] -
Rods
(4 pieces)
[L] - Castors
(2 Locking & 2 non-locking)
[M] - Cross Support
End Cap (2 pieces)
[N] - Footbar Spacers
(2 pieces)
4444 Lawton Avenue, Detroit, MI 48208 USA Tel:(313)895-0700/Fax:(313)895-0709
Email: Custservmud@aol.com visit us at www.MartinUniversalDesign.com
[O] - 6 x55mm
(6 pieces)
[P] - 6 x 28mm
(8 pieces)
[Q] - 5x14mm
(8 pieces)
[R] - 4 x 12mm
(2 pieces)
[S] - Nuts
(4 pieces)
[T] - 6x65mm
(6 pieces)
[U] - Collars - includes
knob and bolt
(4 pieces)
Washer
[V] -
(4 pieces)
[W] - Allen Wrench
(1 piece)
[X] - Wrench (1 piece)
[Y] - Wrench with hole
(1 piece)
[Z] - Drawers
(2 sets - these need
to be assembled)
Please see assembly
sheet for drawers.
Pg. 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Weber Creation Station U-DS90W and is the answer not in the manual?

Questions and answers

Summary of Contents for Martin Universal Design Weber Creation Station U-DS90W

  • Page 1 IMPORTANT If you have difficulty assembling your U-DS90W Creation Station or need customer service assistance. Please call: Martin Universal Design, Inc. Customer Service Hot Line at 1-313-895-0700. If you need additional parts, it is not necessary to contact your dealer, our Customer Service Rep.
  • Page 2 NEW U-DS90W/U-DS90B Creation Station Assembly Instructions STEP 1] Assembly Base of Table Begin by taking the [2] Lower Base End units (part C) and attach the foot bar (part D) to the lower Base End units using a foot bar spacer (part N) between each end of foot bar and base end unit.
  • Page 3 NEW U-DS90W/U-DS90B Creation Station Assembly Instructions STEP 4] Attaching Tilt Mechanism FIG 4 Take the [2] Tilt Mechanisms (part I) and attach the one end as show in FIG 4 to the Top Support (part F) using [2] 6x28mm bolts (part P) and [2] nuts (part S) per tilt mechanism. Tighten with wrench (part U) and Allen Wrench.
  • Page 4 NEW U-DS90W/U-DS90B Creation Station Assembly Instructions STEP 5] Attach Top to Base FIG 5 NOTE: Use [2] people to help each other turn base over onto Table Top. Lay Table Top onto flat carpeted surface or empty flattened carton insuring top wont scratch, making sure the T-nut holes are facing up.
  • Page 5 IMPORTANT If you have difficulty assembling your U-DS90W Drawers or need customer service assistance. Please call: Martin Universal Design, Inc. Customer Service Hot Line at 1-313-895-0700. If you need additional parts, it is not necessary to contact your dealer, our Customer Service Rep. will forward them to you immediately.
