Shopsmith MARK V PRO Instruction Manual

MARK V PRO FENCE
ROUTER TABLE
521962
-
-
-

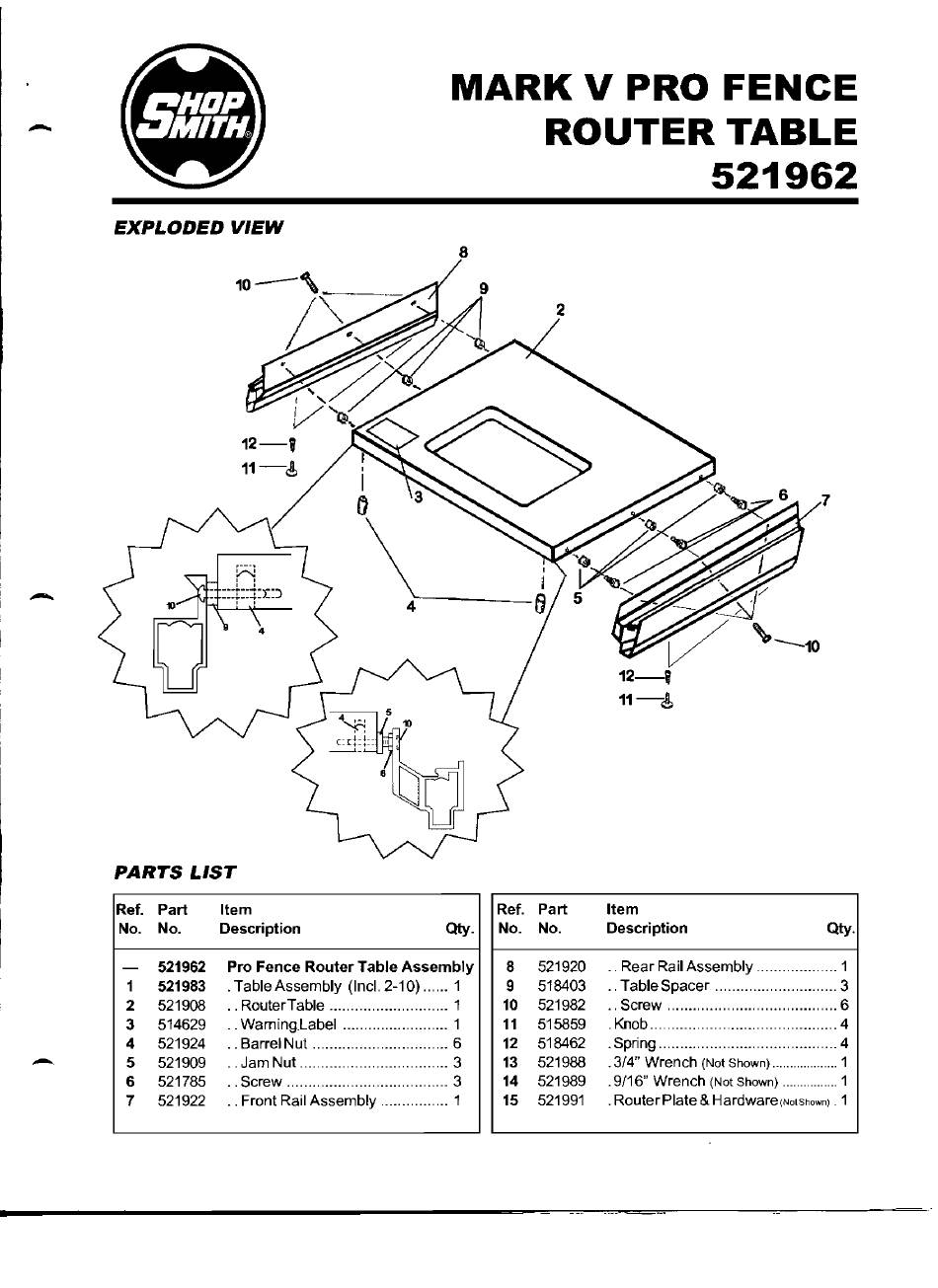

EXPLODED VIEW
8
PARTS LIST
Ref. Part Item
No. No. Description
Qty.
-
521962 Pro Fence Router Table Assembly
1 521983 · Table Assembly (Inc!. 2-10) ...... 1
2 521908
· . RouterTable ............................ 1
3 514629 · . WamingLabel
.........................
1
4 521924 · . Barrei Nut ................................ 6
5 521909
· . Jam Nut ... ........................... ... 3
6 521785 · . Screw ...................................... 3
7
521922
· . Front Rail Assembly ................ 1
Ref. Part
No. No.
8
521920
9 518403
10 521982
11 515859
12 518462
13 521988
14 521989
15 521991
Item
Description
Qty.
..
Rear Rail Assembly
..... ......
.... 1
TableSpacer ........ ..........
....
.... 3
..
Screw .................... ................... 6
. Knob.
........ .
.............
...
............. 4
. Spring ......................
.......
........... 4
. 3/4" Wrench
(Not Shown) ...
............... 1
.9/16" Wrench
(Not Shown) ................
1
. RouterPlate & Hardware,N'lsh'W"' . 1
7
