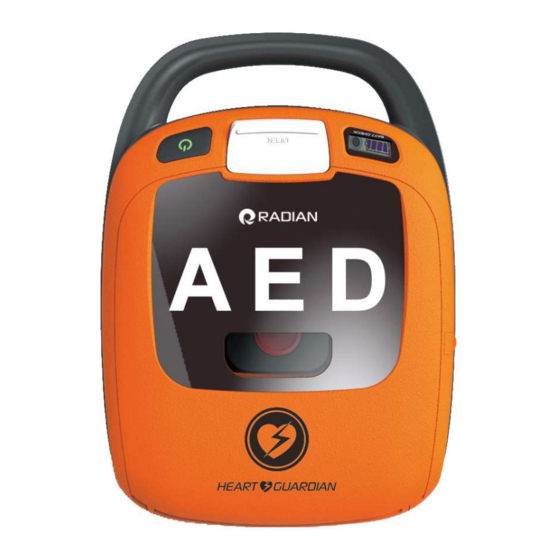

Radian HEART GUARDIAN HR-503 HEART GUARDIAN HR-503 A User Manual
  1. Manuals
  2. Brands
  3. Radian Manuals
  4. Medical Equipment
  5. HEART GUARDIAN HR-503HEART GUARDIAN HR-503 A
  6. User manual

Radian HEART GUARDIAN HR-503 HEART GUARDIAN HR-503 A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HR-503 User Manual
Rev.0
20/10/2017
HR-503 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEART GUARDIAN HR-503 HEART GUARDIAN HR-503 A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Radian HEART GUARDIAN HR-503 HEART GUARDIAN HR-503 A

Summary of Contents for Radian HEART GUARDIAN HR-503 HEART GUARDIAN HR-503 A

  • Page 1 HR-503 User Manual Rev.0 20/10/2017 HR-503 User Manual...
  • Page 2  This manual can be applied to other models.  Plagiarism, quotation, distribution of this manual is prohibited without the consent of RADIAN  All copyrights in this manual are reserved by RADIAN #1610, Halla-Sigma Valley, 53, Gasan Digital 2-ro Geumcheon-gu Seoul, Korea +82-2-852-1122 sales @radian.co.kr...

  • Page 3: Table Of Contents

    Contents Symbol Descriptions .......... Chapter 1 Warning and Caution ........Chapter 2 Limited Warranty ........... Chapter 3 Customer Requirement and product registration ........3.1 Warranty details ................3.2 Warranty period ................. 3.3 Product repair/exchange ..............3.4 Product Introduction ........Chapter 4 Product overview ................

  • Page 4: Symbol Descriptions

    Following symbols refer to the international standard, and are indicated on the surface of the product, battery, AED pads, and packing box  Some symbols can be changed/modified/added by RADIAN to follow up with the international standards update Symbol Explanation...
  • Page 5 Symbol Explanation Symbol Explanation Keep away from Do not expose or ignition materials incinerate to open Do not operate or keep flame AED around ignition materials Expiration date Do not expose to AED pads shall be sunlight replaced after marked Do not expose to direct date sunlight...
  • Page 6 Symbol Explanation Symbol Explanation Protection Level Maintenance Protection level that required shows anti-dust and waterproof level Recycling Non-Latex Dispose of properly in accordance with all state, province, and country regulations Date of Manufacture Manufacture Name and address of manufacturer Bluetooth Battery Indicator AED supports Bluetooth Indicates AED’s...

  • Page 7: Warning And Caution

    Warning and Caution  Please refer to the following for safety use of HR-503  Certain contents may be indicated repeatedly in other parts of manual Do not use if the patient shows any reaction or is conscious HR-503 is a portable defibrillator manufactured for ventricular fibrillation patients.
  • Page 8 Do not attempt to disassemble or repair the AED Disassembling AED may result in electric shock hazard. RADIAN is not responsible for electric shock hazard resulted by unauthorized disassemble or repair. Please contact local/national sales representative for repair or replacement...
  • Page 9 1 hour of storage at a room temperature condition prior to actual AED operation. For long-term storage(over 5 days), RADIAN recommends maintaining AED with temperature range from 0℃ to 40℃. AED pads and battery may have significant performance degrade with the long-term storage(over 5 days) at out of range of 0℃~40℃...

  • Page 10: Limited Warranty

    AED pads but varies the covering time periods) that guarantees free replacement and repair service. Warranties and returning policies may vary by products and periods depends on regional regulations and RADIAN’s sales policy. Please contact sales representatives for more details.

  • Page 11: Product Repair/Exchange

    3.4 Product repair/exchange An inspection can be performed by Radian (or regional representative) to check the warranty period and trace the defect. Once Radian confirm the defect is caused by one of the manufacturing, development or delivery procedure, repair/exchange may be provided without any shipping charge. Shipping will be completed within maximum of 50 days from the day the product arrives at RADIAN Corp., which are automatically added up to remaining warranty...

  • Page 12: Product Introduction

    4 Product introduction Please consult the quick manual and user manual prior to AED operation It is highly recommended for every potential user to complete periodic training for CPR and HR-503 operation. Please contact national/local representative for Heart Guardian series to find out detailed CPR and AED operating training schedule 4.1 Product overview HR-503, a portable electric device operated by battery power, is an easy-to-use...
  • Page 13 Speaker Bluetooth Port ⓐ Power Button Used to turn on or off the product Used to select language used in Audio guidance ⓑ Language Select Button * Functions may be different as per model (refer to p20~p21) Press the button when guidance indicates to ⓒ...
  • Page 14 4.1.2 Specification Product Type Semi-automated External Defibrillator Auto/Manual Automatic diagnosis (battery power, circuit power, Diagnosis button operation checks) ECG complete FFT ECG Analysis analysis Language selection Language selection for Audio Guidance (4 languages) Compatible Adult/child mode select button Adult/Child Charge Method Hi-Cap charge 150J±10% (Adult) / 50J±10% (Child) Output Range...
  • Page 15 4.1.3 Accessories HR-B3 Portable AED case Model : HR-B3 Usage : AED Storage and protection Type : Fabric, Polyethylene Size : 235(W) x 275(D) x 100(H)mm Weight : 380g Life time : 1 year(Portable) 10 years(Storage) P-503, AED Pads Model : P-503 Usage : Delivering electric shocks and impedance signal Type : Adhesive pads, compatible for...

  • Page 16: Indications Of Use

    4.1 Indications of use The Heart Guardian HR-503 is indicated for use on victims of cardiac arrest who are exhibiting the following signs: - Unconscious - Not breathing - Without circulation The Heart Guardian HR-503 is intended for use by personnel who have been trained in its operation.

  • Page 17: Getting Started

    4.2.1 Preparation ① Open the package and check product components. If not all components are prepared, please contact national/local representative. Manual and quick guide is also available at ‘www.radian.co.kr/en’ for downloading HR-503 AED (Device, bag included) HR-503 User Manual III.

  • Page 18: Aed Operation

    4.2.2 AED Operation 4.2.2.1 Press the power button to turn the AED on 4.2.2.2 Open the cover and set the adult/child mode Heart Guardian, HR-503 may be used for both adult and child. If it is hard to define the patient’s weight and age quickly, proceed further operation procedure with the default mode (adult mode) Adult Mode (Default) Above age of 8 or Minimum weight 25kg...
  • Page 19 * Additional models with different button function - Heart Guardian HR-503 Button Function - Adult mode select button(left) : Select if the patient is above age of 8 or minimum weight of 25kg. When selected, ‘adult mode indicating lamp’ will be turned on - Child mode select button(left) : Select if the patient is below age of 7 or maximum weight of 25kg.
  • Page 20 - Heart Guardian HR-503 B Button Function - Adult mode select button(left) : Select if the patient is above age of 8 or minimum weight of 25kg. When selected, ‘adult mode indicating lamp’ will be turned on - Child mode select button(left) : Select if the patient is below age of 7 or maximum weight of 25kg.
  • Page 21 Prepare the patient for AED operation 4.2.2.3 AED shall be placed right next to the patient. Remove clothing from the patient’s chest, and make sure the patient’s chest is clean and dry. Shaving hair may be necessary for better AED pads attachment Saving time is very important for sudden cardiac arrest patient Time shall not be wasted on taking off the clothes.
  • Page 22 4.2.2.5 ECG Analysis Once AED pads are clearly attached to the patient’s chest, AED starts ECG analysis for patient During ECG analysis, stay away from patient For accurate and safe ECG analysis, do not physically contact the patient during ECG analysis 4.2.2.6 Electric shock and CPR Once ECG analysis is completed, the AED operates as shown below...
  • Page 23 Be careful of electric shock Electric shock may be delivered to a person who is physically contacting with the patient. Before pushing the shock button, check and instruct others to stay away from the patient  When electric shock is not needed Audio guidance: ‘No shock is needed”...

  • Page 24: Data Management

    AED location and periodical maintenance 5.1.1 Please set AED at a place where AED can be easily detected and accessed. RADIAN strongly suggests setting AED close to a telephone in order to call emergency aid service immediately in case of an emergency 5.1.2 All components including P-503 electric pads shall be kept together...
  • Page 25 Place where is exposed to direct sunlight  Wet or flooded places  Near a heater or heavy electrical devices  Places where excessive shock or shake may occur  Near flammable materials   Places exposed to the extreme environmental weather condition 5.1.6 Battery and AED pads maintenance Battery maintenance ①...
  • Page 26  In the presence of hyperbaric oxygen tank (within 10m)  In the presence of hydrogen tank (within 10m) Do not use battery not provided by RADIAN RADIAN is not responsible for damage/malfunction in product operation caused by use of unofficial battery. Since use of...

  • Page 27: After First-Time Use

     If AED has delivered electric shocks at least over 3 times, and life time has expired (2 years from manufacturing date), RADIAN suggests replacing the battery to a new one. Suggested battery life is 4 years on standby mode 6 Troubleshooting 6.1 Self-diagnosis...

  • Page 28: Aed Conditional Alarm

    6.2 AED conditional alarm Indication Description Prompts the state of normal operation Prompts when error is found during operation Prompts the current state of battery Procedure LED guidance Guides the current CPR procedure Orange Blink Shock Button Light Prompts the state of preparation for electric Orange Blink shock...

  • Page 29: Troubleshooting

    Do not attempt to disassemble or repair the AED arbitrarily Do not attempt to disassemble the AED arbitrarily due to danger of electric shock hazard when high voltage is recharged. RADIAN is not responsible for electric shock resulted from unauthorized disassembly or attempt to...

  • Page 30: Technical Data

    7 Technical data 7.1 Physical characteristics Item Description Product Type Semi-automatic external defibrillator Dimensions 223.4(W) x 311.7(L) x 91.9(H)mm Weight 2.5kg (Including battery and pads) 7.2 Environmental characteristics Item Condition Detail Standby 0 ~ 40℃ (32 ~ 104℉) - Short-term* Temperature range (less than5 days) 0 ~ 40℃...

  • Page 31: Functionality

    7.3 Functionality Item Description The AED FFT ECG analysis system automatically FFT ECG Analysis analyzes the patient’s ECG and advises you when defibrillation is required Waveform Biphasic Truncated Exponential (BTE) 25Ω to 175Ω Impedance range Adult mode: 150J±10% Electric shock energy Child mode: 50J±10% 8 seconds from the initiation of charging to be available for discharge (with a new, fully charged battery;...

  • Page 32: P-503(Aed Pads)

    7.4 Applicable standards Type Description  General Safety and performance Shock Vibration Free fall drop Degree of Protection IEC 60529, IP54 (Particle and water ingress) 7.5 Characteristics of P-503 (AED Pads) Item Description Pre-gelled, self-adhesive, disposable, non-polarized Type defibrillation pads Shelf life 2 years Disposal...

  • Page 33: Bt-503 (Battery)

    7.6 Characteristics for BT-503 (Battery) Item Description Type Lithium Manganese Dioxide (LiMnO2) Output Voltage 12 VDC 4.2Ah Disposal Abide by regional/national regulations 4 years from date of manufacture Shelf life (can be reduced by temperature condition) 7.7 FFT ECG Analysis FFT ECG Analysis algorithm analyzes patient’s ECG efficiently and accurately to decide whether to deliver shocks to the patient and meets below requirements •...
  • Page 34 #1610, Halla-Sigma Valley, 53, Gasan Digital 2-ro Geumcheon-gu, Seoul, Korea +82-2-852-1122 Info@radian.co.kr www.radian.co.kr...
