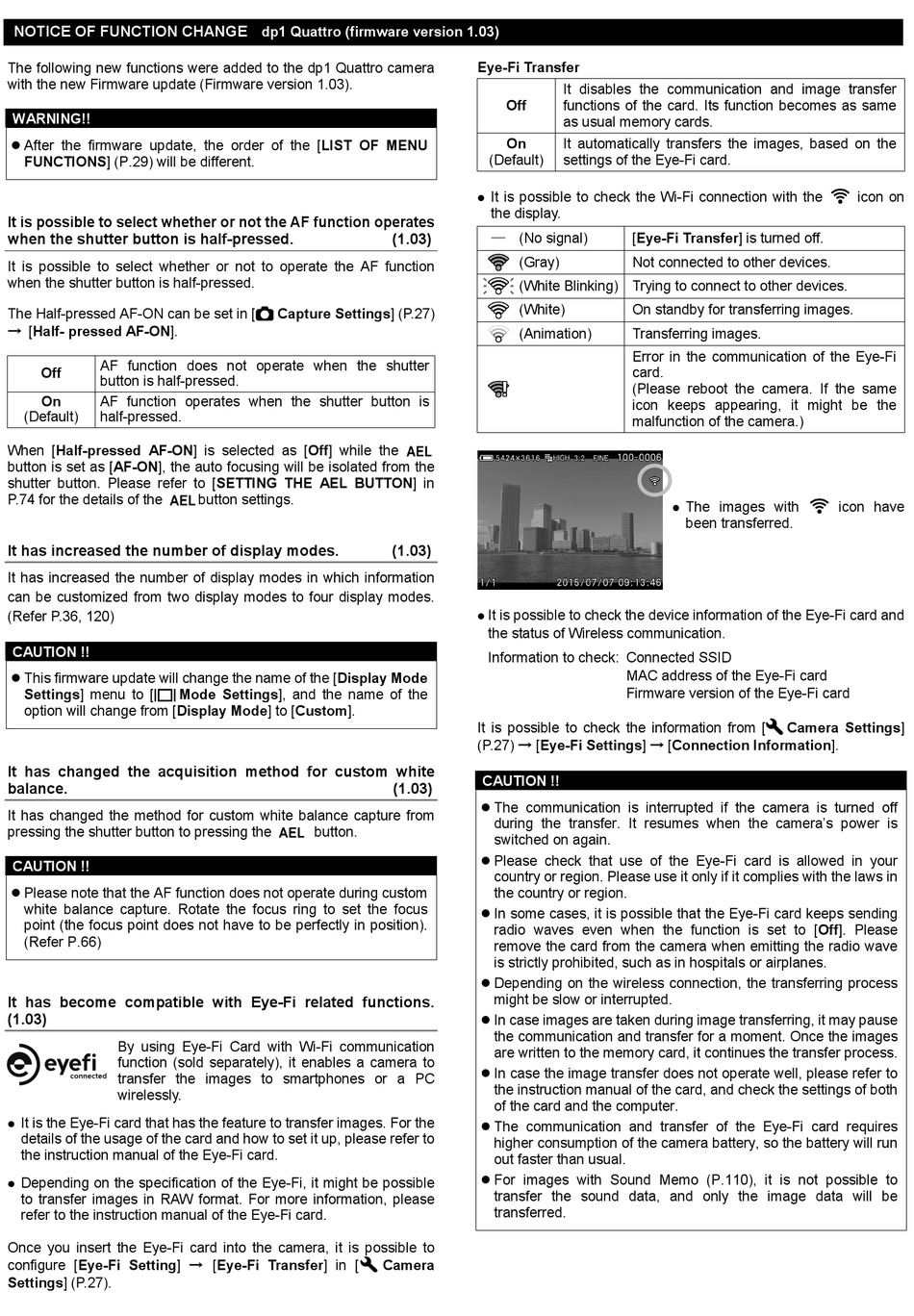

Sigma dp1 Quattro Notice Of Function Change

NOTICE OF FUNCTION CHANGE
The following new functions were added to the dp1 Quattro camera
with the new Firmware update (Firmware version 1.03).
WARNING!!
After the firmware update, the order of the [LIST OF MENU

FUNCTIONS] (P.29) will be different.
It is possible to select whether or not the AF function operates
when the shutter button is half-pressed.
It is possible to select whether or not to operate the AF function
when the shutter button is half-pressed.
The Half-pressed AF-ON can be set in [
→ [Half- pressed AF-ON].
AF function does not operate when the shutter
Off
button is half-pressed.
On AF function operates when the shutter button is
(Default) half-pressed.
When [Half-pressed AF-ON] is selected as [Off] while the
button is set as [AF-ON], the auto focusing will be isolated from the
shutter button. Please refer to [SETTING THE AEL BUTTON] in
P.74 for the details of the
It has increased the number of display modes.
It has increased the number of display modes in which information
can be customized from two display modes to four display modes.
(Refer P.36, 120)
CAUTION !!
This firmware update will change the name of the [Display Mode

Settings] menu to [ Mode Settings], and the name of the
option will change from [Display Mode] to [Custom].
It has changed the acquisition method for custom white
balance.
It has changed the method for custom white balance capture from
pressing the shutter button to pressing the
CAUTION !!
Please note that the AF function does not operate during custom

white balance capture. Rotate the focus ring to set the focus
point (the focus point does not have to be perfectly in position).
(Refer P.66)
It has become compatible with Eye-Fi related functions.
(1.03)
By using Eye-Fi Card with Wi-Fi communication
function (sold separately), it enables a camera to
transfer the images to smartphones or a PC
wirelessly.
It is the Eye-Fi card that has the feature to transfer images. For the

details of the usage of the card and how to set it up, please refer to
the instruction manual of the Eye-Fi card.
Depending on the specification of the Eye-Fi, it might be possible

to transfer images in RAW format. For more information, please
refer to the instruction manual of the Eye-Fi card.
Once you insert the Eye-Fi card into the camera, it is possible to
configure [Eye-Fi Setting] → [Eye-Fi Transfer] in [
Settings] (P.27).
dp1 Quattro (firmware version 1.03)
Capture Settings] (P.27)
button settings.
button.
Eye-Fi Transfer
Off
On
(Default)
It is possible to check the Wi-Fi connection with the

the display.
— (No signal)
(1.03)
(Gray)
(White Blinking) Trying to connect to other devices.
(White)
(Animation)
(1.03)
It is possible to check the device information of the Eye-Fi card and

the status of Wireless communication.
Information to check: Connected SSID
It is possible to check the information from [
(P.27) → [Eye-Fi Settings] → [Connection Information].
CAUTION !!
(1.03)
The communication is interrupted if the camera is turned off

during the transfer. It resumes when the camera's power is
switched on again.
Please check that use of the Eye-Fi card is allowed in your

country or region. Please use it only if it complies with the laws in
the country or region.
In some cases, it is possible that the Eye-Fi card keeps sending

radio waves even when the function is set to [Off]. Please
remove the card from the camera when emitting the radio wave
is strictly prohibited, such as in hospitals or airplanes.
Depending on the wireless connection, the transferring process

might be slow or interrupted.
In case images are taken during image transferring, it may pause

the communication and transfer for a moment. Once the images
are written to the memory card, it continues the transfer process.
In case the image transfer does not operate well, please refer to

the instruction manual of the card, and check the settings of both
of the card and the computer.
The communication and transfer of the Eye-Fi card requires

higher consumption of the camera battery, so the battery will run
out faster than usual.
For images with Sound Memo (P.110), it is not possible to

transfer the sound data, and only the image data will be
transferred.
Camera
It disables the communication and image transfer
functions of the card. Its function becomes as same
as usual memory cards.
It automatically transfers the images, based on the
settings of the Eye-Fi card.
[Eye-Fi Transfer] is turned off.
Not connected to other devices.
On standby for transferring images.
Transferring images.
Error in the communication of the Eye-Fi
card.
(Please reboot the camera. If the same
icon keeps appearing, it might be the
malfunction of the camera.)
The images with

been transferred.
MAC address of the Eye-Fi card
Firmware version of the Eye-Fi card
icon on
icon have
Camera Settings]
