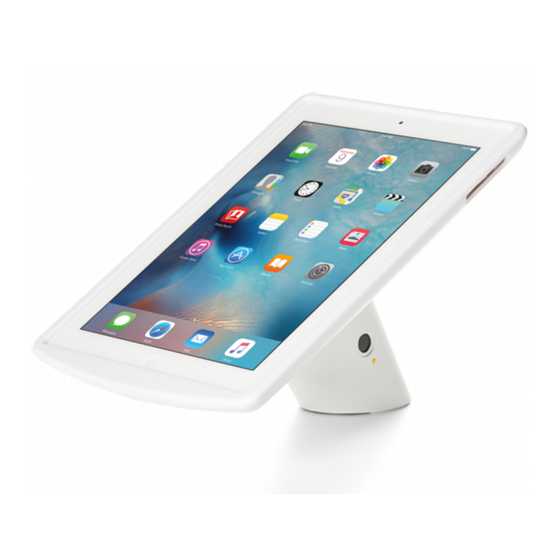

Premium Tablet Stand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inVue CT100

Summary of Contents for inVue CT100

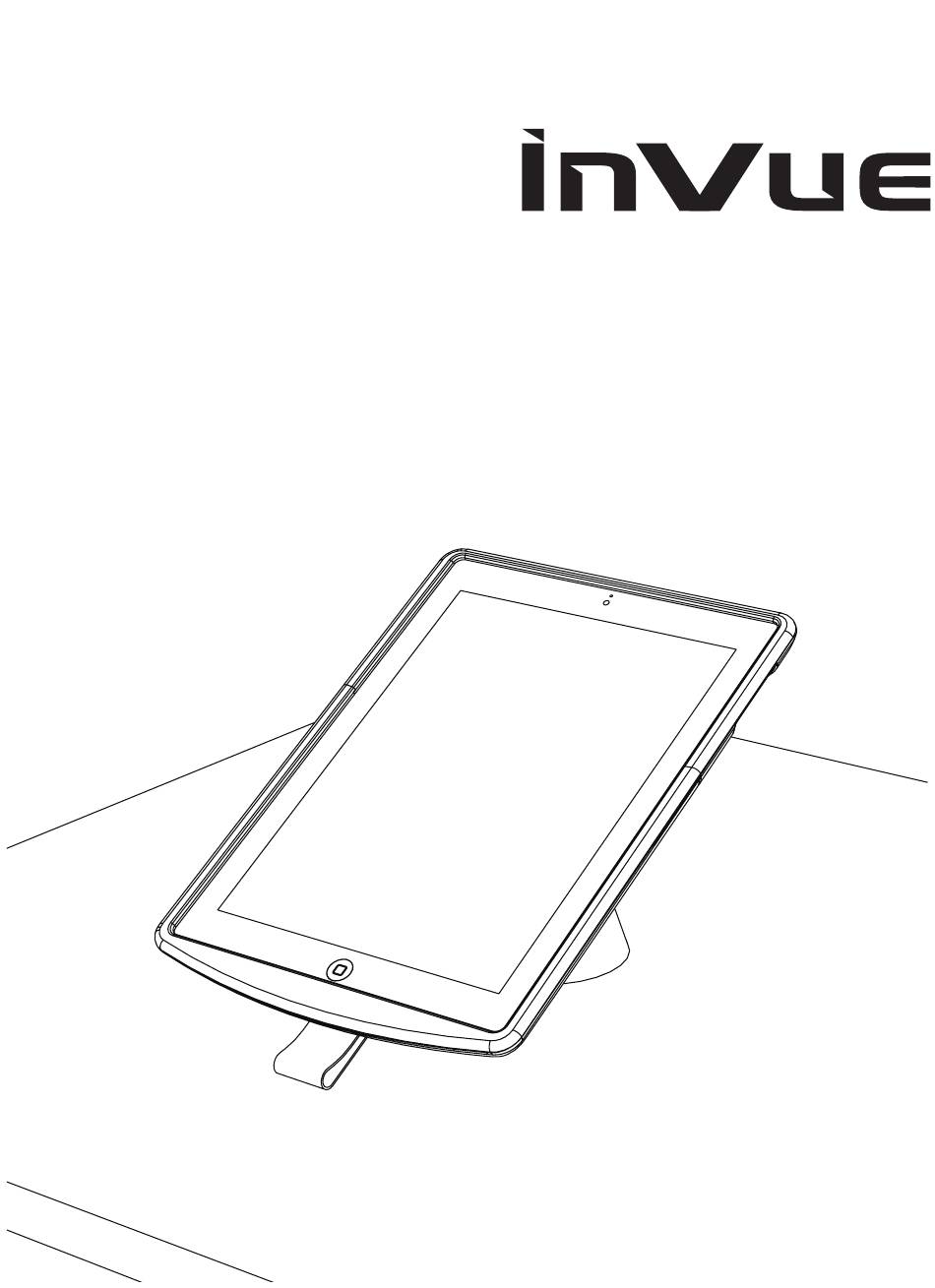

  • Page 1 CT100 Premium Tablet Stand...
  • Page 2 Overview Important! Read entire instruction guide before starting installation. Shroud System Components 1. Tablet Stand (CT100) 2. Shroud Tablet Stand 3. Power Connector CT100 4. OEM Power Supply 5. IR Key (AF4400 or PK4400) – To unlock shroud from stand...
  • Page 3 Drill a 19 mm (0.75”) hole in display counter. Wipe Plug power connector into merchandise. display counter with alcohol wipe provided. Let it dry completely.
  • Page 4 Slide tablet into bottom shroud. Slide top of shroud to Remove tab to activate battery. Remove both adhesive merchandise. Tighten both screws with TT15 bit. films on stand and slide cord and stand threaded post through hole. Press firmly for at least 10 seconds.
  • Page 5 Slide security washer and metal washer onto stand Snap shroud onto stand. You should hear a “beep.” below counter. Slide stand cord in opening of washer. Confirm shroud is fully engaged on all sides and is Loosely tighten washer. locked on stand by pulling on shroud.
  • Page 6 Confirm shroud is aligned correctly and straight with Plug power supply to OEM and plug into outlet. front of display counter. Fully tighten washer.
  • Page 7 Rotate shroud 90 degrees to display in landscape. Removing Shroud Place IR key onto IR lens on stand. Press button on IR key to release shroud from stand. Stand will re-lock automatically after 5 seconds.
  • Page 8 Removing Merchandise Frequently Asked Questions & Tips Remove both screws with TT15 bit. Lift up on handle to slide Q My merchandise is not powering up. shroud off and remove merchandise. A 1) Confirm correct power connector is being used for mer- chandise model.
  • Page 9 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +852.3127.6811 Latin America // +52.55.90003957 © 2014 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
