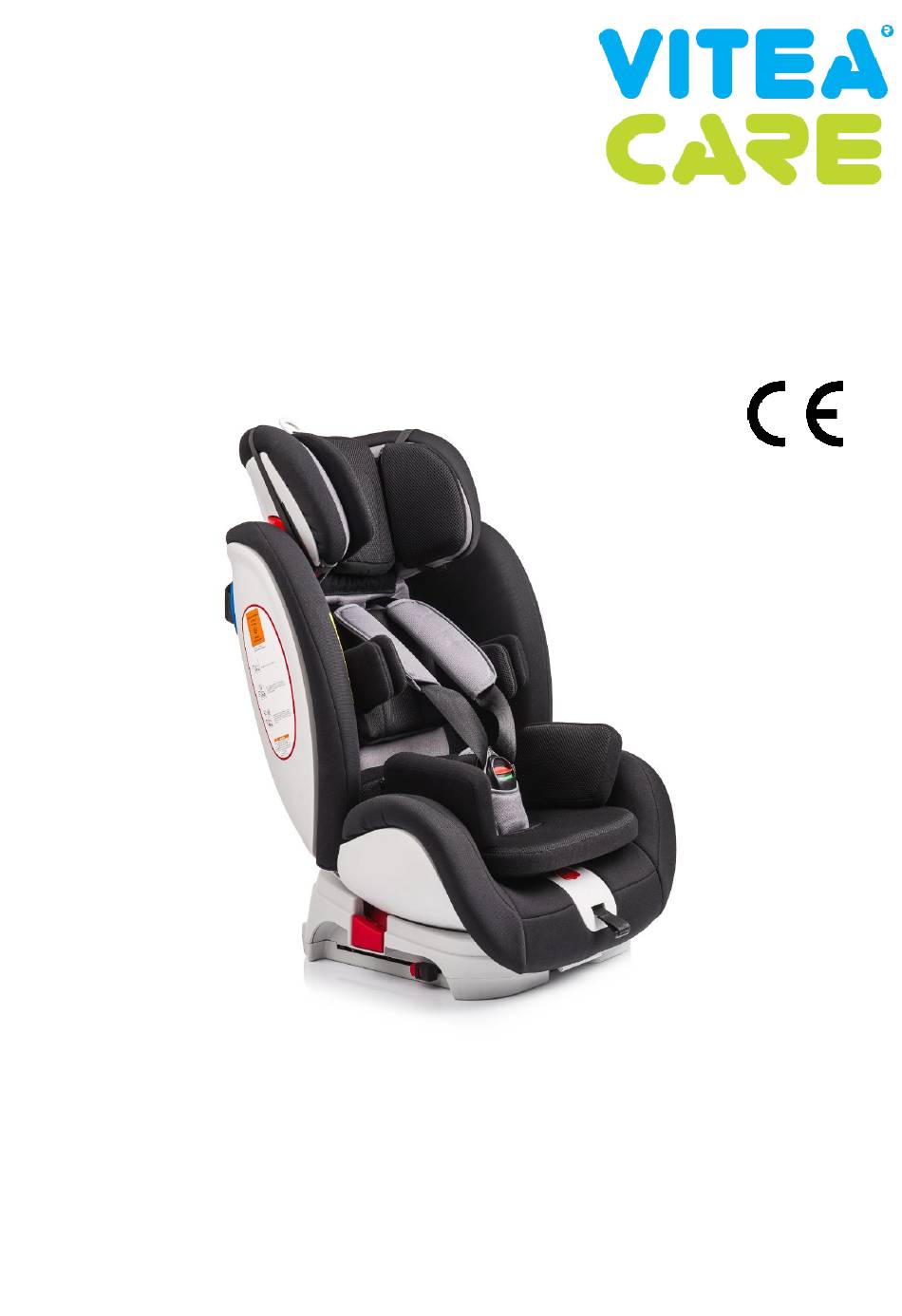

- Page 1 USER’S MANUAL Fun Baby Rehabilitative car seat DRVR0B Edition AM 09.2019...
-
Page 2: Table Of Contents
Table of contents Introduction ............................. 3 Product description .......................... 3 Indications ............................4 Contraindications ..........................5 Use ..............................5 Safety of use ..........................14 Everyday use and maintenance ..................... 15 Symbols ............................16 Contact details ..........................17 PLEASE READ CAREFULLY BEFORE USING WHOLE OF INSTRUCTIONS... -
Page 3: Introduction
1. Introduction Thank you for choosing our product. We are deeply convinced that it will meet your expectations. Please read this document before first use. This manual is passed in order to provide the necessary information for the safe use of the device. The correct application of the recommendations will contribute significantly to extend the durability and aesthetics of the product. -
Page 4: Indications
13. Crotch pad 14. Belt length adjustment button Illustration 2. 15. Headrest height adjustment button 16. Blue guide slot 17. Upper fastening belt 18. Belt adjuster 19. Metal buckle 20. Rotate the handle 21. FIX button 3. Indications The rehabilitation children car seat “Fun Baby” is designed for the transport of children with special needs in vehicles. -
Page 5: Contraindications
4. Contraindications Conditions requiring stabilization and support of the lower limbs. 5. Use • After unpacking the box, check if it contains all parts in accordance with the list of elements set out above. • Ensure that all components have no visible damage. If any doubts, please contact the manufacturer. - Page 6 5.2. ADJUST THE SHOULDER SSRAP AND HEADREST WHEN THE BABY USING 5- POINT HARNESS (GROUP 0+, I). • Press the central adjuster (4) to pull up the two shoulder straps (5) at the same time. Please do not pull the shoulder pad (6) and release the 5-point belt to a longer position as far as possible (Illustration 6.).
- Page 7 5.4. BABY CAR SEAT RECLINING ADJUSTMENT (GROUP I, II, III) • Press the adjustment handle (11) in direction of the arrow. Let the chair body (12) in an unlocked state so the seat body (12) can be adjusted slide to a suitable position, release the adjustment handle (11), the chair is automatically locked again (Illustration 10.).
- Page 8 the "tick" sound, the FIX indicator turns green, then push the safety seat completely fits the car seat. Attention: FIX connector correct installation only if the FXI indicator is completely turn to green. 4. Please pull out the vehicle three-point seat belt, let vehicle belly strap passes through under the cushion pad slot (Illustration 14-A), and then pass the car seat belt through the back of two guide grooves together (Illustration 14-B) then insert into seat belt slot (Illustration 12-C).
- Page 9 16-A 16-C 16-B 7． Press the button of top tether releasing the top tether to the appropriate length (Illustration 17.) 8. Please hook the top tether to the recommended fixing points. Please find the logo out in your vehicle or Consult to your vehicle vendor. 9．...
- Page 10 2． Ensure the 5-point harness is properly disassembled. 3． Refer to section 5.3 to adjust your headrest. 4． Refer to section 5.4 to adjust the chair body and confirm the lock status (can't slide). 5． Refer to section 5.5 to adjust the chair body and confirm the lock status (can’t rotate). 6．...
- Page 11 Illustration 21. Illustration 22. 5-POINT HARNESS DISASSEMBLY 1． Press the central regulator (4) while pulling down the two shoulder straps (5). Please do not pull the shoulder pad, Try to release the five-point seat belt to a longer position (Illustration 23.). 2．...
- Page 12 5-point harness Installation 1. Note: The seat shoulder straps and the five-point harness are two different holes, one is 0+ group, the other group I II III. Please select hole according to actual need (Illustration 34A). 2. Lead the buckle ribbon through the slot pad and install the metal buckle (Illustration 35.). 3.
- Page 13 cannot be twisted (Illustration 36.). 4. Insert the removed shoulder strap (Illustration 37.) through the fixed slot on each side of the seat. 5. Snap two metal buckles and insert the clip (Illustration 38.). Attention: Make sure strap can not be twisted. 6.
-
Page 14: Safety Of Use
Assembly and Disassembly fabric cover The fabric cover of child safety seat can be disassembled and cleaned, please read the contents of the washing mark on the fabric cover. Fabric disassembly: 1． Pull upward the headrest to highest position. 2． Take off headrest fabric cover. 3．... -
Page 15: Everyday Use And Maintenance
safety of the child. f) The seat can be installed in vehicles approved by the UN/ECE (Regulation No 16) or other relevant regulations. g) Rigid items and plastic parts of a child restraint must be located and installed in such a way so that, under normal operating conditions of the vehicle, they cannot be trapped or jammed by a sliding seat, a door, etc. -
Page 16: Symbols
8. Symbols Confirmation of compliance with EU standards Manufacturer Date of production Read the user's manual Warning Catalog number Serial number Protect from humidity Protect from sunlight Permitted user weight... -
Page 17: Contact Details
9. Contact details mdh sp. z o.o. 22/24 ks. W. Tymienieckiego Street 90-349 Łódź, Poland tel. +48 42 674 83 84 fax. +48 42 636 52 21 www.mdh.pl www.viteacare.com...
