B-K lighting ArtiStar Series Quick Start Manual page 3

with

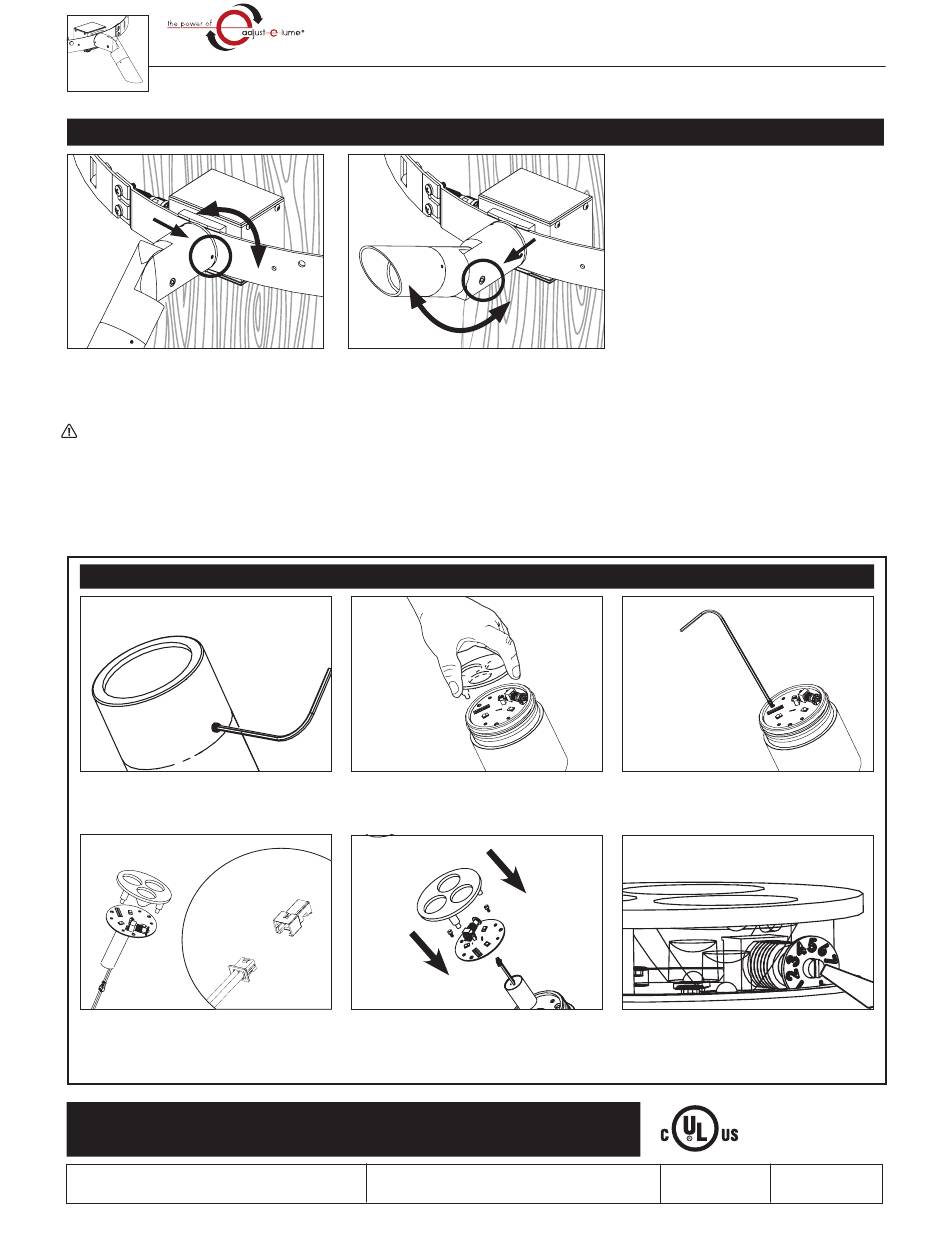

Standard Installation
ArtiStar™ Knuckle
1. Use 5/64" Allen wrench to loosen (3) #8-32
stainless steel set screws on fixture base. Rotate
fixture at base and aim fixture to desired
horizontal location, then tighten screw.
Warning: Do not over tighten set screw.
Doing so will compromise O-ring seal and will
void warranty.
RE-PLACING LED BOARD/DRIVER AND OPTICS
1. Use 5/64" Allen wrench to loosen #8-32
stainless set screw and remove cap.
4. Disengage LED board and driver assembly.
Replace with new board and driver assembly.
