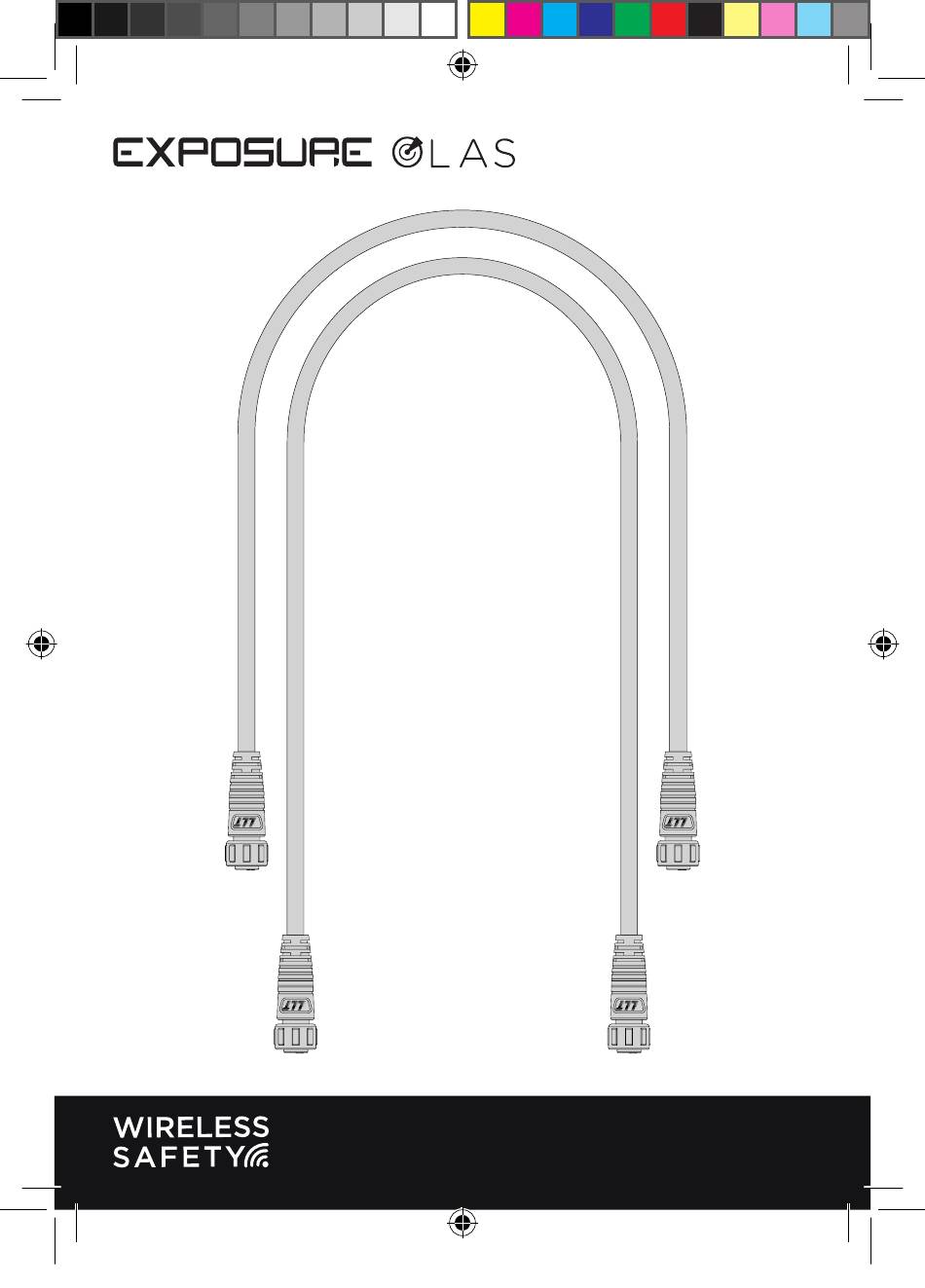

- Page 1 EXPUG2 OLAS GUARDIAN EXTENSION CABLES EXPUG24.indd 1 EXPUG24.indd 1 11/03/2020 12:22 11/03/2020 12:22...
- Page 2 WIRING DIAGRAM Switch 6 pin Extension Cable Length:750mm / 29.5 inch Power 5 pin Extension Cable Length: 750mm / 29.5 inch 750±20 47.5mm 46.2mm Switch M12-Male M12-Female 750±20 47.5mm 46.2mm Power M12-Male M12-Female Power Ground Switch Extender Power Extender Fig. 1 The Guardian Extension cable set can be used to extend the distance by 750mm / 29.5 inches for either the Power cable, the Switch cable or both.
- Page 3 INITIAL SETUP CHECK Once the Guardian has been setup and an OLAS transmitter has been connected always CHECK BEFORE FIRST USE. 1. Run the engine in idle and place the OLAS transmitter at least 4 inches into open water (a cup or bucket will not be enough!) or switch off its Bluetooth transmission.
- Page 4 DISCLAIMER and the LIMITATION OF LIABILITY statement WARNING and WARRANTY Exposure Lights / Ultimate Sports Engineering Ltd. accept no liability for any injuries or other damages arising from the use of their product in any circumstances.
