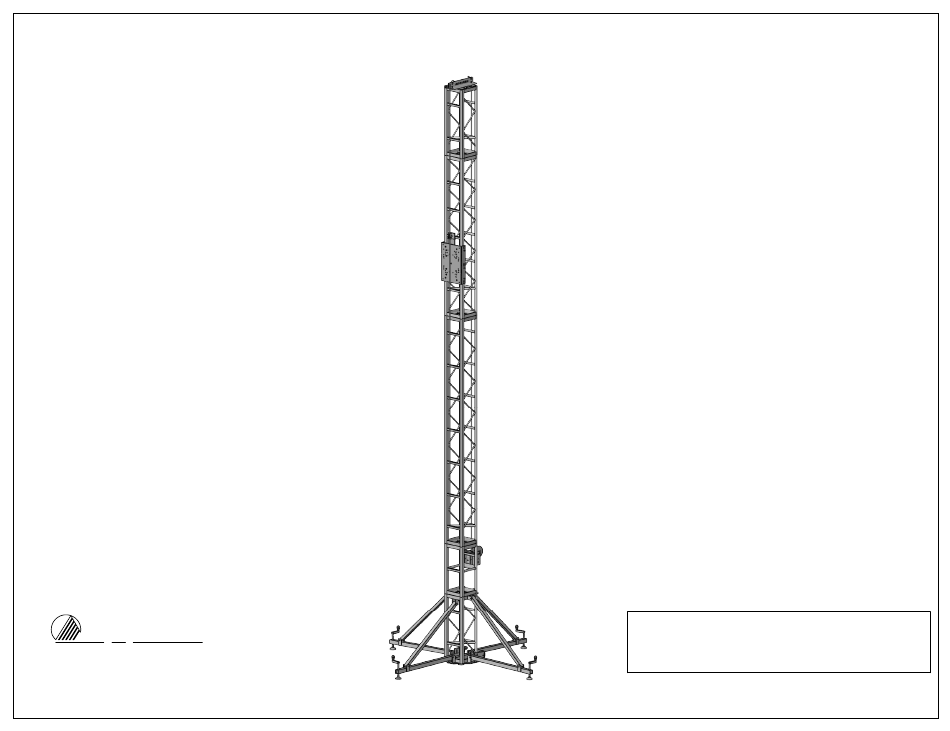

- Page 1 L-25 MINI TOWER INSTRUCTIONS Applied ATTENTION! Truss Electronics 1200 lb WEIGHT LIMIT 722 Blue Crab Road Newport News, VA 23606 757.591.9371 / fax 757.591.9514 www.appliednn.com REVISED: 10/24/2017 PROUDLY MADE IN THE U.S.A.
-
Page 2: Mini Tower Instructions
L-25 MINI TOWER INSTRUCTIONS BILL OF GOODS QTY: (1) 25' L-25 Mini Tower (1) HINGED BASE ASSEMBLY (1) 10’ TOWER TRUSS (1) 7’ TOWER TRUSS (1) 3’ TOWER TRUSS (1) HEAD BLOCK (1) SLIDE BLOCK (4) LEGS W/ FOOT LEVELER ASSEMBLY... - Page 3 L-25 MINI TOWER PARTS SHEETS / PER TOWER X 53 X 61 X 45 3/8 FLAT 3/8 x 1 1/4" FLANGE NUTS T-PINS WASHERS HEXHEAD Safety Bar MT-25-SAFETY 3/8 x 3 1/2" Head Block 1/2 FLAT 1/2 NUT HEXHEAD MT-25-HB 1/2 x 4 1/2"...
-
Page 4: Step#1 Base Assembly
L-25 MINI TOWER INSTRUCTIONS STEP#1 BASE ASSEMBLY A) Assemble 4 legs to hinged base assembly with (4) 3/8-16 x 3 1/2 grade 5 bolts using (2) flat washers and (1) nut for each. Applied B) Assemble a leg brace to each of the legs using a 3/8-16 x 3 1/2 grade 5 bolt and (2) flat washers and (1) nut for each. - Page 5 L-25 MINI TOWER STEP#2 INSTRUCTIONS WINCH & TOWER ASSEMBLY A) Attach winch using (5) 3/8-16 x 1 1/4 grade 5 bolts using (1) flat washer and (1) nut for each. B) Wind the cable onto the winch paying close attention that the cable does not cross itself.
-
Page 6: Step#3 Tower Assembly
L-25 MINI TOWER STEP#3 INSTRUCTIONS TOWER ASSEMBLY A) Attach the tower sections and the head block using the required grade 5 3/8-16 x 1 1/4 bolts and (1) flat washer and (1) nut for each. B) Attach the slide block to the assembled tower. - Page 7 L-25 MINI TOWER STEP#4 INSTRUCTIONS ATTACH CABLE & RAISE TOWER A) Unwrap the cable and feed it around the head block (remove and replace retaining pins above the pulleys) and connect to the slide block aligning the thimble between the angles and inserting the clevis pin.
- Page 8 L-25 MINI TOWER STEP#5 INSTRUCTIONS Secure Tower Check List 1) Tower should be standing erect and level 2) All outriggers attached to base and 3 outrigger braces secured to tower. 3) The winch attached to tower. 4) The cable routed thru head block (pins reinstalled...
- Page 9 L-25 MINI TOWER STEP#6 INSTRUCTIONS Raising The Structure Note: Each winch must have a MINIMUM of 300 lbs of load to work properly. Each winch on each tower must be cranked in unison to prevent binding. A) With structure attached, (minimum of 300 lbs each winch) raise to a height that will...
- Page 10 L-25 MINI TOWER STEP#7 INSTRUCTIONS Safety Bar 1/2" washer 1/2" washer 1/2" bolt 1/2" nut Safety bar Slide block A) After your system is at the required height, the safety bar should be set on each tower. This is accomplished by using the ladder side of the tower to reach the trim height of the system and tighten the bar as shown.
