- Page 1 LA16-30 / LA16-35 TOWER INSTRUCTIONS Applied ATTENTION! Truss and Electronics 2200 lb WEIGHT LIMIT 722 Blue Crab Road Newport News, VA 23606 757.591.9371 / fax 757.591.9514 www.appliednn.com REVISED: 02Oct19 PROUDLY MADE IN THE U.S.A.
- Page 2 LA16-30 / LA16-35 TOWER INSTRUCTIONS BILL OF GOODS BILL OF GOODS QTY: (2) 16” LA1635 Towers QTY: (2) 16” LA1630 Towers (2) V-BASES (2) V-BASES (2) HINGE SECTIONS (2) HINGE SECTIONS (6) 10’ 16IN TOWER TRUSS (TOWERS) (4) 10’ 16IN TOWER TRUSS (TOWERS) (2) HEAD BLOCKS (2) 5’...
- Page 3 MOTOR SUPPORT LEVELING JACK LA-MS JACK 91-027S 91-027L LIFTING LADDER LA-16-LL LEG PLATE LA-16-LP Applied Truss and Electronics 722 Blue Crab Road Newport News, VA 23606 V-BASE 757.591.9371 / fax 757.591.9514 LA-16-VB www.appliednn.com REVISED: 02Oct19 PROUDLY MADE IN THE U.S.A.
- Page 4 LA16-35 TOWER PARTS SHEETS / PER TOWER X 48 X 12 TOWER 5/8HDRW BRACKET LA-16-TB 91-307 LEG BRACKET LA-16-LB LEVELING JACK TUBE LA-16-LJT LEVELING MOTOR SUPPORT JACK LA-MS LEVELING 91-027S JACK 91-027L LIFTING LADDER LA-16-LL LEG PLATE LA-16-LP Applied Truss and Electronics...
-
Page 5: Step#1 Base Assembly
LA16-30 / LA16-35 TOWER INSTRUCTIONS STEP#1 BASE ASSEMBLY PARTS - (PER TOWER) (1) V-BASE (10) LEVELING JACKS > (6) LONG > (4) SHORT (2) LEG PLATES (2) LEG TRUSS SECTIONS (16IN HD BOX 10FT LENGTH) (2) LEG TRUSS SECTIONS (16IN HD BOX 8FT LENGTH) -
Page 6: Step#2 Tower Assembly
LA16-30 / LA16-35 TOWER INSTRUCTIONS STEP#2 TOWER ASSEMBLY PARTS - (PER TOWER) (1) TOWER HINGE SPIGOTED TOWER TRUSSES (3) TOWER TRUSS (1) HEAD BLOCK (2) TOWER BRACKET LA16-30 has 5' TOWER HINGE TOWER TRUSSES LA16-35 has 10' LARGER HEAD BLOCK DISTANCE... - Page 7 LA16-30 / LA16-35 TOWER TOWER LIFTING INSTRUCTIONS LADDER STEP#3 ATTACHING TOWER LIFTING LADDER A) PIN TOWER LIFTING LADDER TO THE V-BASE. B) ATTACH TOWER BRACES TO THE TOP SPIGOTS OF THE TOWER LIFTING LADDER. C) PIN THE TOWER BRACES BOTTOM SPIGOTS TO THE MALE...
- Page 8 LA16-30 / LA16-35 TOWER INSTRUCTIONS STEP #4 RIGGING TO RAISE TOWER A) RIG MOTOR TO V-BASE. B) FEED CHAIN OVER THE WHEEL AT THE TOP OF THE TOWER LIFTING LADDER. C) LAY CHAIN ALONG THE TOWER AND RUN CHAIN OVER BOTH WHEELS OF THE HEAD BLOCK.

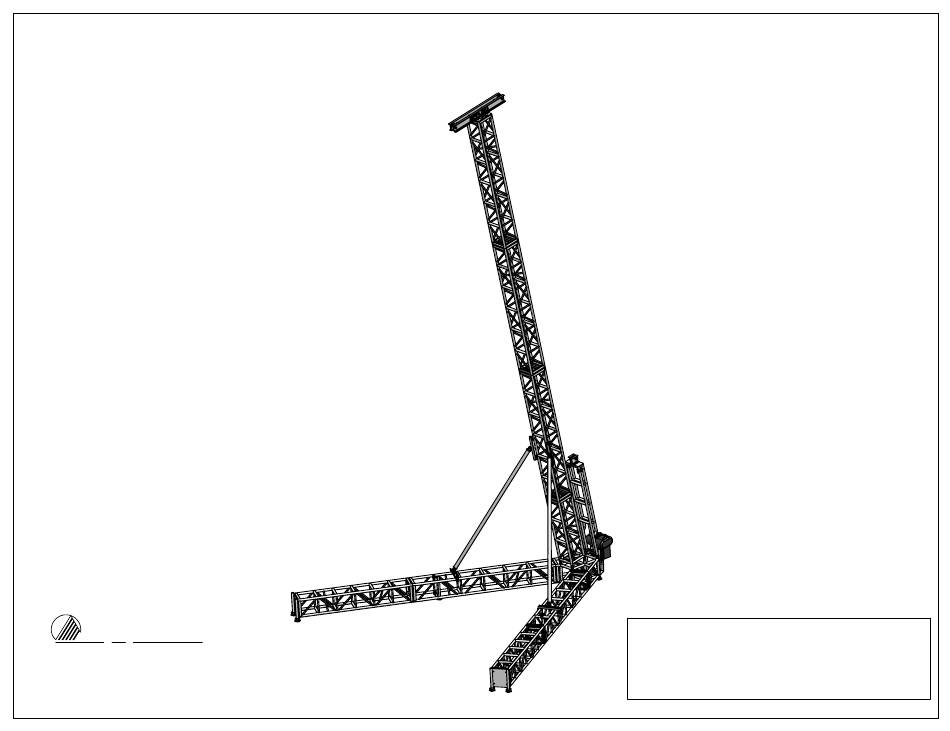

- Page 9 LA16-30 / LA16-35 TOWER INSTRUCTIONS STEP#5 RAISING & BRACING TOWER DOUBLE CHECK ALL CONNECTORS AND CLAMPS BEFORE PROCEEDING! A) ENGAGE MOTOR TO RAISE TOWER. CAUTION: TAKE NOTICE OF TOWER KICK BACK B) PIN REMAINING SPIGOTS AT TOWER BASE. C) UNPIN TOP OF TOWER BRACES FROM THE LIFTING LADDER.
- Page 10 LA16-30 / LA16-35 TOWER INSTRUCTIONS STEP#6 FLYING LINE ARRAY SPEAKERS A) APPLY BALLAST PER ENGINEERING DATA. B) DISCONNECT CHAIN HOOK FROM TOWER. C) CHECK THAT CHAIN ROLLS SMOOTHLY OVER HEAD BLOCK. D) CONNECT CHAIN HOOK TO LINE ARRAY SPEAKER FRAME.
- Page 11 LA16-30 / LA16-35 TOWER INSTRUCTIONS STEP#7 INSTALLATION OF OPTIONAL SUBWOOFER DECK IF DECK LEGS ARE USED, ENSURE DECK FRAME RESTS ON THE TRUSS CHORDS Applied Truss and Electronics 722 Blue Crab Road Newport News, VA 23606 757.591.9371 / fax 757.591.9514 www.appliednn.com...
