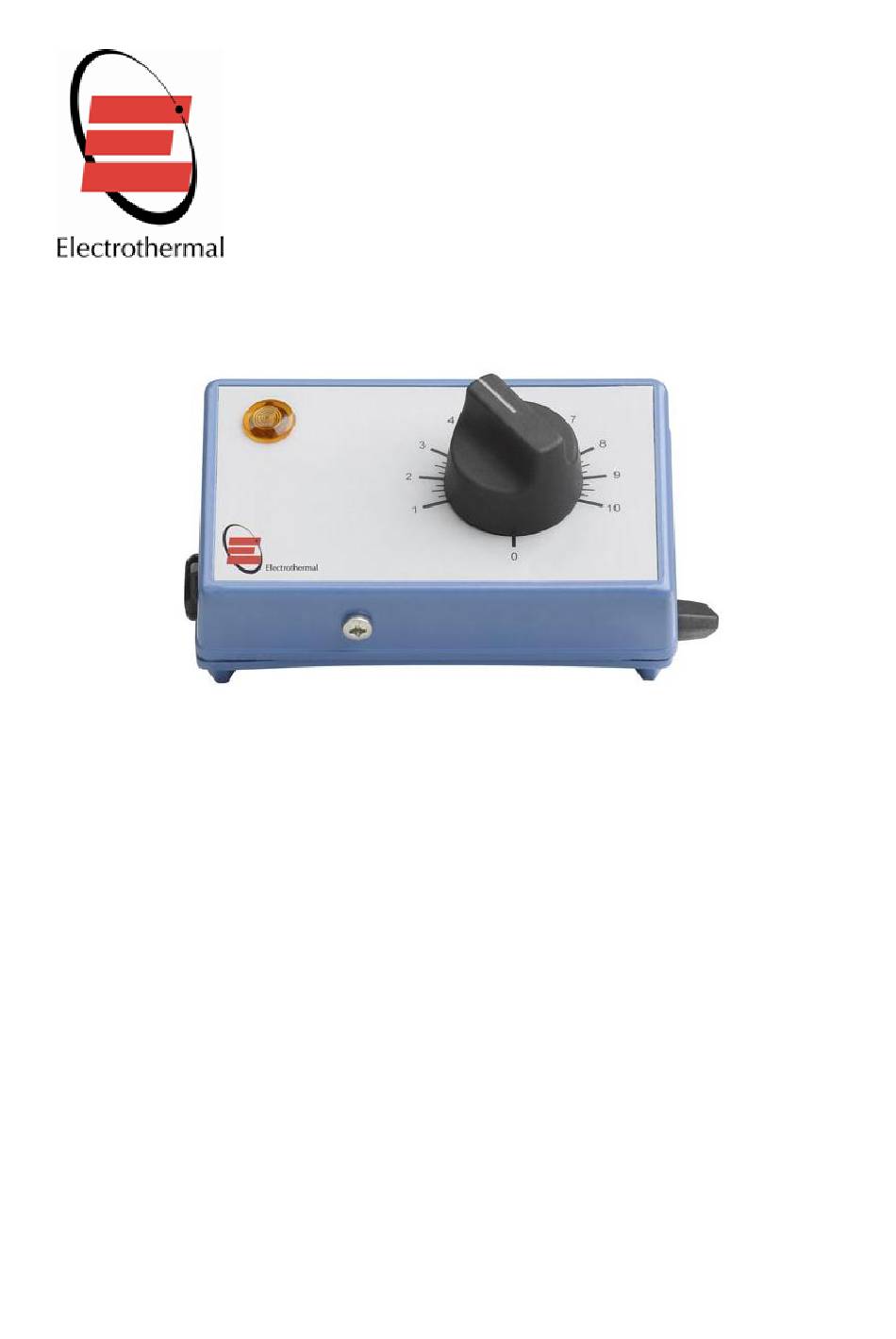

MC227 & MC228X1 CONTROLLER
INSTRUCTION BOOK
Page 1 of 20
M7759 Issue 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC227 and is the answer not in the manual?

Questions and answers

Related Manuals for Electrothermal MC227

Summary of Contents for Electrothermal MC227

  • Page 1 MC227 & MC228X1 CONTROLLER INSTRUCTION BOOK Page 1 of 20 M7759 Issue 3.0...

  • Page 2: Table Of Contents

    © The copyright of this instruction book is the property of Electrothermal. This instruction book is supplied by Electrothermal on the express understanding that it is to be used solely for the purpose for which it is supplied. It may not be copied, used or disclosed to others in whole or part for any purpose except as authorised in writing by Electrothermal.

  • Page 3: Introduction

    1. INTRODUCTION: 1.1. MC227 is a 230V~AC controller. The MC228x1 is a controller 115V~AC. 1.2. This series of Power controllers have been designed to regulate the power input to laboratory heating equipment. These controllers can be mounted on a standard ½” (12mm) dia scaffold or retort stand, they can also be wall mounted using mounting bracket or stand directly on the bench.

  • Page 4: Symbols And Using This Instruction Book

    2. SYMBOLS AND USING THIS INSTRUCTION BOOK. 2.1. Throughout this Instruction book the following symbols are shown to identify conditions which pose a hazard to the user, or to identify actions that should be observed. These symbols are also shown on the product, or its packaging. When a symbol is shown next to a paragraph or statement it is recommended the user takes particular note of that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or other people.

  • Page 5: Safety Information

    3. SAFETY INFORMATION This product has been designed for safe operation when used as detailed in accordance with the manufactures instructions. NOTE: Failure to use this equipment in accordance with the manufactures operating instructions may compromise your basic safety protection afforded by the equipment and may invalidate the warranty / guarantee.
  • Page 6 To prevent electronic overheat and potential fire Do not cover this product when connected to the mains power supply. It is not recommended to leave any heating apparatus unattended during operation. Only use Original Equipment manufacture’s spares and accessories. Ref Section 10. The equipment is not spark, flame or explosion proof and has not been designed for use in hazardous areas in terms of BSEN 60079-14:1997.

  • Page 7: Unpacking And Contents

    4. UNPACKING AND CONTENTS. 4.1. Please check the contents of your carton against the diagram. (Please note MC227 & MC228X1x1 has a hard wired input). Contents. Item Description MC227 & MC228X1 Control unit Moulded mains cord and plug set. (Input) Lead may be different to illustration.

  • Page 8: Installation

    5. INSTALLATION 5.1. Electrical safety and installation. 5.2. This equipment is designed to safe under the following conditions:-  Indoor use.  Altitude up to 2000 meters.  Temperatures between 5C and 40C.  Maximum relative humidity 80% for temperatures up to 31C decreasing linearly to 50% relative humidity at 40C.

  • Page 9: Environmental Protection

    Electrothermal products, or you may copy and enlarge from ‘Appendix A’ of the instruction book. Electrothermal is registered as Electrothermal Engineering Limited with the Environment Agency as a producer of WEEE through an authorised compliance scheme.

  • Page 10: Product Operation

    7. EQUIPMENT OPERATION. 7.1. The illustrations below show detailed layout of the MC227 & MC228X1 control unit. 230V illustration Mains Input socket. Earth continuity test point Controlled appliance heaters on neon lamp. (Amber). Regulator control knob. Mains output – connection to appliance Refer to instructions book.
  • Page 11 7.3. Connect to the mains electricity supply. 7.4. Switch the controller on by turning the regulator control knob clockwise to increase power. The amber neon lamp on the controller will pulsate to show that power is being supplied to the mantel, heating tape or cord etc. The frequency of the pulse will increase as the regulator control knob setting is increased.

  • Page 12: Technical Specification

    8. TECHNICAL SPECIFICATION. 8.1. Specifications. Mains supply voltage 230V~AC 50/60 Hz Mains supply voltage MC227 & 115V~AC 50/60 Hz MC228x1 230V – 2.3kW Maximum coupled power consumption MC227 MC228x1 115V – 1.1kW Controller power consumption <1 Watt. Fuse rating at 230V...

  • Page 13: Maintenance

    Routine cleaning of the equipment should be undertaken using a clean cloth. DO NOT USE SOLVENTS FOR CLEANING ANY PART OF THIS EQUIPMENT. 9.2. Replacing controller fuse. MC227 & MC228X1X1   Unscrew the fuse holder cap from the fuse housing and remove the fuse.
  • Page 14 9.3. Spillage and Decontamination. In the event of spillage switch off and unplug this product from the mains electrical supply. Wipe off all excess liquid from the product and surrounding area using an absorbent soft cloth. Allow sufficient time for any ingressed liquid to evaporate before commencing with use. If in doubt please consult Customer Support.

  • Page 15: Customer Support

    10. CUSTOMER SUPPORT For help and support in using this product, please contact at the following address. Electrothermal. Electrothermal House. Unit12A, Purdeys Way. Purdeys Industrial Estate. Rochford, Essex. SS4 1ND Great Britain. Tel +44(0)1702 303350 Fax+44(0)1702 468731 E-Mail: info@electrothermal.com Page 15 of 20...

  • Page 16: Spares And Accessories

    11. SPARES AND ACCESSORIES. Order Number Description. Neon (230V) Amber M5608 Neon (115V) Amber M5620 Fuse (230V) F10A AZ9034 Fuse (115V) F10A AZ9034 Energy Regulator (230V) SA58121 Energy Regulator (115V) SA133211 AZ6704 Mounting Bracket Kit Mains cord and moulded IEC plug and lead AZ9165 set (UK) 230V ~ AC Mains cord and moulded IEC plug and...
  • Page 17 APPENDIX ‘A’. DECONTAMINATION CERTIFICATE. Electrothermal. Electrothermal House. Unit12A, Purdeys Way. Purdeys Industrial Estate. Rochford. Essex. SS4 1ND. Great Britain Phone:+44(0)1702 303350 Fax:+44(0)1702 468731. E-mail: info@electrothermal.com DECONTAMINATION CLEARANCE CERTIFICATE For the Inspection, Repair or Return of Medical, Laboratory or Industrial Equipment.

  • Page 18: Notes

    12. NOTES. Page 18 of 20 M7759 Issue 3.0...
  • Page 19 Page 19 of 20 M7759 Issue 3.0...

  • Page 20: Ec Declaration Of Conformity

    For the America’s and Canada, contact: Techne Incorporated, 3 Terri Lane, Suite 10 Burlington, NJ 08016 USA. Toll free:800-225-9243Tel: 609-589-2560 Fax: 609-589-2571 Email: labproducts@techneusa.com Http www.techneusa.com  2011 Electrothermal. All rights reserved. Printed in Great Britain Page 20 of 20 M7759 Issue 3.0...

This manual is also suitable for:

Mc228x1
