Woodline BELOW DECK MOUNT Assembly Instructions

Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
Centre Pole Tube
Rope Lock Stand
4 x M10 x 20
4 x M10 x 20
button head screws
button head screws
BELOW DECK MOUNT
ASSEMBLY INSTRUCTIONS
Pavone Spigot
Picollo Spigot
4 x M10 x 20
4 x M10 x 20
button head screws
button head screws
Item Code: 00000
1 x DECK PLATE TOP
Item Code: 00000
4 x M10 x 75 BOLT
Item Code: 0000
4 x OVERSIZE WASHERS
Item Code: 00000
Pendulum Spigot
4 x M10 x 20
button head screws
1 x BASE PLATE
BELOW DECK MOUNT 11/12/17

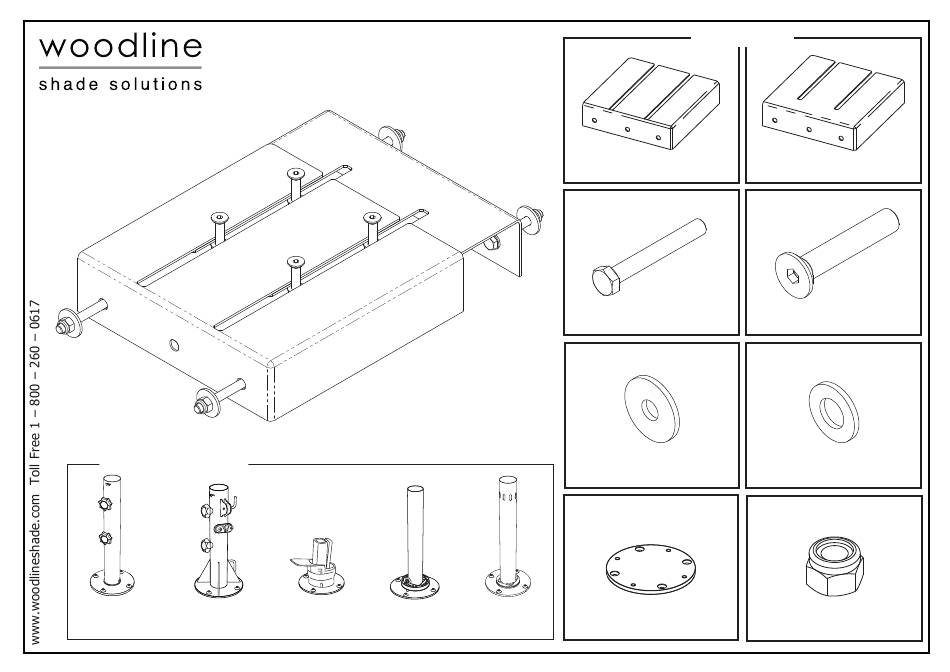

PARTS LIST

Item Code: 00000
1 x DECK PLATE BOTTOM
Item Code: 0000
4 x M10 x 55 COUNTER SUNK
BOLTS
Item Code: 00000
8 x M10 NORMAL WASHERS
Item Code: 00000
8 x M10 LOCK NUT
1/4
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BELOW DECK MOUNT and is the answer not in the manual?

Questions and answers

Related Manuals for Woodline BELOW DECK MOUNT

Summary of Contents for Woodline BELOW DECK MOUNT

  • Page 1 BELOW DECK MOUNT 11/12/17 PARTS LIST Item Code: 00000 Item Code: 00000 BELOW DECK MOUNT ASSEMBLY INSTRUCTIONS 1 x DECK PLATE TOP 1 x DECK PLATE BOTTOM Item Code: 00000 Item Code: 0000 4 x M10 x 55 COUNTER SUNK...
  • Page 2 BELOW DECK MOUNT 11/12/17 STEP 1 POSITION TOP DECK PLATE BRACKET AT DESIRED LOCATION AGAINST DECK BEAM AND BOTTOM OF DECK FLOOR. USE G-CLAMPS TO HOLD PLATE IN POSITION. MARK WHERE TO DRILL HOLES AND THEN FASTEN M10 X 75 BOLTS AS ILLUSTRATED.
  • Page 3 BELOW DECK MOUNT 11/12/17 STEP 5 B B A A S S E E P P L L A A T T E E C C A A N N B B E E U U S S E E D D T T O O M M A A R R K K D D R R I I L L L L H H O O L L E E P P O O S S I I T T I I O O N N S S F F R R O O M M B B E E L L O O W W O O R R F F R R O O M M A A B B O O V V E E ( ( C C A A N N B B E E D D O O N N E E F F R R O O M M A A B B O O V V E E I I F F T T H H E E S S L L O O T T D D I I R R E E C C T T I I O O N N S S A A R R E E V V I I S S I I B B L L E E A A N N D D T T H H E E H H O O L L E E S S C C A A N N B B E E C C E E N N T T E E R R E E D D A A B B O O V V E E T T H H E E S S L L O O T T S S .
  • Page 4 BELOW DECK MOUNT 11/12/17 STEP 8 454 mm 17.87 " 454 mm 17.87 " & & TUBE ATTACHMENTS Centre Pole Tube Rope Lock Stand Pavone Spigot Picollo Spigot Pendulum Spigot 4 x M10 x 20 4 x M10 x 20...
