Woodline PICOLLO EURO Owner's Manual

PICOLLO EURO
(WOOD & ALUMINUM)
1
2
4
5
3
6
9
7
10
8
Distributor:
Shadescapes Americas
TEL: 970.527.7070
www.shadescapesamericas.com
info@shadescapesusa.com
C
PROTRADE & WOODLINE cc. 2000
13
12
11

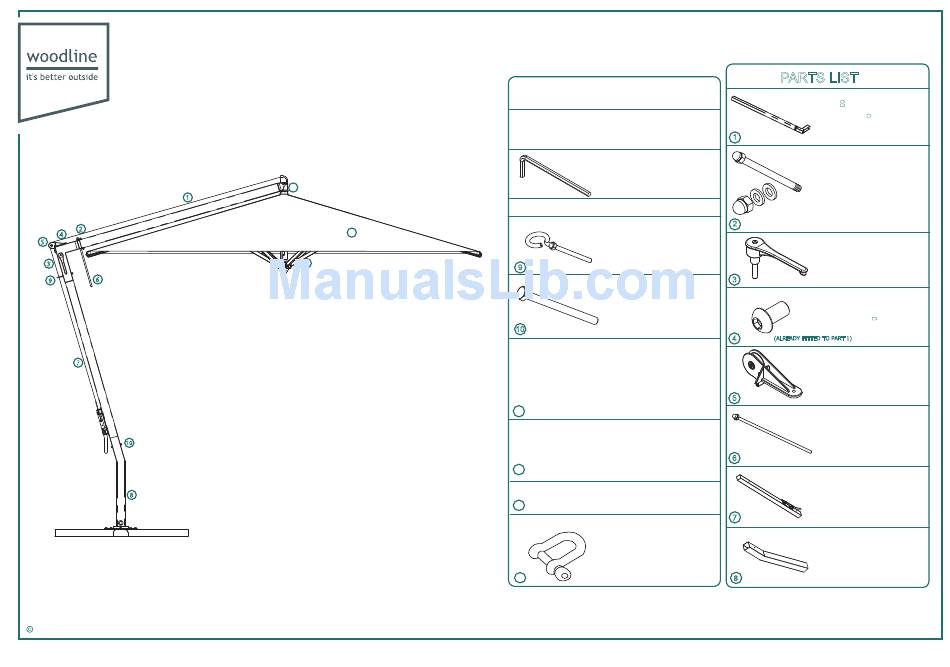

REQUIRED TOOLS LIST
2 x ADJUSTABLE
CRESCENT WRENCH
(NOT SUPPLIED)
1 x ALLEN KEY
(INCLUDED)
Item Code: 04022
PARTS LIST
1 x CABLE GUIDE
1 x DOME NUT M5
2 x WASHERS M5
9
Item Code: 09157
1 x BOLT M6
1 x DOME NUT M6
2 x WASHERS M6
10
Item Code: 09144
UMBRELLA CANOPY FRAME
(SPOKES & STRUTS)
Item Code: SSPIFR-R30-W
Item Code: SSPIFR-R32-W
Item Code: SSPIFR-R35-W
Item Code: SSPIFR-S25-W
11
Item Code: SSPIFR-S30-W
UNBRELLA CANOPY
FABRIC
Item Code: SSPICAN-R30
Item Code: SSPICAN-R32
Item Code: SSPICAN-R35
Item Code: SSPICAN-S25
12
Item Code: SSPICAN-
HEADFITTING
13
Item Code: 09153
D-Ring Safety Fixture
14
Item Code: SSDR1
PARTS LIST
1 x BOOM WITH
ELBOW/PIVOT
1
Item Code: 13323
1 x M8 STUD
2 x M8 DOME NUTS
2 x M8 WASHERS
2
Item Code: 14239
1 x TENSION
HANDLE
3
Item Code: 14236
1 x BUTTON
HEAD SCREW
4
(ALREADY FITTED TO PART 1) Item Code: 12689
1 x CABLE PULLY
5
Item Code: 09142
1 x TILT HANDLE
6
Item Code: 09131
1 x WOOD MAST
INSERT
Wood Mast Item Code: 13322-W
7
Latch Item Code: 13322-WL
1 x BASE SLEEVE
8
Item Code: 09019
1 / 9
