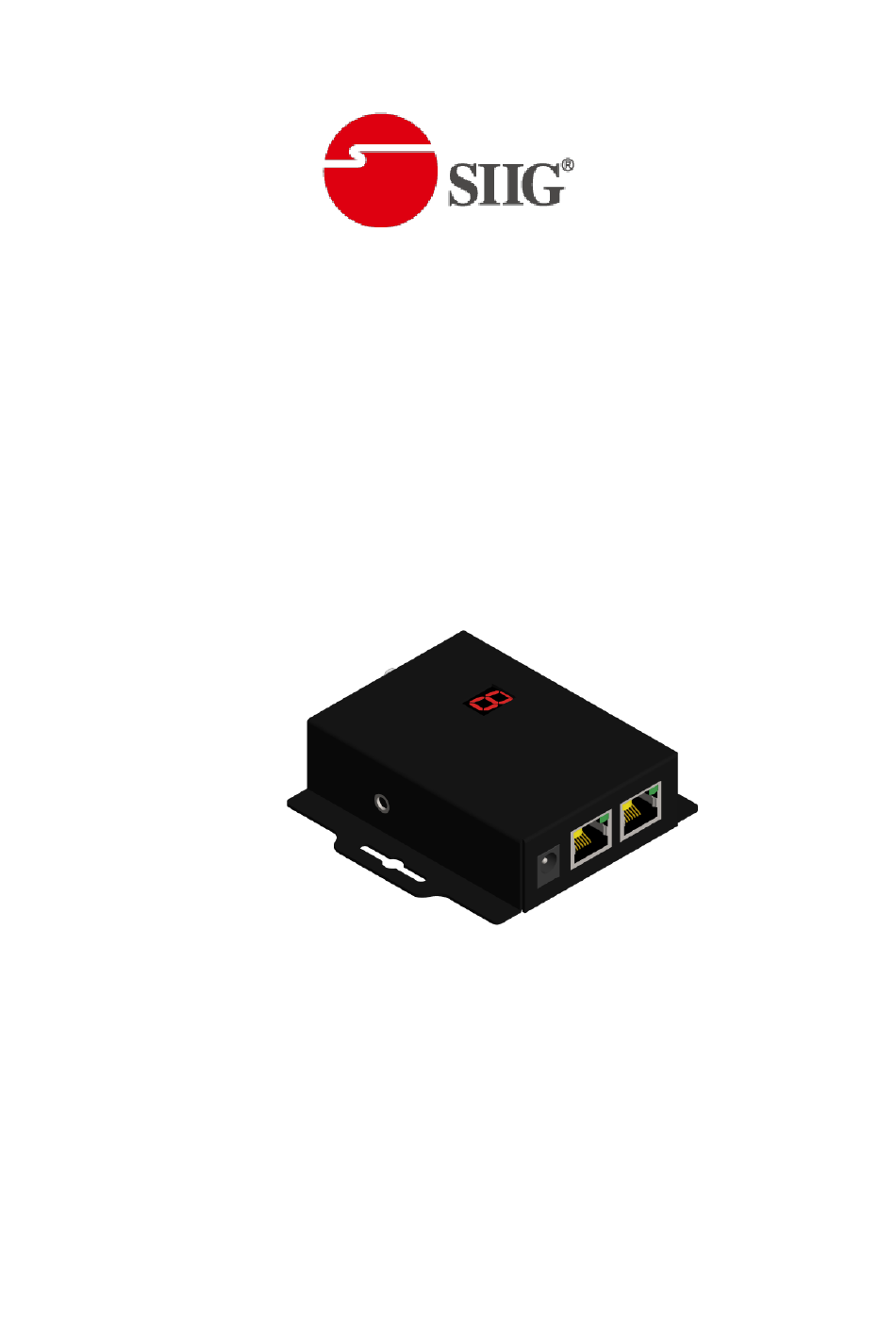

- Page 1 HDMI & Full 3D support over CAT5 Receiver with IR Pass-through P/N: AV-GM07H3-S1...
-
Page 2: Safety And Notice
Pass-through has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AV-GM07H3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Introduction The AV-GM07H3-S1 HDMI & Full 3D support over CAT5 Receiver with IR Pass-through provides the most ideal solution by which the high definition video and high quality audio can be transmitted over a distance via Cat-5/5e/6 cable. The AV-GM07H3-S1 can work with MA-5144/88KC matrix in the HDMI over CAT5 products and allow you to extend HDMI compliant displays almost anywhere.
-
Page 4: Specifications & Package Contents
Specifications & Package Contents Model Name AV-GM07H3-S1 Technical Role of usage Receiver [RX] HDMI compliance HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gpbs] Video support 480i / 480p / 720p / 1080i / 1080p60 Audio support Surround sound (up to 7.1ch) or stereo digital audio... -
Page 5: Panel Descriptions
Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Front Panel Rear Panel INPUT SELECT: Push button for switching input source channel in sequential order Signal Level 0-7: Adjust the 8-level equalization control to the received HDMI signals. The HDMI signal level varies from 0 (strongest) to 7 (weakest) for respective transmission length from longest possible range to short distance. -
Page 6: Ir Pass-Through
IR PASS-THROUGH 1-8: IR blaster connected here can only transmit IR command signals from the remote receivers that are setting at respective input channel from 1 to 8. AV-GM07H3-S1 IR RECEIVER: IR receiver connected here can receive all IR command signals from the IR remote controls of MA-5188 and all other HDMI source devices. -
Page 7: Connection Diagram
CONNECTION DIAGRAM ~ 6 ~... - Page 8 #1] generally can produce better transmission performance among all HDMI inputs. 9. The AV-GM07H3-S1 has been tested extensively and found that it doesn’t require external power supply. If in rare situation you find it cannot work with the MA-5188, please use any +5V power adapter to plug in the power jack and see if it can work.
-
Page 9: Warranty
WARRANTY The SELLER warrants the AV-GM07H3-S1 HDMI & Full 3D support over CAT5 Receiver with IR Pass-through free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good...
