Full HD 1080P HDMI Wireless
Transmitter and Receiver Kit
Quick Installation Guide

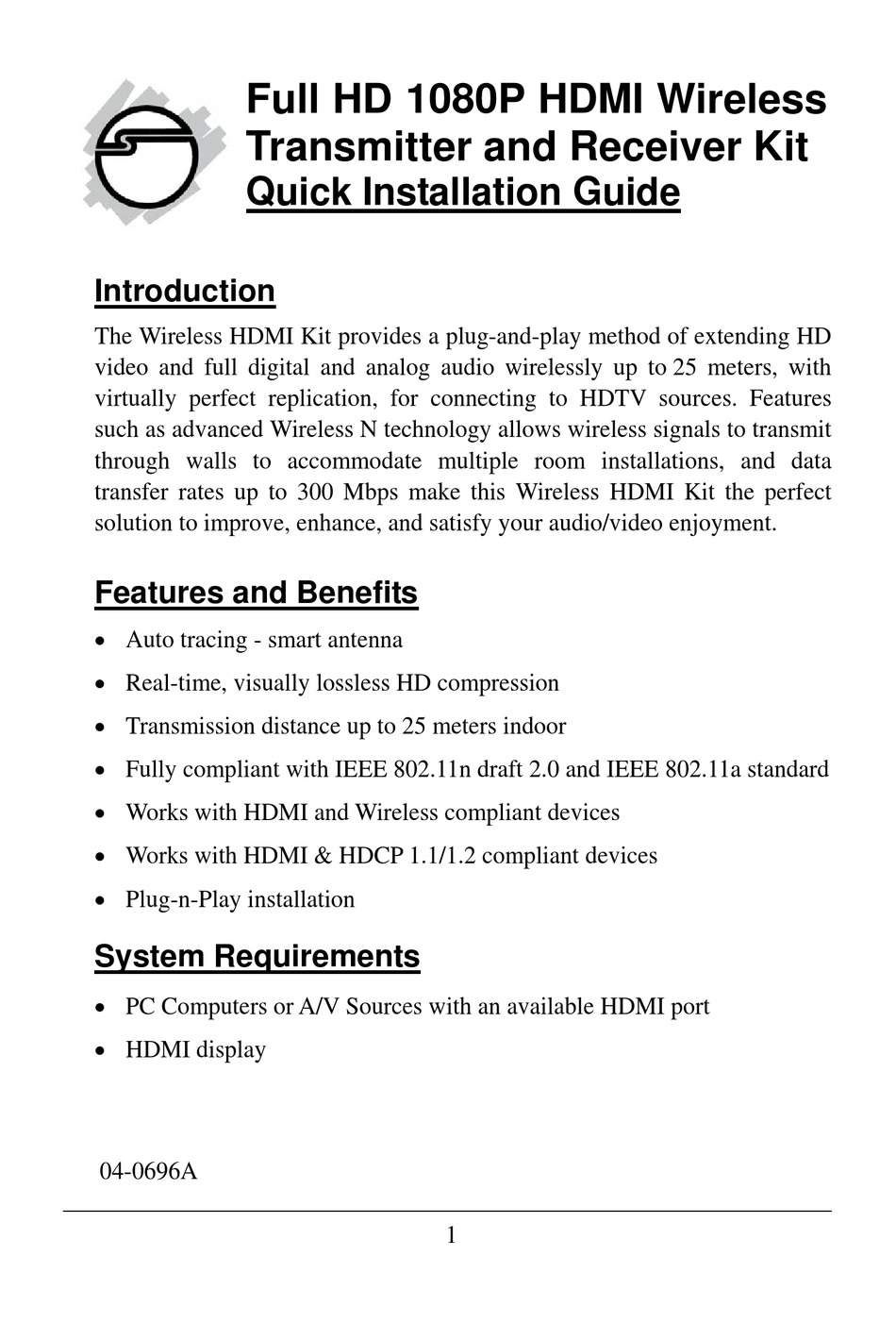

Introduction
The Wireless HDMI Kit provides a plug-and-play method of extending HD
video and full digital and analog audio wirelessly up to 25 meters, with
virtually perfect replication, for connecting to HDTV sources. Features
such as advanced Wireless N technology allows wireless signals to transmit
through walls to accommodate multiple room installations, and data
transfer rates up to 300 Mbps make this Wireless HDMI Kit the perfect
solution to improve, enhance, and satisfy your audio/video enjoyment.
Features and Benefits
Auto tracing - smart antenna
Real-time, visually lossless HD compression
Transmission distance up to 25 meters indoor
Fully compliant with IEEE 802.11n draft 2.0 and IEEE 802.11a standard
Works with HDMI and Wireless compliant devices
Works with HDMI & HDCP 1.1/1.2 compliant devices
Plug-n-Play installation
System Requirements
PC Computers or A/V Sources with an available HDMI port
HDMI display
04-0696A
1
Advertisement
Table of Contents
Summary of Contents for SIIG Full HD 1080P HDMI Wireless Transmitter and Receiver Kit
- Page 1 Full HD 1080P HDMI Wireless Transmitter and Receiver Kit Quick Installation Guide Introduction The Wireless HDMI Kit provides a plug-and-play method of extending HD video and full digital and analog audio wirelessly up to 25 meters, with virtually perfect replication, for connecting to HDTV sources. Features such as advanced Wireless N technology allows wireless signals to transmit through walls to accommodate multiple room installations, and data transfer rates up to 300 Mbps make this Wireless HDMI Kit the perfect...
-
Page 2: Package Contents
Package Contents HDMI Transmitter (TX) HDMI Receiver (RX) USB DC 5V Power Supply IR emitter cable IR receiver cable HDMI Cable Quick installation guide Specifications Supports 1080P/25Hz non-compressing image Transmission speed: 300Mbps ... - Page 3 Layout Figure 1: Transmitter (TX) Active LED Indicator Power LED Indicator USB Power Connector HDMI Input IR emitter connector Reset Button Power Button...
- Page 4 Figure 2: Receiver (RX) IR Sensor Active LED Indicator Power Light LED Indicator USB Power Connector HDMI Output IR receiver connector Reset Button Power Button...
- Page 5 Figure 3: IR Emitter Figure 4: IR Receiver Application Installation 1. Connect your HDMI source to the Wireless transmitter (TX). 2. Connect the IR emitter cable to the Wireless transmitter and point the emitter directly to the IR of the HDMI source. Please ensure that you place the IR emitter in close proximity to the display device and the IR Sensor in an area accessible to the remote control’s infrared signal.
- Page 6 Blank Page...
- Page 7 SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton. You are responsible for the cost of shipping the product to SIIG at the following address: SIIG, Inc.
- Page 8 Full HD 1080P HDMI Wireless Transmitter and Receiver Kit is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of their respective companies.
